Integrated Aseptic Vial Washing, Filling, and Sealing Line (2-30ml)

12-Meter Continuous for High-Value Injectables and Biological Preparations

Product Overview

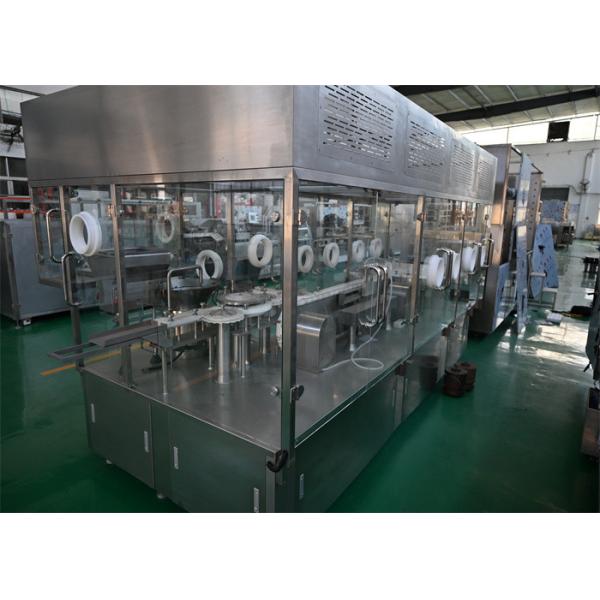

In the highly regulated production of parenteral vaccines, and advanced biological injectables, breaking the sterility chain between container preparation and liquid filling is the greatest risk to patient safety. The Lingyao LYQCL + LYASMR + LYKGF Integrated Vial Processing Line is a massive, heavy-duty automation architecture engineered to seamlessly execute ultrasonic washing, thermal depyrogenation, micro-dosing, and hermetic sealing for 2ml to 30ml tubular and molded glass vials without human intervention.

Stretching up to 13.2 meters and capable of sustained outputs ranging from 6,000 to 26,000 Vials Per Hour (VPH), this formidable production line completely unifies the primary packaging process. Governed entirely by a premium Schneider Electric control architecture, it guarantees uncompromised Zone A (ISO Class 5) aseptic conditions and an elite dosing precision of ≤ ±0.5%, securing your facility's compliance with strict cGMP and FDA mandates.

The Cause: Fragmented Processing, Particulate Risk, and Micro-Dosing Drift

Scaling up injectable manufacturing utilizing disconnected standalone machines introduces critical compliance and financial vulnerabilities:

1. Airborne Particulate Exposure: Transferring washed and sterilized vials from a depyrogenation oven to a separate filling machine exposes the open containers to ambient cleanroom air. Even microscopic particulate contamination during this transit guarantees catastrophic batch rejection and regulatory penalties.

2. Micro-Dosing Volumetric Drift: Dispensing 2ml of high-value active pharmaceutical ingredients (APIs) requires extreme mechanical stability. Standard pneumatic pumps suffer from volumetric drift; a 1.5% error on a 2ml vaccine vial causes massive financial giveaway and severely impacts clinical dosage efficacy.

3. Synchronization Failures: When high-speed washers, ovens, and cappers operate on disparate control systems, line blockages occur rapidly. This lack of communication causes vial breakages, destroys overall equipment effectiveness (OEE), and inflates utility costs.

The Solution: Unbroken Mechanical Linkage and Servo-Driven Precision

The Lingyao engineering team resolved these aseptic vulnerabilities by unifying the entire primary packaging process into a single, closed-loop mechanical continuum.

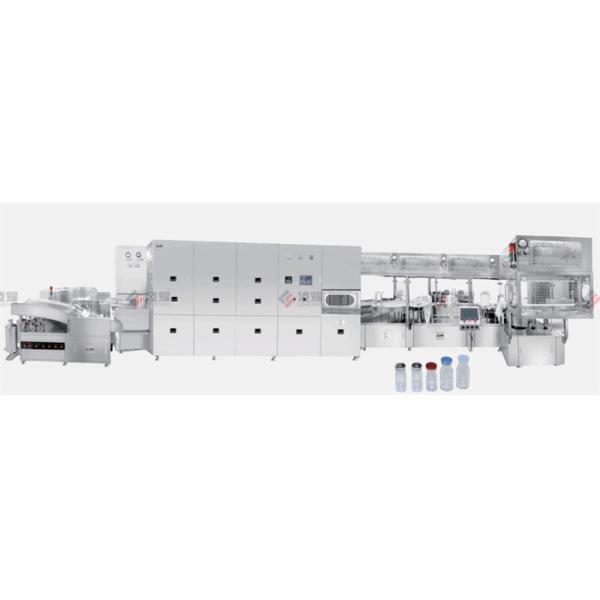

To eliminate particulate exposure and ensure absolute sterility, the process begins with an advanced Ultrasonic Washing Station (WFI / Purified Water Matrix), seamlessly feeding into a High-Temperature Depyrogenation Tunnel. The vials transition immediately from the cooling zone into the Class 100 Laminar Airflow (LAF) protected filling zone. This unbroken physical linkage completely prevents ambient air exposure.

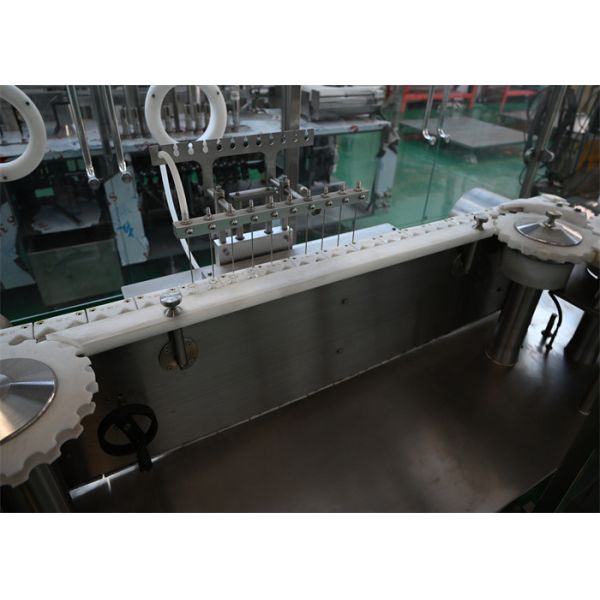

To conquer micro-dosing drift, the filling station is powered by advanced, servo-driven Ceramic or 316L Stainless Steel Piston Pumps. This architecture locks the volumetric tolerance to a strict ≤ ±0.5%, ensuring absolute API conservation. The entire 12-meter sequence—from washing to the multi-blade aluminum crimping station—is synchronized via a centralized Schneider PLC and Frequency Converter Network, guaranteeing flawless mechanical harmony and a vial breakage rate of less than 0.5% at maximum velocity.

Technical Specifications

Premium Electrical Architecture

• Electrical Standard: IEC60204-1 Compliant

• PLC & HMI: Schneider Electric (France)

• Frequency Converters & Contactors: Schneider Electric (France)

Targeted Advanced Healthcare Applications

• Sterile Injectables & Biologics: Uncompromised, continuous aseptic processing for liquid vaccines, monoclonal antibodies, and critical care biological preparations.

• Lyophilized Powder Prep: Perfectly synchronizes half-plugging operations, preparing the 2-30ml vials for immediate transfer into industrial freeze-drying units.

• High-Volume CDMO Facilities: Engineered for maximum OEE, allowing contract manufacturers to scale up life-saving production with absolute regulatory confidence.

Turnkey Global Deployment & Lifecycle Engineering

Deploying a 13-meter integrated aseptic processing line requires a manufacturing partner with unparalleled international execution capabilities. Built through our advanced TachoCraft Thailand manufacturing base, Lingyao provides a complete Turnkey Solution, eliminating third-party communication breakdowns.

We accompany your capital investment with comprehensive IQ/OQ/PQ validation dossiers, FAT/SAT execution, and FDA-compliant material traceability. Our elite global engineering team deploys directly to your facility, offering 24/7 Service Response, complete site installation, and hands-on operational training. Whether navigating strict SABER/SASO customs clearances in the Middle East or satisfying demanding compliance audits in Africa, Lingyao guarantees your critical production line is validated, operational, and supported for its entire lifecycle through our comprehensive Annual Maintenance Contracts (AMC).
