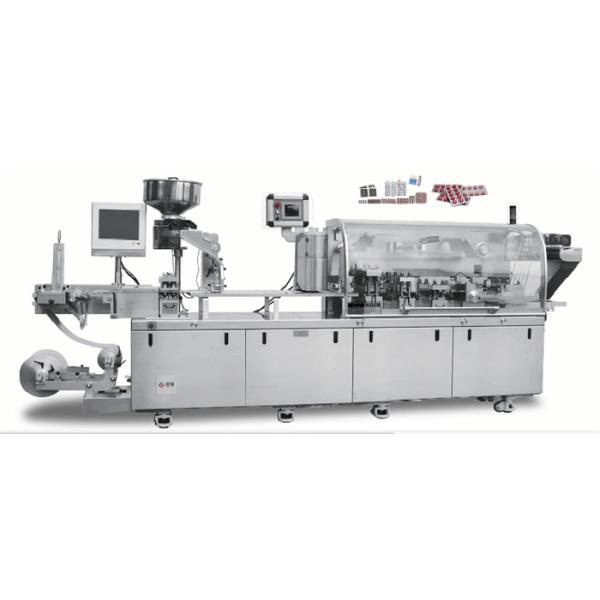

High-Speed Smart Blister Packaging Machine (Alu/Alu & Alu/PVC)

Servo-Driven Precision and Dual-Heat Sealing for Solid Dosage Forms and Moisture-Sensitive APIs

Product Overview

In the high-volume manufacturing of solid dosage forms (tablets, capsules, softgels) and moisture-sensitive nutraceuticals, primary blister packaging must balance extreme operational velocity with uncompromising barrier integrity. The Lingyao High-Speed Smart Blister Packaging Machine is a heavy-duty, continuous-motion thermoforming and cold-forming platform engineered to process both Alu/PVC and Alu/Alu formats.

Operating at a blistering stroke speed of up to 200 punches per minute for Alu/PVC and 150 punches per minute for Alu/Alu, this cGMP-compliant platform maximizes facility output. By integrating advanced servo-driven indexing, patented uniform heat sealing, and an IIoT-enabled smart control architecture, it ensures airtight moisture and oxygen barriers, safeguarding the efficacy of premium pharmaceutical and nutraceutical formulations.

The Cause: Barrier Compromise, Thermal Degradation, and Format Bottlenecks

Operating legacy blister machines at high speeds exposes production lines to severe quality and efficiency risks:

1. Cold-Forming Pinholes (Alu/Alu): When forming Alu/Alu blisters for highly sensitive APIs, outdated mechanical cams often apply uneven stretching forces. This creates microscopic pinholes (micro-leaks) in the aluminum foil, completely destroying the blister's moisture and light barrier and leading to massive batch recalls.

2. Thermal API Degradation: Standard heat-sealing stations suffer from temperature fluctuations. If the sealing roller spikes even a few degrees above the threshold, heat transfers through the foil and degrades thermally sensitive active ingredients (like probiotic strains or softgel matrices).

3. Lengthy Format Changeovers: Switching a machine from a PVC thermoforming profile to an Alu/Alu cold-forming profile traditionally takes hours of mechanical realignment, paralyzing high-mix, agile manufacturing facilities.

The Solution: Servo Precision and Smart Dual-Heat Regulation

The Lingyao engineering team resolved these critical solid-dose packaging bottlenecks through advanced servo-mechanics and intelligent thermal control.

To eliminate micro-leaks and ensure perfect blister geometry, the machine utilizes an Advanced Servo-Driven Indexing System. This provides ultra-precise, vibration-free web advancement. During Alu/Alu cold-forming, the punch applies mathematically optimized, uniform stretching pressure, ensuring 100% barrier integrity for moisture-sensitive products without tearing the foil.

To protect heat-sensitive APIs, the platform integrates Patented Dual-Heat Sealing Technology. This intelligent thermal management maintains a strict ±1°C temperature uniformity across the entire sealing matrix. It achieves a flawless, airtight seal using 25% less energy and significantly reduced dwell time, ensuring zero thermal transfer to the medication inside the pocket.

Technical Specifications

Targeted Pharmaceutical & Nutraceutical Applications

• Moisture-Sensitive: Flawless Alu/Alu cold-forming for effervescent tablets, hygroscopic APIs, and light-sensitive clinical medications requiring maximum barrier protection.

• Premium Nutraceuticals: High-speed Alu/PVC thermoforming for fish oil softgels, hard capsules, and multivitamin gummies with precise heat-control to prevent melting.

• Child-Resistant Packaging: Compatible with multi-layer barrier films and specialized peel-push lidding foils for strict international safety compliance.

Smart IIoT Integration and Global GMP Compliance

Designed specifically to serve as the backbone of scalable, future-ready packaging lines, this machine is equipped with an advanced HMI Touchscreen Control System. The smart PLC architecture tracks real-time production metrics, manages recipe storage for instantaneous format recalls, and provides intelligent alarms for material depletion or temperature deviations.

Constructed entirely from premium 304/316L stainless steel in its operating zones, the machine complies strictly with FDA and EU GMP directives. By providing comprehensive IQ/OQ/PQ validation dossiers and electronic audit trails (supporting 21 CFR Part 11 requirements), Lingyao ensures your solid-dose packaging operations are immediately ready for rigorous facility audits across the Middle East, North America, and Europe.
