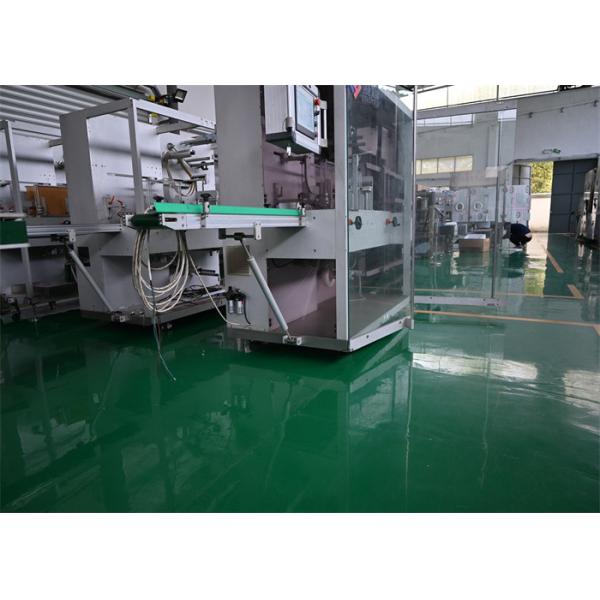

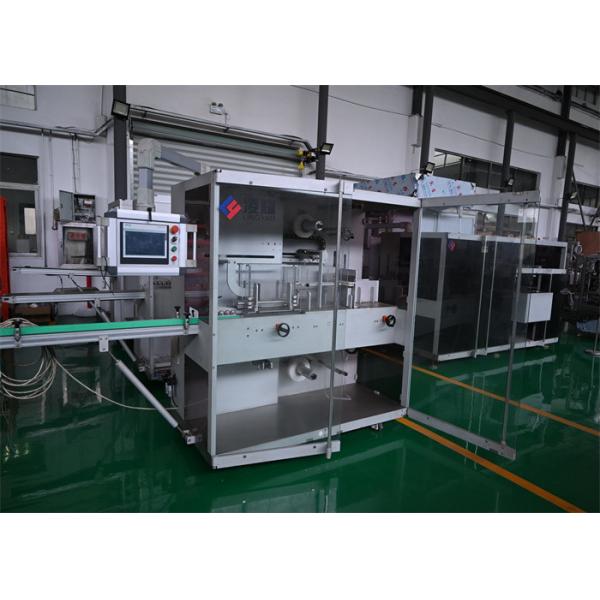

Compact Automatic PE Film Banding Machine for Medical Cartons

Cold-Stretch Tertiary Packaging for Heat-Sensitive Diagnostics and Healthcare Supplies

Product Overview

For agile manufacturing facilities managing low-to-medium volume pharmaceutical lines or diagnostic kit production, end-of-line tertiary packaging must be secure, compact, and non-destructive. The Lingyao LYKZJ-180 Compact PE Film Banding Machine is an efficient, space-saving automation unit engineered to bundle secondary medical cartons at a steady output of 8 to 15 multi-packs per minute.

Handling package matrices up to 125 x 180 x 200mm, this unit utilizes highly resilient Polyethylene (PE) elastic film. By employing cold-stretch technology rather than thermal shrinking, it securely aggregates individual boxes into tight, tamper-evident bundles without exposing sensitive medical payloads to damaging high temperatures.

The Cause: Thermal Damage and Manual Bundling Inefficiencies

When integrating end-of-line packaging for specialized healthcare products, traditional bundling methods introduce severe quality control risks:

1. Thermal Degradation: Traditional shrink-wrap tunnels subject tertiary packages to intense heat. For heat-sensitive medical products—such as rapid diagnostic reagents, biologic sample kits, or liquid gel capsules—this thermal exposure can compromise the product's efficacy before it leaves the facility.

2. Carton Deformation: Manual strapping or rigid PP banding often applies uneven, abrasive pressure to the corners of premium medical cartons, crushing the paperboard and destroying the aesthetic presentation required for pharmacy shelves.

3. Labor-Intensive Bottlenecks: Relying on operators to manually bundle and tape cartons on an 80 BPM primary line creates inconsistent multi-packs, inflates labor overhead, and slows down downstream palletization.

The Solution: Adaptive Cold-Stretch PE Tensioning

The Lingyao LYKZJ-180 eliminates these tertiary packaging liabilities through intelligent mechanical design and low-impact material handling.

To protect heat-sensitive medical supplies, the machine utilizes a pure Cold-Stretch Banding Process. The system dispenses 30-80μm PE film, mechanically stretching it around the carton matrix. The film's natural elastic memory pulls the bundle tight, requiring heat only for a micro-second seal at the film's overlap point. The internal medical products experience zero temperature increase.

To prevent carton crushing, the machine features Calibrated Tension Control. The mechanical arm applies uniform pressure across the entire surface area of the bundle, ensuring a secure, tamper-evident hold that maintains the pristine structural integrity of your primary medical packaging.

Technical Specifications

Targeted Healthcare End-of-Line Applications

• Heat-Sensitive Diagnostics: Safe, zero-heat bundling for rapid test kits, laboratory reagents, and clinical sample boxes.

• OTC: Consistent, retail-ready multi-packs for blister cartons, cough syrups, and daily vitamin supplements.

• Agile Contract Manufacturing (CDMO): Ideal for smaller, high-mix production cells requiring rapid format changeovers without the massive footprint of high-speed wrappers.

Turnkey Global Integration and Factory Compliance

Integrating an automated bander into your existing conveyor layout requires reliable engineering support. Manufactured with robust industrial standards through our versatile TachoCraft Thailand manufacturing base, the LYKZJ-180 is built for heavy-duty global deployment within strict ISO-certified facilities.

We deliver comprehensive engineering documentation to ensure seamless facility integration. Supplied with meticulous IQ/OQ/PQ validation dossiers, this system is ready for stringent regulatory audits. Our expert international engineers provide remote and on-site commissioning, drastically expediting strict SABER/SASO customs clearances across the Middle East and ensuring your end-of-line packaging operates flawlessly.
