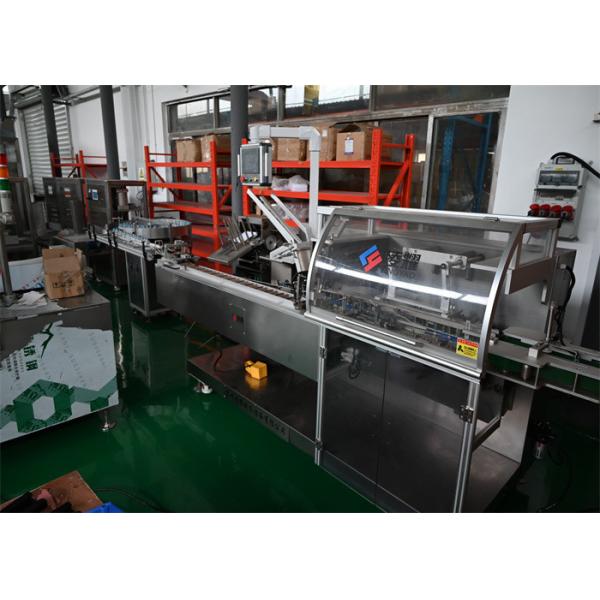

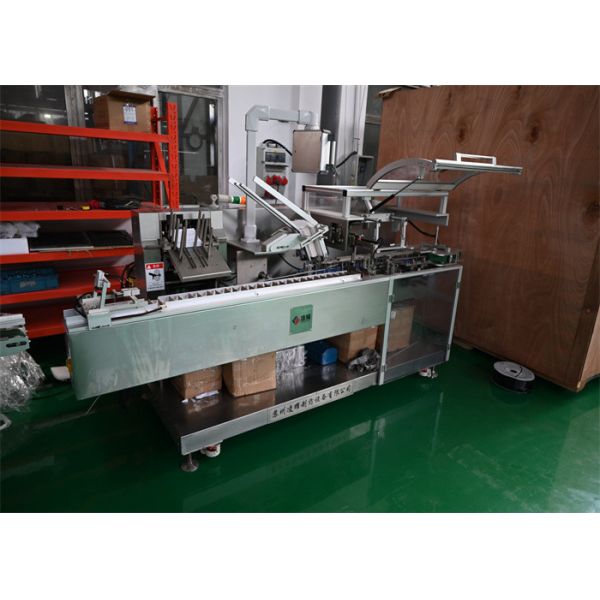

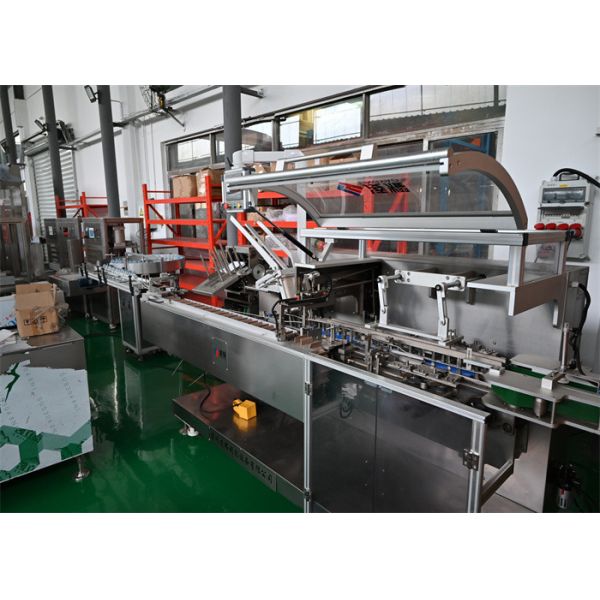

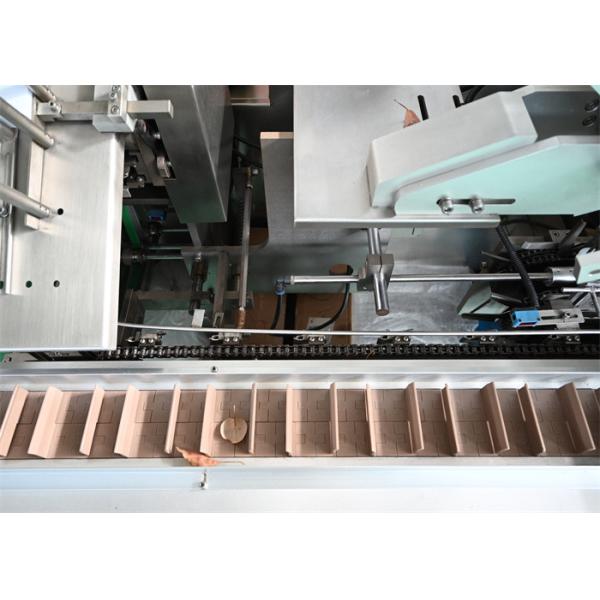

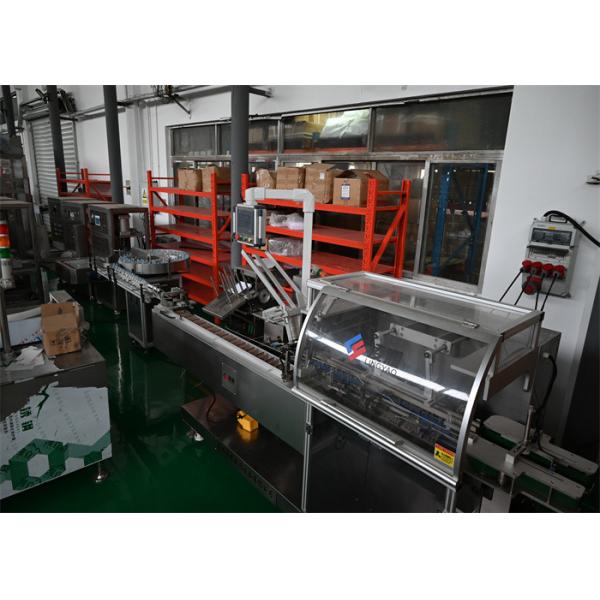

Automatic Cartoning Machine with Blister Line Integration (LYWZH-200)

Medium-to-High Speed Secondary Packaging Automation with Intelligent Defect Rejection

Product Overview

In modern, high-capacity solid dosage and device manufacturing, the seamless transition from primary packaging to retail-ready cartons is the definitive benchmark of line efficiency. The Lingyao LYWZH-200 Automatic Cartoning Machine is an advanced horizontal automation platform engineered to process specialized containers and packs at a flexible, high-speed output of 80 to 160 boxes per minute (BPM).

Governed by an intelligent central network, this heavy-duty machine fully automates leaflet folding (1 to 4 folds), carton erecting, product insertion, multi-row batch code embossing, and final secure closure. Designed to operate as a high-yield standalone unit or integrate flawlessly with upstream blister packaging machines, it delivers unmatched operational flexibility for your expanding production targets.

The Cause: Line Desynchronization and Loose Compliance Tracking

When secondary packaging lines run at velocities up to 160 BPM, minor manual intervention errors or mechanical mismatches create catastrophic operational bottlenecks:

1. Velocity Desynchronization: Connecting an upstream primary packing unit (such as an Alu/PVC blister machine) to a legacy horizontal cartoner without smart buffer handshakes often causes massive accumulation jams, halting the entire line and eroding OEE.

2. The Missing Leaflet Crisis: Legally mandated instructional manuals or multi-fold product inserts occasionally fail to deploy from traditional magazines. If a single carton escapes the facility missing its required tracking documentation or contains an incomplete product set, it triggers severe regulatory penalties and costly batch recalls.

The Solution: Synchronized Mechanical Handshakes and Multi-Stage Vision Interlocks

The Lingyao LYWZH-200 completely overcomes secondary packaging friction through synchronized mechanical engineering and a comprehensive sensor array. To conquer velocity desynchronization, the cartoner features a direct linkage system that establishes a fully automated, synchronized production line with upstream blister packers, managing high-volume product flows without manual handling overhead.

To secure absolute compliance, the system operates under a strict "No Product, No Carton" and "No Leaflet, No Insertion" matrix governed by a Premium European PLC architecture. High-precision photoelectric sensors track the components in real-time. If an incoming slot lacks a product sheet or an unfolded manual fails to position correctly, the system instantly logs the fault. Instead of halting the 160 BPM line velocity, the machine isolates the incomplete unit and automatically ejects the defective carton post-sealing into a designated rejection bin, ensuring 100% finished batch integrity.

Technical Specifications

Application Scenarios

• Advanced Life Sciences: High-speed secondary cartoning for aluminum-plastic blister packs, diagnostic kits, and sensitive multi-component Healthcare solutions.

• Premium Cosmeceuticals: Pristine, elegant packaging for luxury skincare bottles, rectangular product cases, and delicate glass containers requiring high brand appeal.

• Nutraceutical Formulations: High-efficiency, uniform boxed presentation for dietary supplement sachets, tubes, and loose multi-packs.

Fast Tool-Less Changeovers & Global Validation Support

Managing a multi-product manufacturing center requires equipment that can adapt to changing market demands without crippling your daily production schedule. The LYWZH-200 horizontal layout features a fast-changeover design, enabling operators to switch between minimum (55x30x15mm) and maximum (200x110x60mm) box dimensions in under 30 minutes via calibrated handwheels, tool-free adjustment clamps, and digital PLC recipe recall.

Manufactured in strict accordance with international quality assurance framework regulations (with versatile origin configurations supported via our advanced TachoCraft Thailand manufacturing base), every line is optimized for long-term climate resilience and seamless cross-border integration. We accompany your asset with rigorous engineering services, providing comprehensive IQ/OQ/PQ validation dossiers and automated batch-coding configurations. This compliance packet completely eliminates import friction, drastically expediting strict SABER/SASO customs clearances across the Middle East and satisfying demanding regulatory factory audits in expanding African and Asian markets.
