3.7V 630mAh Li-Ion Battery for Air Quality Monitors 300 Cycles
3.7V 630mAh Li-Ion Battery for Air Quality Monitors 300 Cycles
3.7V 630mAh Li-Ion Battery for Air Quality Monitors 300 Cycles
3.7V 630mAh Li-Ion Battery for Air Quality Monitors 300 Cycles
Specifications
MOQ :
100pcs
Brand Name :
OiD
Model Number :
OiD692536N630
Certification :
Compliant with GB/T 18287-2013, IEC/EN61960, and UL1642 safety standards
Place of Origin :
China
Price :
$0.5 ~ $100.0 / pcs
Delivery Time :
3 ~ 7 days for storage
Payment Terms :
TT,L/C,Western Union
Name :
Lithium Ion Battery
Battery Type :
3.7V, 630mAh Rechargeable
ODM :
Free custom design for packs
High Energy Density :
250-300Wh/kg
Superior Cold Weather Performance :
Reliable in Extreme Cold (-20°C to 60°C)
Cycle Life :
300+ cycles
Charging/ Discharging :
1C/ 1C
Flexible Form Factor :
Thin, Customizable Pouch Design Lithium Ion Battery
Description

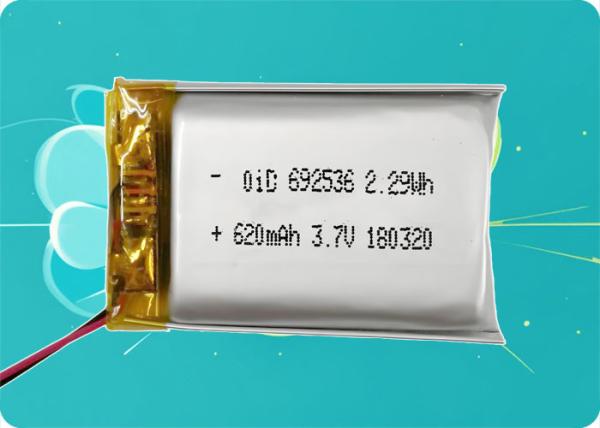

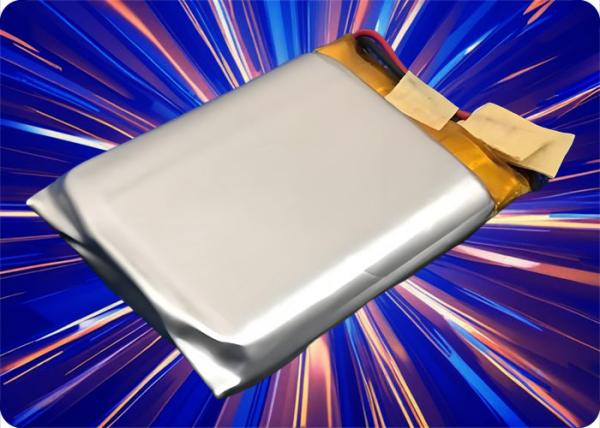

OiD692536N630 3.7V 630mAh 1C Discharge 300 Cycles Li-Ion Battery For Air Quality Monitor

Product Name

OiD692536N630 Li-ion Battery

Advantages

  • Compact and lightweight design (13g)
  • High energy density for extended usage
  • Built-in protection circuit for enhanced safety

Specifications

Item

Parameter

Model

OiD692536N630

Nominal Voltage

3.7V

Typical Capacity

630mAh (0.2C discharge)

Minimal Capacity

620mAh (0.2C discharge)

Charging Voltage

4.2V

Discharge Cut-off

3.0V

Standard Charging

0.2C / 4.2V

Max Charging Current

1.0C / 4.2V (45°C max)

Standard Discharging

0.5C / 3.0V

Max Discharging Current

1.0C / 3.0V (60°C max)

Weight

Approx. 13g

Impedance

≤180mΩ

Cycle Life

Condition

Performance

Charge/Discharge Cycles (0.2C)

≥300 cycles (80% capacity retention)

Retention Capacity (28 days, 20±5°C)

≥85% capacity retention

Discharge Curve

3.7V 630mAh Li-Ion Battery for Air Quality Monitors 300 Cycles

Operating Temperature Range

Condition

Temperature Range

Max Current

Charging

0°C to 45°C

1.0C (25°C–45°C)

0.5C (15°C–25°C)

0.2C (0°C–15°C)

Discharging

-10°C to 60°C

1.0C (15°C–60°C)

0.2C (-10°C–15°C)

Storage (50% SOC)

-10°C to 25°C (12 months, ≥85%)

Recommended: 20±5°C

-10°C to 45°C (6 months, ≥85%)

-10°C to 55°C (1 month, ≥90%)

Certifications

Compliant with GB/T 18287-2013, IEC/EN61960, and UL1642 safety standards.

Key Features

  • Air quality monitor Li-ion Battery: Optimized for low-power environmental sensors.
  • Overcharge/over-discharge/short-circuit protection.
  • NTC thermistor for temperature monitoring (optional).
  • RoHS-compliant materials.

Applications

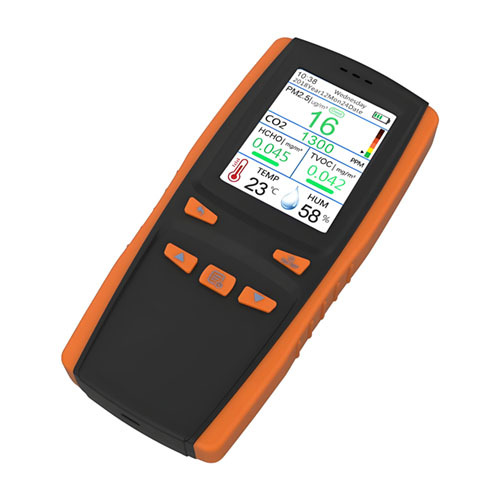

  • Air quality monitors
  • Portable environmental sensors
  • IoT devices

3.7V 630mAh Li-Ion Battery for Air Quality Monitors 300 Cycles

Usage Warnings & Precautions

  • Avoid short-circuiting terminals.
  • Do not charge/discharge beyond specified temperature limits.
  • Use only compatible chargers (4.2V max).
  • Discontinue use if swelling, leakage, or overheating occurs.

Storage Guidelines

  • Store at 20±5°C with 50% SOC for long-term storage.
  • Recharge to 60% capacity every 3 months if unused.

Warranty & Disclaimer

  • 12-month warranty from the shipment date.
  • Misuse or unauthorized modifications void warranty.
