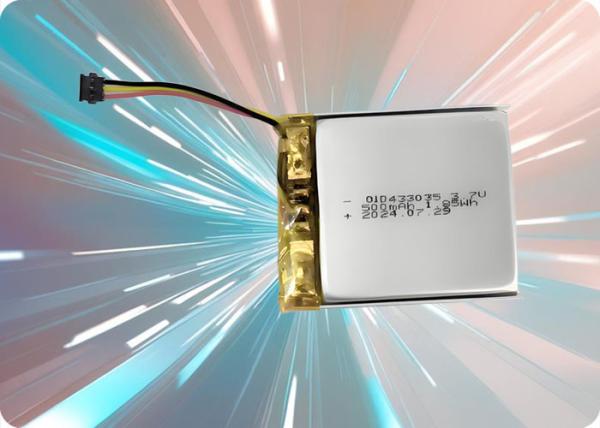

3.7V 510mAh Lithium Polymer Battery with 500 Cycles and 1.5C Discharge
3.7V 510mAh Lithium Polymer Battery with 500 Cycles and 1.5C Discharge
3.7V 510mAh Lithium Polymer Battery with 500 Cycles and 1.5C Discharge
3.7V 510mAh Lithium Polymer Battery with 500 Cycles and 1.5C Discharge
Specifications
Brand Name :
OiD
Model Number :
OiD433035-510
Certification :
Compliant with GB/T 18287-2013, IEC/EN61960, and UL1642 standards
Place of Origin :
China
MOQ :
100pcs
Price :
$0.5 ~ $100.0 / pcs
Delivery Time :
3 ~ 7 days for storage
Payment Terms :
TT,L/C,Western Union
Name :
Lithium Ion Battery
Battery Type :
3.7V, 510mAh Rechargeable
ODM :
Free custom design for packs
High Energy Density :
250-300Wh/kg
Superior Cold Weather Performance :
Reliable in Extreme Cold (-20°C to 60°C)
Cycle Life :
500+ cycles
Charging/ Discharging :
1C/ 1.5C
Flexible Form Factor :
Thin, Customizable Pouch Design Lithium Ion Battery
Description

Product Name:

OiD433035-510 Lithium Polymer Battery

Advantages:

  • Compact and lightweight design
  • High energy density for extended usage
  • Long cycle life with reliable performance
  • Safe and stable operation under various conditions

Specifications:

Parameter

Value

Nominal Voltage

3.7V

Capacity

510mAh (0.2C discharge)

Charging Voltage

4.2V

Discharge Cut-off Voltage

3.0V

Standard Charging Current

0.2C

Max Charging Current

1.0C (20°C to 45°C)

0.5C (10°C to 20°C)

0.2C (0°C to 10°C)

Standard Discharge Current

0.2C

Max Discharge Current

1.5C (25°C to 60°C)

0.5C (0°C to 25°C)

0.2C (-20°C to 0°C)

Battery Impedance

≤220mΩ

Weight

Approx. 8.5g

Dimensions

36.5mm (L) x 30.0mm (W) x 4.35mm (T)

Cycle Life:

Condition

Performance

Charge/Discharge Cycles

500 cycles at 0.2C

Capacity Retention

≥80% after 500 cycles

Discharge Curve:

3.7V 510mAh Lithium Polymer Battery with 500 Cycles and 1.5C Discharge)

Operating Temperature Range:

Condition

Temperature Range

Charging

0°C to 45°C

Discharging

-20°C to 60°C

Storage (50% SOC)

-10°C to 25°C (12 months, ≥85% capacity)

-10°C to 45°C (6 months, ≥85% capacity)

-10°C to 55°C (1 month, ≥90% capacity)

Certifications:

  • Compliant with GB/T 18287-2013, IEC/EN61960, and UL1642 standards.

Key Features:

  • High capacity and energy efficiency
  • Built-in protection circuit for overcharge, over-discharge, and short-circuit protection
  • Low self-discharge rate for long storage life
  • Environmentally friendly and RoHS compliant

Applications:

  • Portable electronic devices
  • Medical equipment
  • IoT devices
  • Wearable technology
  • Backup power systems

3.7V 510mAh Lithium Polymer Battery with 500 Cycles and 1.5C Discharge

Usage Warnings & Precautions:

  • Use only with the specified charger.
  • Avoid short-circuiting the battery terminals.
  • Do not expose the battery to high temperatures or fire.
  • Discontinue use if the battery shows signs of swelling, leakage, or damage.
  • Keep away from children and pets.

Storage Guidelines:

  • Store the battery at 20±5°C for optimal performance.
  • Maintain a charge level of 50% for long-term storage.
  • Recharge the battery every 3 months if not in use.

Warranty & Disclaimer:

  • 12-month warranty from the date of shipment.
  • The warranty does not cover damage caused by improper use, mishandling, or unauthorized modifications.
  • Always follow the manufacturer’s guidelines for safe usage.
