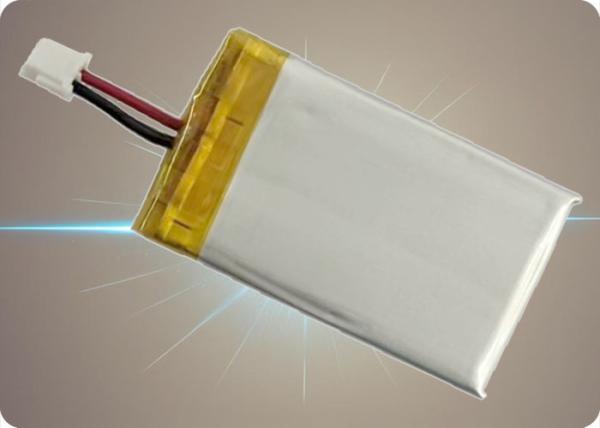

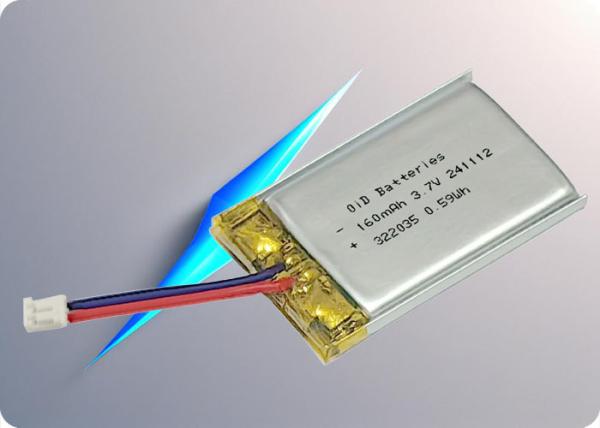

3.7V 160mAh Lithium Polymer Battery with 300 Cycles and 1C Discharge
3.7V 160mAh Lithium Polymer Battery with 300 Cycles and 1C Discharge
3.7V 160mAh Lithium Polymer Battery with 300 Cycles and 1C Discharge
3.7V 160mAh Lithium Polymer Battery with 300 Cycles and 1C Discharge
Specifications
Brand Name :
OiD
Model Number :
OiD322035C-160
Certification :
Meets GB/T 18287-2013, IEC/EN61960, and UL1642 standards
Place of Origin :
China
MOQ :
100pcs
Price :
$0.5 ~ $100.0 / pcs
Delivery Time :
3 ~ 7 days for storage
Payment Terms :
TT,L/C,Western Union
Name :
Lithium Ion Battery
Battery Type :
3.7V, 160mAh Rechargeable
ODM :
Free custom design for packs
High Energy Density :
250-300Wh/kg
Superior Cold Weather Performance :
Reliable in Extreme Cold (-20°C to 60°C)
Cycle Life :
300+ cycles
Charging/ Discharging :
1C/ 1C
Flexible Form Factor :
Thin, Customizable Pouch Design Lithium Ion Battery
Description

Product Name:
OiD322035C-160 Lithium Polymer Battery

Advantages:

  • High energy density and lightweight design
  • Stable performance across a wide temperature range
  • Long cycle life with reliable safety features

Specifications:

Parameter

Value

Nominal Voltage

3.7V

Minimum Capacity

150mAh (0.2C discharge)

Typical Capacity

160mAh (0.2C discharge)

Charging Voltage

4.2V

Discharge Cut-off Voltage

3.0V

Standard Charging

0.2C/4.2V

Max Charging Current

1.0C/4.2V (20°C~45°C)

Standard Discharging

0.5C/3.0V

Max Discharging Current

1.0C/3.0V (25°C~55°C)

Weight

Approx. 3.7g

Shipment Voltage

3.90±0.05V

Battery Impedance

≤320mΩ

Terminal Type

JST ZHR-2P / JCTC 11501H00-2P-HF

Cycle Life:

Condition

Performance

Charge/Discharge Cycles

300 cycles at 0.2C, 23±2°C

Capacity Retention

≥85% after 300 cycles

Discharge Curve:
3.7V 160mAh Lithium Polymer Battery with 300 Cycles and 1C Discharge

Operating Temperature Range:

Condition

Temperature Range

Charging

0°C ~ 45°C

Discharging

-20°C ~ 60°C

Storage (50% SOC)

-10°C ~ 25°C (12 months, ≥85%)

Storage (50% SOC)

-10°C ~ 45°C (6 months, ≥85%)

Storage (50% SOC)

-10°C ~ 55°C (1 month, ≥90%)

Certifications:

  • RoHS Compliant
  • CE Certified

Key Features:

  • Overcharge, over-discharge, and short-circuit protection
  • High-temperature and low-temperature performance
  • Compact and lightweight design

Applications:

  • Wearable devices
  • IoT devices
  • Medical devices
  • Portable electronics

3.7V 160mAh Lithium Polymer Battery with 300 Cycles and 1C Discharge

Usage Warnings & Precautions:

  • Use only the original charger to avoid damage.
  • Avoid short-circuiting the battery terminals.
  • Do not expose the battery to high temperatures or fire.
  • Stop using the battery if it shows signs of leakage, swelling, or damage.

Storage Guidelines:

  • Store the battery at 20±5°C for optimal performance.
  • Charge the battery to 60% capacity if unused for more than 3 months.
  • Keep the battery in a dry and ventilated place.

Warranty & Disclaimer:

  • 12-month warranty from the date of shipment.
  • The manufacturer is not responsible for accidents caused by improper use or handling.
