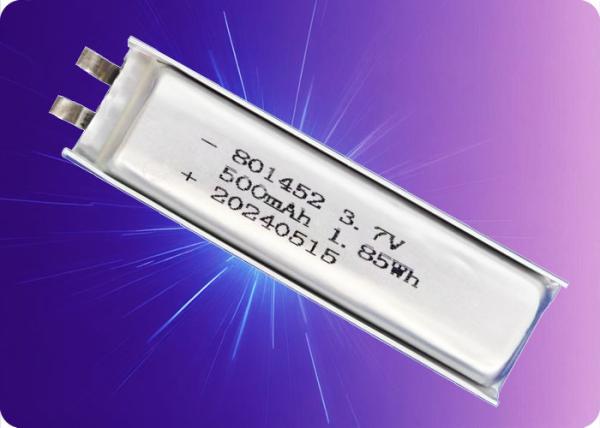

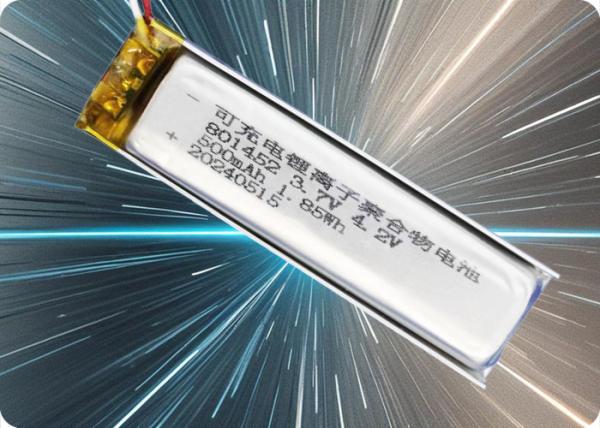

3.7V 515mAh Lithium Polymer Battery 500 Cycles 1C Discharge
3.7V 515mAh Lithium Polymer Battery 500 Cycles 1C Discharge
3.7V 515mAh Lithium Polymer Battery 500 Cycles 1C Discharge
3.7V 515mAh Lithium Polymer Battery 500 Cycles 1C Discharge
Specifications
Brand Name :
OiD
Model Number :
OiD801452-515
Certification :
Complies with GB/T 18287-2013, IEC/EN61960, and UL1642 standards.
Place of Origin :
China
MOQ :
100pcs
Price :
$0.5 ~ $100.0 / pcs
Delivery Time :
3 ~ 7 days for storage
Payment Terms :
TT,L/C,Western Union
Name :
Lithium Ion Battery
Battery Type :
3.7V, 515mAh Rechargeable
ODM :
Free custom design for packs
Superior Cold Weather Performance :
Reliable in Extreme Cold (-20°C to 60°C)
Cycle Life :
500+ cycles
Charging/ Discharging :
1C/ 1C
High Energy Density :
250-300Wh/kg
Flexible Form Factor :
Thin, Customizable Pouch Design Lithium Ion Battery
Description

Product Name:

OiD801452-515 Lithium Polymer Battery


Advantages:

  • High energy density and lightweight design
  • Long cycle life with up to 500 cycles
  • Safe and reliable with built-in protection circuits
  • Fast charging capability (up to 1.5C)
  • Wide operating temperature range

Specifications:

Parameter

Value

Model

OiD801452-515

Nominal Voltage

3.7V

Minimum Capacity

500mAh (0.2C discharge)

Typical Capacity

515mAh (0.2C discharge)

Charging Limit Voltage

4.2V

Discharge Cut-off Voltage

2.7V

Standard Charging

0.2C / 4.2V

Max Charging Current

1.0C / 4.2V (Supports 1.5C fast charging)

Standard Discharging

0.2C / 3.0V

Max Discharging Current

1.0C / 3.0V

Weight

Approx. 10.0g

Battery Pack Impedance

≤200mΩ @ 23℃, ≤350mΩ @ 10℃

Max Charge Current (Temp)

0°C~5°C: 0.2C max / 4.1V, 6°C~10°C: 0.5C max / 4.1V, 11°C~45°C: 1C max / 4.2V (Supports 1.5C fast charging)

Max Discharge Current (Temp)

-20°C~0°C: 0.2C max, 0°C~25°C: 0.5C max, 25°C~60°C: 1.0C max


Cycle Life:

Condition

Cycle Life

Charge/Discharge Cycles

500 cycles at 0.2C charge/discharge at 23±2℃

Capacity Retention

≥80% after 500 cycles


Discharge Curve:

3.7V 515mAh Lithium Polymer Battery 500 Cycles 1C Discharge


Operating Temperature Range:

Condition

Temperature Range

Charging

0°C to 45°C

Discharging

-20°C to 60°C

Storage

-10°C to 25°C (12 months, ≥85% capacity), -10°C to 45°C (6 months, ≥85%), -10°C to 55°C (1 month, ≥90%)


Certifications:

  • Complies with GB/T 18287-2013, IEC/EN61960, and UL1642 standards.

Key Features:

  • High discharge rate up to 1C
  • Built-in protection against overcharge, over-discharge, and short circuits
  • Low self-discharge rate
  • RoHS compliant

Applications:

  • Portable electronic devices
  • Medical devices
  • IoT devices
  • Wearable technology
  • Backup power systems

3.7V 515mAh Lithium Polymer Battery 500 Cycles 1C Discharge

Usage Warnings & Precautions:

  • Do not short-circuit the battery terminals.
  • Avoid exposing the battery to high temperatures or direct sunlight.
  • Use only the recommended charger for charging.
  • Do not disassemble or modify the battery.
  • In case of leakage, swelling, or overheating, stop using the battery immediately and dispose of it properly.

Storage Guidelines:

  • Store the battery at 20±5°C for optimal performance.
  • If storing for more than 3 months, charge the battery to 60% capacity every 3 months.
  • Avoid storing the battery in humid or high-temperature environments.

Warranty & Disclaimer:

  • 12-month warranty from the date of shipment.
  • The warranty does not cover damage caused by improper use, mishandling, or unauthorized modifications.
