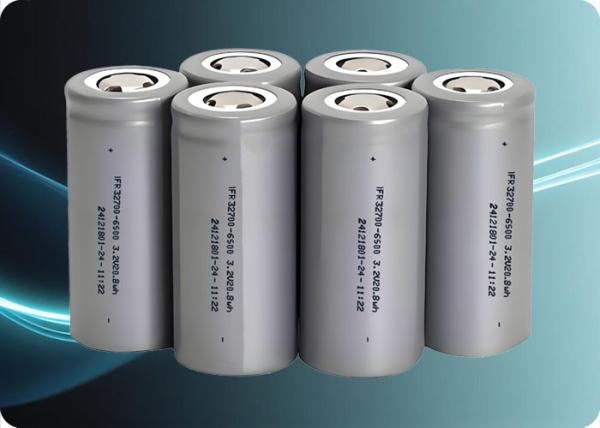

IFR32700N65A19.5 LiFePo4 Battery 3.2V 6500mAh 19.5A Discharge 2000+ Cycles

Product Name

IFR32700N65A19.5 LiFePo4 Battery Cell

Advantages

• High-Power Output: Supports up to 19.5A (3C) continuous discharge for demanding applications.
• Extended Cycle Life: 2000+ cycles with ≥80% capacity retention.
• Wide Temperature Tolerance: Operates efficiently in extreme conditions (-20°C to 60°C).
• Ultra-Safe Chemistry: LiFePo4 technology minimizes thermal runaway risks.
• Fast Charging: 0.5C (3250mA) rated charge current.

Specifications

Cycle Life

Operating Temperature Range

Discharge Curve

Certifications

• Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.

Key Features

• Robust Terminal Design: M6 threaded copper alloy terminals for secure connections.
• Low Self-Discharge: <3% per month for long-term storage.
• High Energy Density: 20.8Wh capacity in a compact 32700 form factor.

Applications

1. Solar Power Systems: Solar streetlights, off-grid energy storage.
2. Electric Mobility: E-bikes, scooters, golf carts, and EV auxiliary batteries.
3. Industrial Equipment: Cordless power tools, drones, and robotics.
4. Backup Power: UPS systems, emergency lighting, and telecom base stations.
5. Outdoor Adventures: Portable power stations for camping and RVs.

Usage Warnings & Precautions

• ⚠️ Do NOT charge above 45°C or discharge below -20°C to prevent damage.
• Use a compatible LiFePo4 charger with 3.65V cut-off voltage.
• Avoid physical impacts, punctures, or exposure to water.
• Never short-circuit terminals or reverse polarity.

Storage Guidelines

• Ideal Storage SOC: 40%-60% (2.5V-3.3V per cell).
• Temperature: -10°C to 35°C (non-condensing environment).
• Recharge Interval: Every 6 months for long-term storage.

Warranty & Disclaimer

• Warranty: 24-month limited warranty covering manufacturing defects.
• Disclaimer: Warranty voids if used outside specified parameters. Follow local regulations for disposal.
