IFR26700N48N14.4 LiFePo4 Battery 3.2V 4800mAh 14.4A Discharge 2000+ Cycles

Product Name

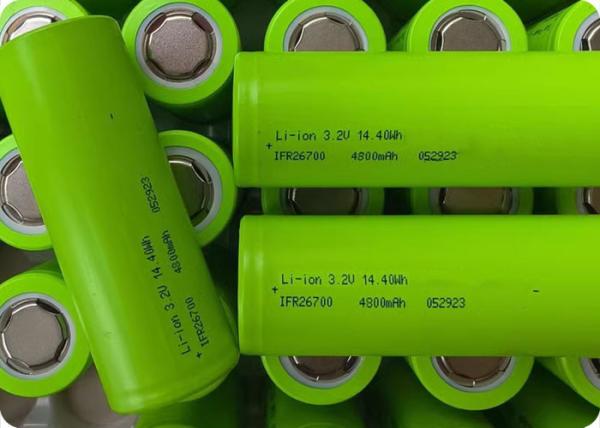

IFR26700N48N14.4 LiFePo4 Battery Cell

Advantages

• High Discharge Capability: Supports up to 14.4A (3C) continuous output for power-demanding tasks.
• Extended Cycle Life: 2000+ cycles with ≥80% capacity retention.
• Wide Temperature Range: Reliable operation from -20°C to 60°C.
• Safe LiFePo4 Chemistry: Inherent stability reduces thermal runaway risks.
• Efficient Charging: 0.5C (2400mA) rated charge current.

Specifications

Cycle Life

Operating Temperature Range

Discharge Curve

Certifications

• Complies with UN38.3, CE, RoHS, and IEC 62133 safety standards.

Key Features

• Compact Design: Slim 26700 form factor (26.5mm diameter) for space-constrained applications.
• Low Self-Discharge: <3% monthly loss during storage.
• Durable Construction: Robust casing for mechanical resilience.

Applications

1. Portable Electronics: High-drain devices like LED flashlights and handheld scanners.
2. Light Electric Vehicles: Electric skateboards, compact e-bikes, and mobility scooters.
3. Renewable Energy Storage: Small solar panels and portable wind turbines.
4. Medical Devices: Battery-powered medical monitors and portable equipment.
5. IoT & Sensors: Long-life power for remote sensors and wireless devices.

Usage Warnings & Precautions

• ⚠️ Never charge above 45°C or discharge below -20°C to avoid permanent damage.
• Use only LiFePo4-specific chargers with 3.65V cut-off.
• Prevent terminal short circuits with insulated tools and protective covers.
• Avoid crushing, puncturing, or exposing the battery to water.

Storage Guidelines

• Optimal Storage SOC: 30%-50% (2.8V-3.3V per cell).
• Temperature: -10°C to 35°C (dry, non-condensing conditions).
• Recharge Frequency: Every 6 months for batteries stored long-term.

Warranty & Disclaimer

• Warranty: 24-month limited warranty against manufacturing defects.
• Disclaimer: Warranty void if misused (e.g., over-discharge, extreme temperatures). Dispose per local regulations.
