Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
Specifications
Brand Name :
OiD
Model Number :
OID1260110SS10AH
Certification :
IEC 62133,UN38.3, MSDS
Place of Origin :
China
MOQ :
1pcs
Price :
$0.5 ~ $200.0 / pcs
Payment Terms :
TT,L/C,Western Union
Supply Ability :
1000000
Delivery Time :
3 ~ 30 days for storage
Packaging Details :
Carton
Name :
Semi-Solid State Li-Po Battery Cell
ODM :
Free custom design for packs
Capacity :
10000mAh
Battery Type :
3.7V 10000mAh Rechargeable
Cycle Life :
600+ cycles
Charging/ Discharging :
1C/1C
Operating Temperature :
-10°C to +80°C
Size :
12 × 60 × 110 mm
Description
Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
Semi-Solid 3.7V 10Ah Drone Battery Pack Cell
Model: OID1260110SS10AH | 3.7V 10000mAh | High-Safety Drone Battery Pack Core Cell
The OID1260110SS10AH is a high-capacity semi-solid lithium-ion cell engineered for demanding applications such as UAV drone battery packs and high-performance power banks. Designed for structural stability, long cycle life, and enhanced safety, this 10Ah cell supports continuous 1C charge and discharge, making it ideal for professional drone systems and portable energy storage devices.

Key Electrical Specifications
Rated Capacity 10000mAh
Nominal Voltage 3.7V
Minimum Capacity ≥10000mAh
AC Impedance ≤60mΩ (1kHz LCR method)
Standard Charge Current 0.2C (2000mA)
Standard Discharge Current 0.2C (2000mA)
Max Continuous Charge 1.0C (10000mA)
Max Continuous Discharge 1.0C (10000mA)
Limited Charge Voltage 4.20V
End of Discharge Voltage 3.0V
Test standard: 25±2℃, 45-85% RH

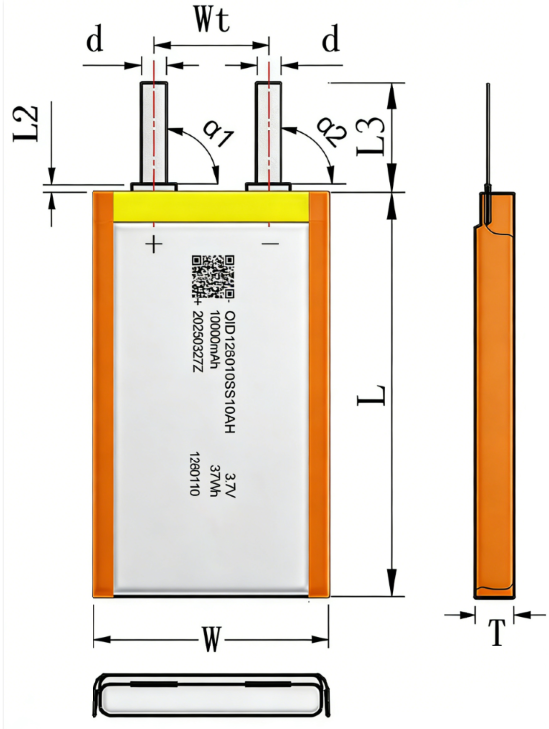

Mechanical Dimensions
Semi-Solid Lithium-ion Cell 3.7V 10000mAh Drone Battery Pack with 600+ Cycles and 1C Charge/Discharge
  • Thickness: ≤12.20mm (300gf pressure at 25±2℃)
  • Width: ≤60.50mm
  • Length: ≤110.50mm (excluding tabs)
Note: Slight thickness swelling may occur during high-temperature storage or operation

Performance Characteristics
Temperature Discharge Performance (0.2C)
Temperature Capacity Retention
-10℃ ≥50%
25℃ 100%
60℃ ≥95%
Cycle Life
  • 600 cycles @ 25±2℃
  • Capacity retention ≥80%
  • Thickness expansion ≤10%
Long-Term Storage
  • 365 days @ 25℃ (50% SOC)
  • Recovered capacity ≥85%
Shelf Performance
Normal Temp (25℃, 30 days)
  • ≥85% discharge capacity
  • ≥90% recovered capacity
High Temp (60℃, 7 days)
  • ≥60% discharge capacity
  • ≥80% recovered capacity

Standard Charging Method
Constant Current / Constant Voltage (CC/CV):
  • Charge at 0.2C (2000mA) to 4.20V
  • Switch to constant voltage
  • Cut-off current ≤0.02C (40mA)

Safety Performance (Verified Tests)
This semi-solid lithium battery cell has passed the following safety tests:
  • Short-Circuit Test (≤0.1Ω external resistance) - No fire / No explosion
  • Heating Test (130℃, 30min) - No fire / No explosion
  • Over-Charge Test (1C to 4.6V + CV 2.5h) - No fire / No explosion
  • Nail Penetration Test (φ5mm needle) - No fire / No explosion
Designed for high-safety drone battery pack integration.

Mechanical Reliability
  • Vibration Test (10-55Hz sweep, XYZ axes)
  • 1m Drop Test (Concrete surface, 6 directions)
  • No fire / No explosion / No smoking

Operating Temperature
Charge:
  • 0~15℃ (≤0.2C, ≤4.1V)
  • 15~50℃ (≤1.0C, ≤4.2V)
Discharge:
  • -10~80℃

Storage Guidelines
  • <1 month: -20~45℃
  • <6 months: -20~35℃
  • Recommended shipment state: 3.80-4.05V
  • Long storage: Maintain 3.8-3.9V to prevent over-discharge (<2.75V)

Application Scenarios
  • Drone Battery Pack (UAV battery system)
  • High-capacity Power Bank
  • Portable Energy Storage Modules
  • Custom Lithium Battery Pack Integration

Handling & Safety Precautions
Strictly follow lithium-ion handling protocols:
  • Do not short circuit terminals
  • Do not immerse in water
  • Do not disassemble or modify
  • Do not expose to fire or extreme heat
  • Use only approved charging systems
  • Avoid mechanical damage
