Heavy Duty Wire Rope Electric Hoist Large Capacity Overhead Crane Electric Hoist
Heavy Duty Wire Rope Electric Hoist Large Capacity Overhead Crane Electric Hoist
Heavy Duty Wire Rope Electric Hoist Large Capacity Overhead Crane Electric Hoist
Heavy Duty Wire Rope Electric Hoist Large Capacity Overhead Crane Electric Hoist
Heavy Duty Wire Rope Electric Hoist Large Capacity Overhead Crane Electric Hoist
Heavy Duty Wire Rope Electric Hoist Large Capacity Overhead Crane Electric Hoist
Specifications
Payment Terms :
T/T
Motor Type :
Pure Copper
Supply Ability :
20000 PCS/ YEAR
Protection Class :
IP54/IP44/M3/M4
Model Number :
CD/MD
Type :
Double Girder Double Rail
Packaging Details :
PLY Wooden Case
MOQ :
1 PCS
Delivery Time :
20 Work days
Lifting Height :
6m,9m,12m,18m / Customized
Price :
2000USD
Voltage :
220V/380V/440V/50HZ/60HZ/3PH
Certification :
CE ISO
Lifting Speed :
Single Speed/Double Speed
Place of Origin :
HEBEI, CHINA
Lifting Capacity :
0.5ton To 50ton
Brand Name :
OEM
Product Name :
Double Girder Electric Wire Rope Hoist
Description

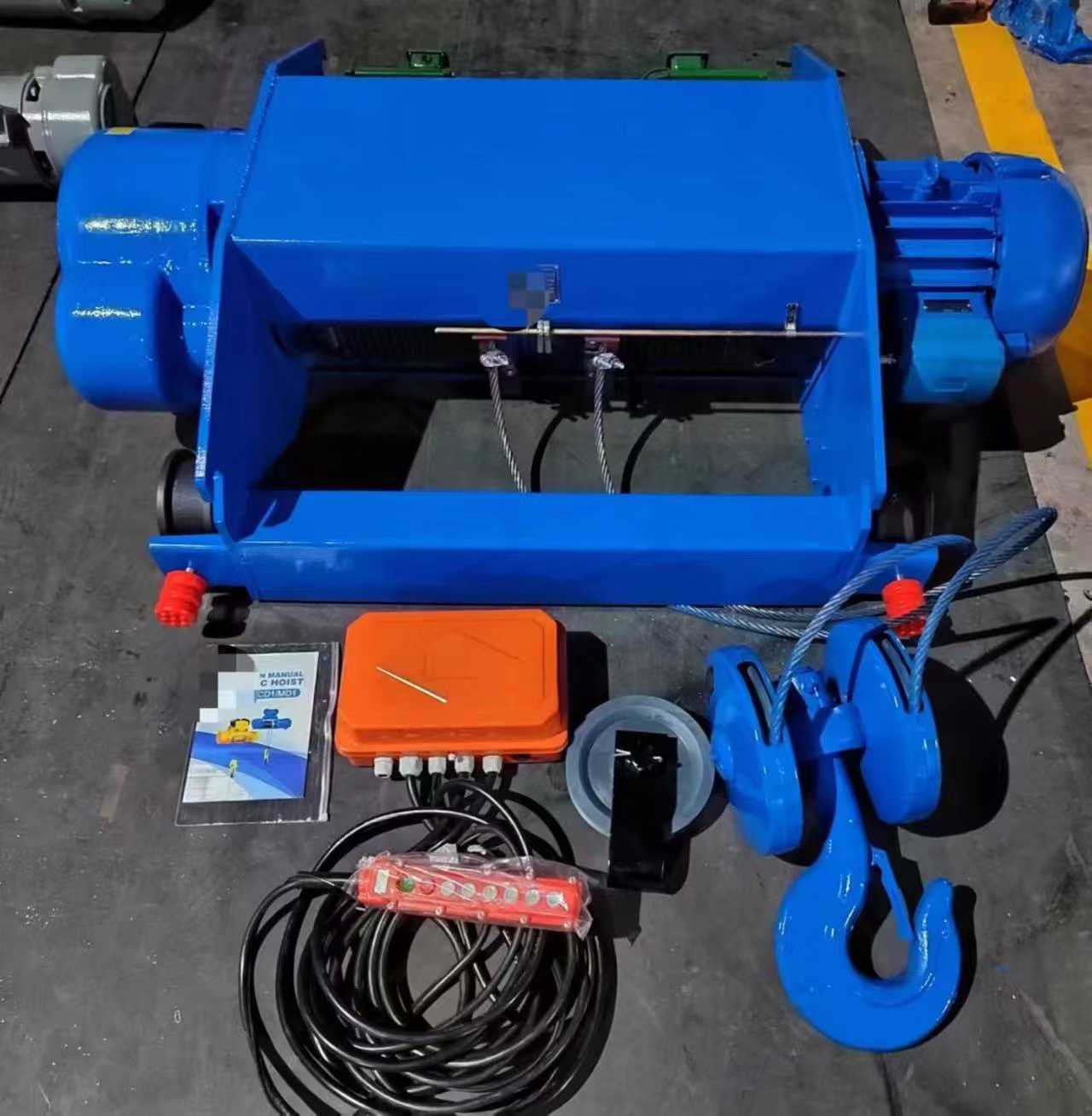

Heavy Duty Electric Wire Rope Hoist Travelling on Double Girder Crane, Large Capacity Lifting Hoist

Product Description:

Double girder electric wire rope hoist is specially matched for double girder overhead cranes. Equipped with travelling trolley to move horizontally along double main beams. It features larger load capacity and stable running with high space utilization. Fitted with power-off brake and upper/lower limit switches for safe operation. Single speed or double speed optional. Capacity, lifting height and track gauge can be customized, widely used for heavy load handling in heavy industry workshops, metallurgy and warehouses.

Features:

Designed for Double Girder Crane Double track travelling structure with balanced load, suitable for heavy-duty lifting.
Stable Travelling & Lifting High rigidity frame, smooth wheel transmission, stable operation at travelling speed.
Complete Safety Protection Power-off brake plus limit switches to avoid load falling and over-travel damage.
Optional Single / Double Lifting Speed CD1 single speed or MD1 double speed lifting mechanism optional for different working requirements.
Fully Customizable Parameters Load capacity, lifting height, track gauge and voltage are customizable.

Wire Rope Electric Hoist Safety Tips
❌ No overloading
❌ No diagonal pulling
❌ Do not lift people
✅ Inspect wire rope & hook
✅ Keep people away under loads
✅ Cut off power after use

Heavy Duty Wire Rope Electric Hoist Large Capacity Overhead Crane Electric Hoist

Heavy Duty Wire Rope Electric Hoist Large Capacity Overhead Crane Electric Hoist

Heavy Duty Wire Rope Electric Hoist Large Capacity Overhead Crane Electric Hoist

Technical Data:

Item 0.5 Ton 1 Ton 2 Ton 3 Ton 5 Ton 10 Ton 16 Ton
Capacity (Ton) 0.5 1 2 3 5 10 16
Lifting height (m) 3–9 6–12 6–18 6–18 6–18 6–18 6–18
Lifting speed (m/min) 8/0.8 8/0.8 8/0.8 8/0.8 8/0.8 8/0.8 8/0.8
Running speed (m/min) 20/30 20/30 20/30 20/30 20/30 20/30 20/30
Dia of wire rope (mm) 4.8 7.4 11 13 15.5 15.5 15.5
I Beam (GB706-88) 16–28b 16–28b 20a–32c 20a–32c 25a–45c 32b–63c 32b–63c
Lift motor capacity (KW) 0.8 1.5 3 4.5 7.5 13 13
Running motor capacity (KW) 0.2 0.2 0.4 0.4 0.8 0.8×2 0.8×2
Voltage 220V/380V/440V, 50Hz/60Hz, 3PH
Double girder customized

Applicable Locations:

Matched for double girder overhead cranes, widely applied in heavy machinery workshops, steel plants, metallurgy workshops and port warehouses for heavy cargo lifting. It provides larger load limit and better stability compared with single girder hoist.

Workshop:

FAQ:

1. Are you manufacturer or trading company?

We are manufacturer with our own factories.

2. What’s the warranty for products?

Usually for 1 year for major part, for example, motor, pump. We also offer online service supports.

3. What’s your MOQ?

1 pcs

4. What about deliver leading time?

About 15-30 working days

5. Where’s your factory?

Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
