3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop
3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop
3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop
3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop
3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop
3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop
Specifications
Payment Terms :
T/T
Protection Class :
IP54/IP44/M3/M4
Supply Ability :
20000 PCS/ YEAR
Gear Reduction :
Three-stage Alloy Quenched
Model Number :
CD
Lifting Speed :
Single Speed
MOQ :
2 PCS
Delivery Time :
20 Work days
Voltage :
220V/380V/440V/50HZ/60HZ/3PH
Price :
420USD
Motor Type :
Pure Copper
Packaging Details :
PLY Wooden case
Certification :
CE ISO
Lifting Capacity :
0.5ton To 50ton
Place of Origin :
HEBEI, CHINA
Lifting Height :
6m,9m,12m,18m / Customized
Brand Name :
OEM
Product Name :
CD1 Single Speed Electric Wire Rope Hoist
Description

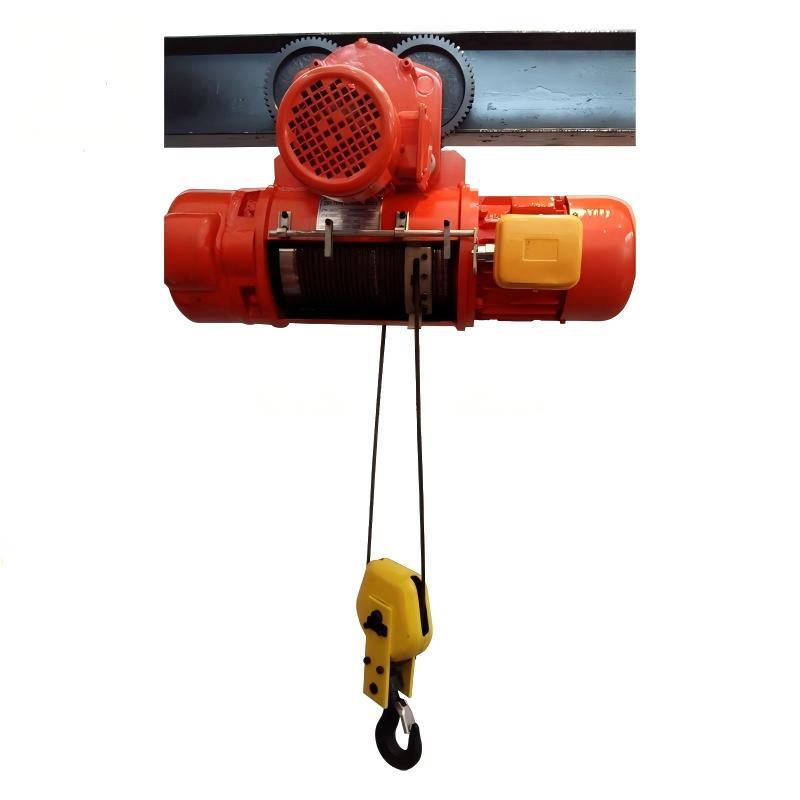

CD1 Single Speed Wire Rope Electric Hoist, Stable Constant Speed Lifting Equipment for Workshop

Product Description:

CD1 single speed electric wire rope hoist is classic industrial lifting equipment with constant single lifting speed. It features reliable structure and easy maintenance. Equipped with power-off self-locking brake and upper/lower limit safety devices for stable operation. Fixed type or trolley type available for mobile hoisting. Complete range of capacities and lifting heights. Widely matched with single girder overhead cranes for general material handling in factories, warehouses and steel workshops.

Features:

Constant Single Lifting Speed Constant lifting speed, simple structure and low failure rate for regular hoisting work.
Power-off Self-locking Brake Instant self-lock upon power cut to prevent load dropping.
Upper & Lower Limit Protection Limit switches avoid over-travel and equipment collision damage.
Compact Integrated Structure Compact integrated design, easy to mount on I-beam track.
Flexible Configuration & Customization Fixed type or trolley type optional; capacity & lifting height customizable.

3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop

3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop

3PH Wire Rope Electric Hoist Single Speed CD1 Electric Hoist For Workshop

Technical Data:

Item 0.5 Ton 1 Ton 2 Ton 3 Ton 5 Ton 10 Ton 16 Ton
Capacity (Ton) 0.5 1 2 3 5 10 16
Lifting height (m) 3–9 6–12 6–18 6–18 6–18 6–18 6–18
Lifting speed (m/min) 8/0.8 8/0.8 8/0.8 8/0.8 8/0.8 8/0.8 8/0.8
Running speed (m/min) 20/30 20/30 20/30 20/30 20/30 20/30 20/30
Dia of wire rope (mm) 4.8 7.4 11 13 15.5 15.5 15.5
I Beam (GB706-88) 16–28b 16–28b 20a–32c 20a–32c 25a–45c 32b–63c 32b–63c
Lift motor capacity (kW) 0.8 1.5 3 4.5 7.5 13 13
Running motor capacity (kW) 0.2 0.2 0.4 0.4 0.8 0.8×2 0.8×2
Voltage 220V/380V/440V, 50Hz/60Hz, 3PH
Remark Double girder customized

Applicable Locations:

CD1 single speed hoist provides stable and cost-effective general lifting, suitable for cargo loading, workshop workpiece transfer and warehouse handling, commonly used with single girder cranes. Compared with MD1 double speed model, it is more economical for jobs without precise fine positioning.
