Horizontal Traction Wire Rope Electric Winch Vertical Lifting Industrial Electric Winch 1 Ton - 10 Ton
Horizontal Traction Wire Rope Electric Winch Vertical Lifting Industrial Electric Winch 1 Ton - 10 Ton
Horizontal Traction Wire Rope Electric Winch Vertical Lifting Industrial Electric Winch 1 Ton - 10 Ton
Horizontal Traction Wire Rope Electric Winch Vertical Lifting Industrial Electric Winch 1 Ton - 10 Ton
Horizontal Traction Wire Rope Electric Winch Vertical Lifting Industrial Electric Winch 1 Ton - 10 Ton
Horizontal Traction Wire Rope Electric Winch Vertical Lifting Industrial Electric Winch 1 Ton - 10 Ton
Specifications
Payment Terms :
T/T
Color :
Orange, Red, Blue, Yellow,Customizable
Supply Ability :
50000 PCS/ YEAR
After Sales Service :
1 Year
Model Number :
KCD
Structure :
Inline straight integrated structure
MOQ :
1 PCS
Delivery Time :
20 Work days
Standard Wire Rope Length :
30m/ 60m / 100m/ 120m, Customizable
Price :
190USD
Motor :
Pure copper Motor
Packaging Details :
PLY Wooden Case
Brand Name :
OEM
Product Name :
Heavy Duty Electric Winch
Certification :
CE ISO
Standard Power Supply :
380V/3PH, customized voltage available
Place of Origin :
HEBEI, CHINA
Capacity :
1T / 2T / 3T / 5T / 10T
Description

Heavy duty Electric Wire Rope Winch, Industrial Heavy Duty Electric Winch 1-10TON for Lifting & Traction

Product Description:

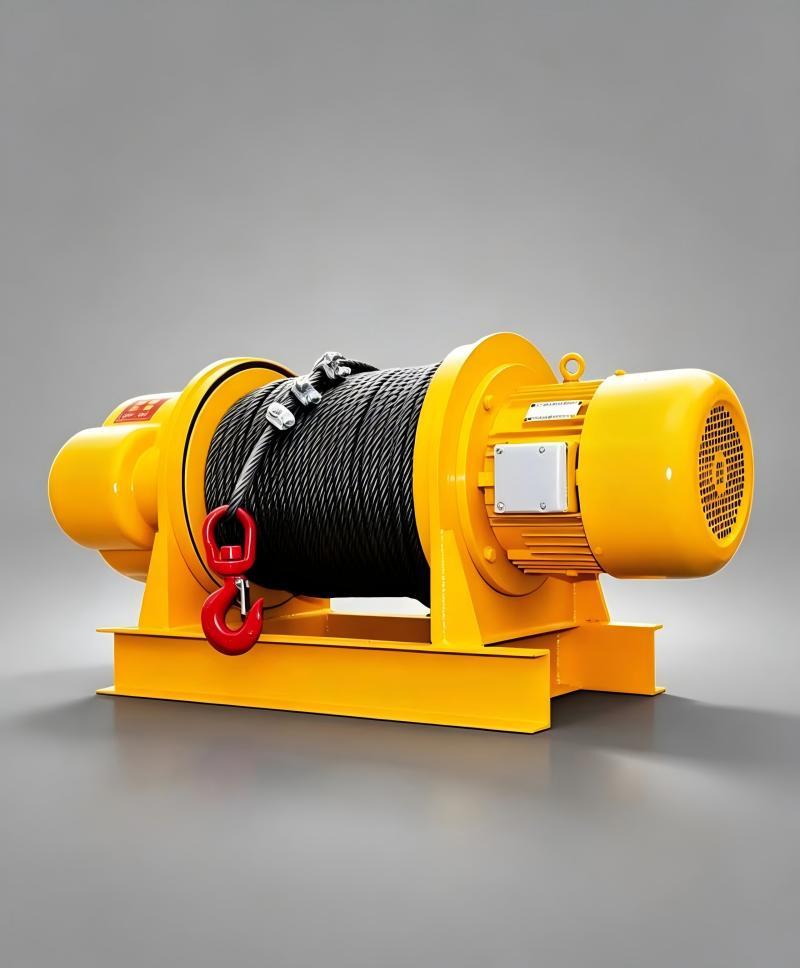

The straight type electric winch adopts classic inline layout. The motor and wire rope drum are arranged on a straight line, making force transmission even and reducing vibration during operation. It is fitted with reliable electromagnetic brake to lock the load securely once power is off.
This industrial winch realizes dual functions: vertical lifting and horizontal traction. Widely applied on construction sites, municipal projects, workshops and ports. Load capacity, wire rope length, power supply and control mode can be customized.


Key Features:

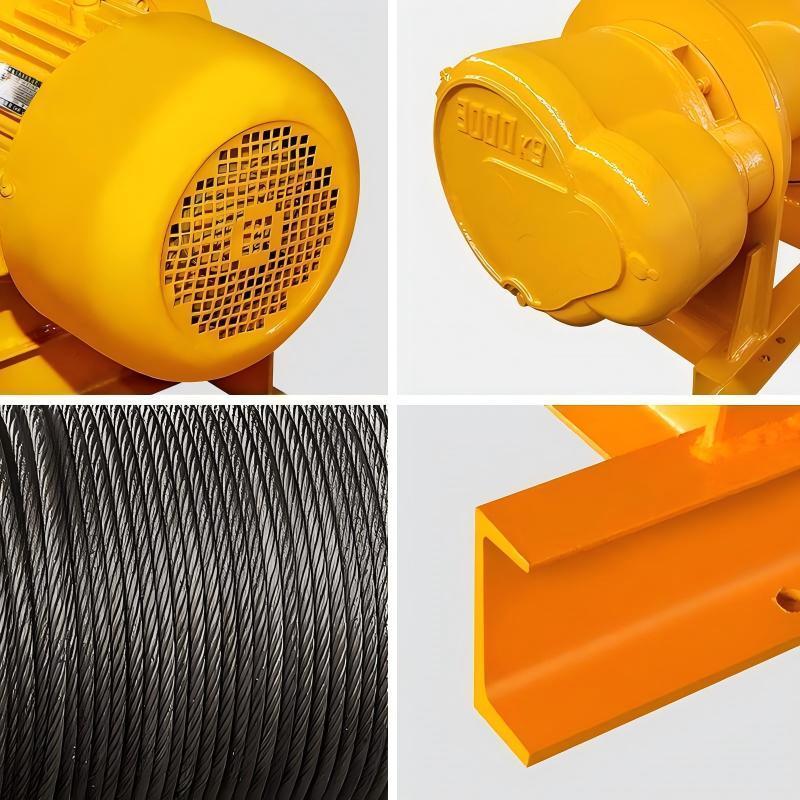

Inline Straight Layout Motor and drum arranged in straight line, balanced stress, stable operation and orderly wire rope winding.
Electromagnetic Safety Brake Instant braking upon power failure to prevent load slipping and ensure operational safety.
Lifting & Traction Dual Purpose Capable of vertical material hoisting and horizontal heavy load pulling for multiple working scenarios.
Heavy Welded Base Frame Robust integral steel base, strong rigidity for stable installation under long-time heavy-duty work.

Application Scenarios:

The straight electric winch is widely used in building construction, road & bridge projects, factory workshop equipment relocation and port cargo handling. It is designed for continuous heavy-duty work, far more powerful than small portable aluminum shell winches. Suitable for projects requiring stable and reliable heavy load lifting and traction

Electric winch Safety Tips
❌ No overloading
❌ No diagonal pulling
❌ Do not lift people
✅ Inspect wire rope & hook
✅ Keep people away under loads
✅ Cut off power after use

Horizontal Traction Wire Rope Electric Winch Vertical Lifting Industrial Electric Winch 1 Ton - 10 Ton

Horizontal Traction Wire Rope Electric Winch Vertical Lifting Industrial Electric Winch 1 Ton - 10 Ton


Technical Specifications:

Specification Capacity (kg single cable / double cable) Dia of cable Channel steel length Lifting speed (single cable / double cable) Power Voltage Bare body including control box and wire net weight Cable weight/m
1T 500kg / 1000kg 7.7mm 530mm 16/8 min 1.5KW 380V 90kg 0.2kg
2T 1000kg / 2000kg 11mm 600mm 16/8 min 3KW 380V 140kg 0.4kg
3T 1500kg / 3000kg 13mm 650mm 16/8 min 4.5KW 380V 170kg 0.6kg
5T 2500kg / 5000kg 15mm 750mm 16/8 min 7.5KW 380V 270kg 0.8kg
10T 5000kg / 10000kg 18mm
16/8 min 13KW 380V 510kg 1kg

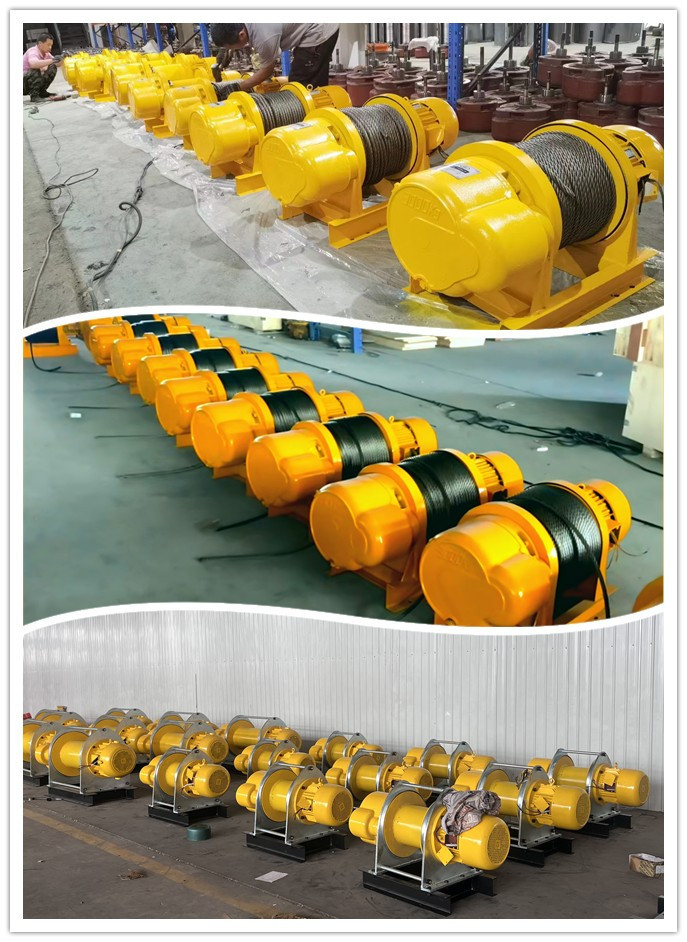

workshop:

Welcome to HEBEI WELDON LIFTING MACHINERY MANUFACTURING CO., LTD

We are manufacturer of electric winch, electric hoist, lifting chains, hooks, chain sling, chain hoist, lever hoist, pallet truck, webbing sling, lifting clamp, magnetic lifter ect. most of these items with CE, ROHS certificate.

We have more than 25 years manufacturing and export business experience. In addition to selling products under its own brand, our company also OEM & ODM for world-renowned enterprises

Horizontal Traction Wire Rope Electric Winch Vertical Lifting Industrial Electric Winch 1 Ton - 10 Ton


FAQ:

1. Are you manufacturer or trading company?

We are manufacturer with our own factories.

2. What’s the warranty for products?

Usually for 1 year for major part, for example, motor, We also offer online service supports.

3. What’s your MOQ?

1pcs

4. What about deliver leading time?

About 15-30 working days

5. Where’s your factory?

Our factory located in Donglv industrial Area, belongs to Baoding city, near Capital Beijing. Convenient transportation. Our nearest port is Tianjin port.
