Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch
Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch
Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch
Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch
Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch
Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch
Specifications
Supply Ability :
50000 PCS/ YEAR
Delivery Time :
20 Work days
Certification :
CE ISO
Working Voltage :
12V DC / 24V DC
Payment Terms :
T/T
Color :
Black,Customized
Price :
140USD
Packaging Details :
Carton or PLY Wooden Case
Power :
Dc Powered Winch
Place of Origin :
HEBEI, CHINA
Rated Pulling Force :
2000lbs -20000lbs
MOQ :
10PCS
Control :
Wire Control Or Wireless Remote Control
Brand Name :
OEM
Product Name :
Off-Road Electric Vehicle Winch
Description

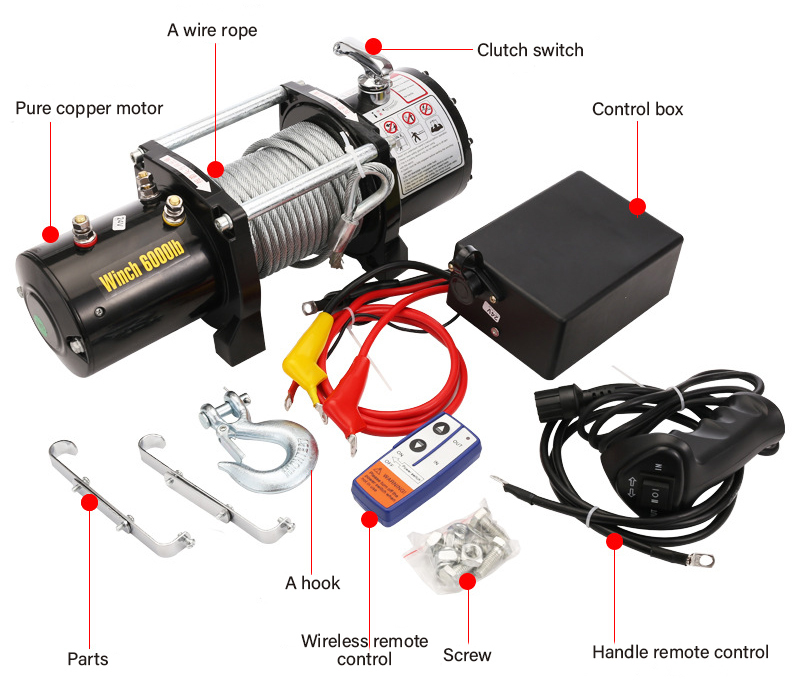

Off-Road Auto Electric Winch, 12V / 24V Vehicle Recovery Winch for SUV, Truck & ATV

Product Description:

Off-road electric vehicle winch is a professional DC-powered traction device specially installed on vehicle bumpers for outdoor self-rescue and heavy hauling work. Powered directly by the vehicle battery, it delivers stable and powerful pulling force without additional power sources, perfectly meeting various tough working demands for off-road rescue, trapped vehicle recovery, field obstacle clearance and outdoor heavy goods hauling.
Equipped with a high-strength planetary gear reduction system, the winch realizes large torque output with stable transmission, labor-saving operation and strong load-bearing capacity. The built-in self-locking brake structure provides reliable positioning and anti-slip performance during traction, effectively preventing accidental rope retraction and ensuring overall operation safety.
This electric winch supports two mainstream rope configurations, including durable steel wire rope and lightweight flexible synthetic rope, allowing users to choose according to different usage scenarios. Fitted with an IP waterproof-grade motor, it features excellent water resistance and dustproof performance, maintaining stable and consistent working output even in muddy, rainy, snowy and harsh wild field environments.

Key Features:

Planetary Gear Reduction System High efficiency planetary gear set, strong pulling force, stable and low noise during traction.
Automatic Load Holding Brake Instant self-lock under load; prevents reverse rope slipping for safe rescue operation.
Waterproof DC Motor Sealed waterproof motor, works reliably under rainy, muddy off-road conditions.
Multiple Capacity Options Wide range pulling force from 2000lbs–20000lbs, suitable for ATV, SUV and heavy trucks.

Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch

Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch

Off Road Vehicle Recovery Winch 12V / 24V Truck Recovery Winch

Technical Specifications:

Electric winch 12V/24V, wire rope length can make according customer's request
Model Rated traction
(kg)		 Vertical lifting
(kg)		 Motor no-load
power
(kw)		 Wire rope
(diaxlength)		 Size
(LxWxH)
mm		 Installation dimensions
(hole spacing-hole diameter)
mm		 Drum dimensions
(diameter length)
mm		 G.w
(kg)		 Wooden case size
(LxWxH)
cm		 Remart
2000lbs 900 200 0.4 4mmx6m 268x110x105 76-8.5 3.15x72 5.80 33x24x15 Without mounting plate and rope guide
3000lbs 1300 300 0.55 5mmx6m 299x110x105 76-8.5 31.5x72 6.15 33x24x15 Without mounting plate and rope guide
3500lbs 1500 350 0.6 5mmx10m 320x110x105 76-8.5 31.5x72 8.15 40x31x16 With mounting plate and rope guide
4000lbs 1800 400 0.8 5mmx10m 343x110x112 76-8.5 49.5x72 9.20 40x31x16 With mounting plate and rope guide
4500lbs 2000 450 0.9 5mmx10m 363x110x112 76-8.5 49.5x72 9.55 40x31x16 With mounting plate and rope guide,with remote wireless control
6000lbs 2700 500 1.5 7mmx14m 340x160x217 165x114-11 63x135 23.80 55x25x32 Without mounting plate and rope guide
9500lbs 4300 600 1.9 9mmx24m 529x160x217 255x114-11 63x220 36.15 58x32x29.5 With rope guid and remoe wireless control, without mounting plate
12000lbs 5400 750 2.0 9mmx24m 529x160x217 255x114-11 63x220 37.25 58x32x29.5 With rope guide and remote wireless control, without mounting plate
13000-13500lbs 6000 800 2.2 9mmx24m 529x160x217 255x114-11 63x220 37.25 58x32x29.5 With rope guide and remote wireless control, without mounting plate
20000lbs 9000 1000 2.8 1lmmx24m 560x196x260 255x114-12 88x215 52.00 63x31x23 With rope guide and remote wireless control, without mounting plate

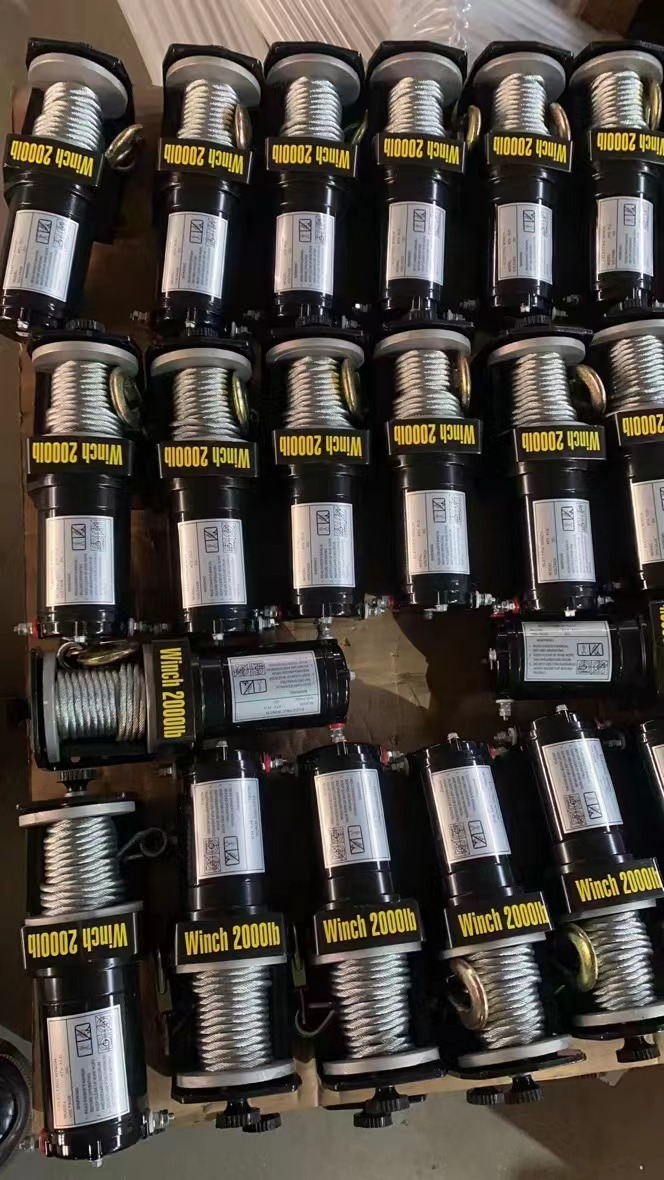

Workshop:

Application Scenarios:

The electric offroad winch is core equipment for outdoor off-road enthusiasts. When vehicles get trapped in mud, sand or slopes, the winch provides reliable traction for self-rescue. It is also used for farm hauling, small engineering traction and ATV heavy work. Compared with industrial AC winches, this DC winch is compact, easy to install and powered directly by vehicle battery.
