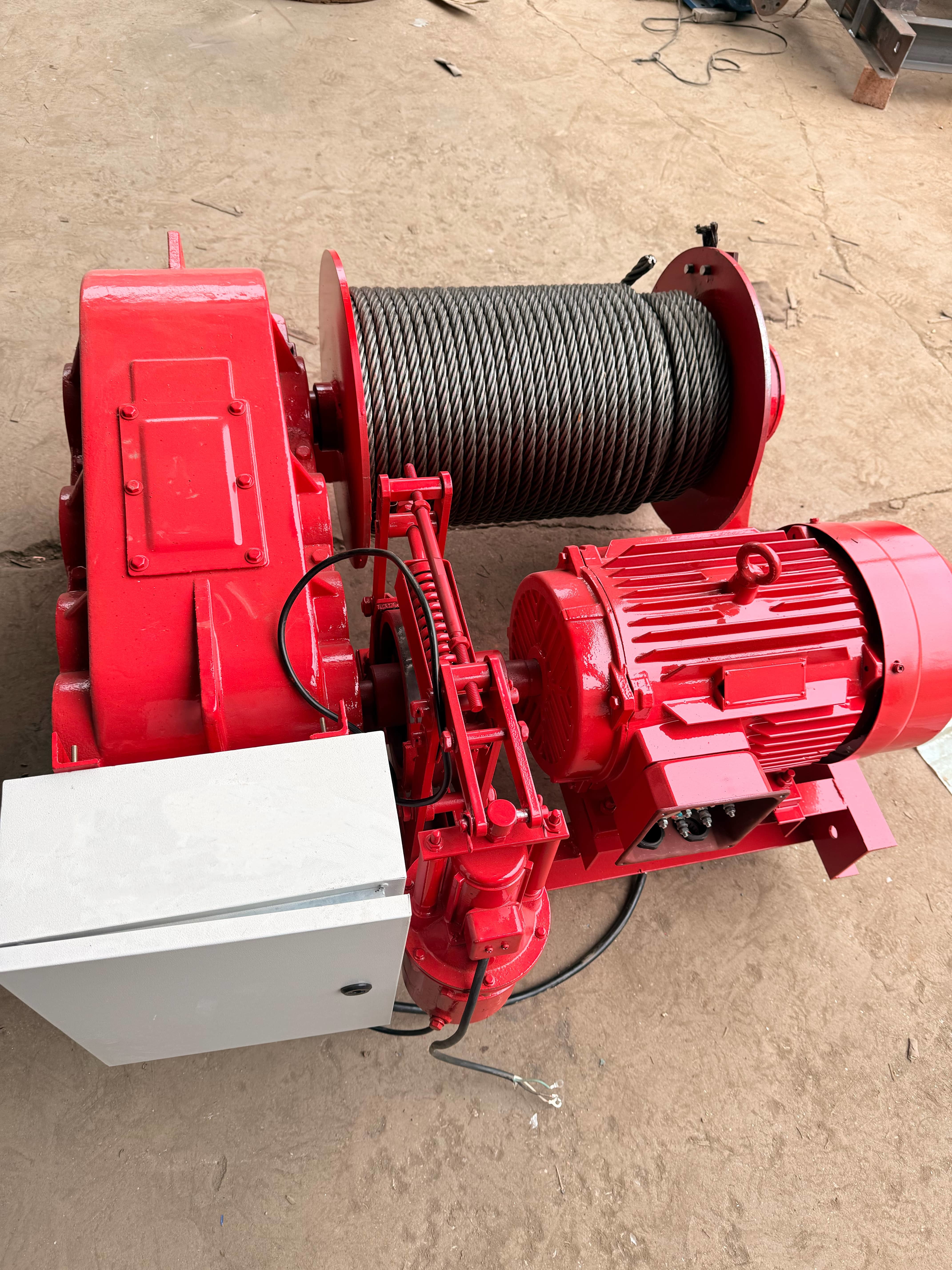

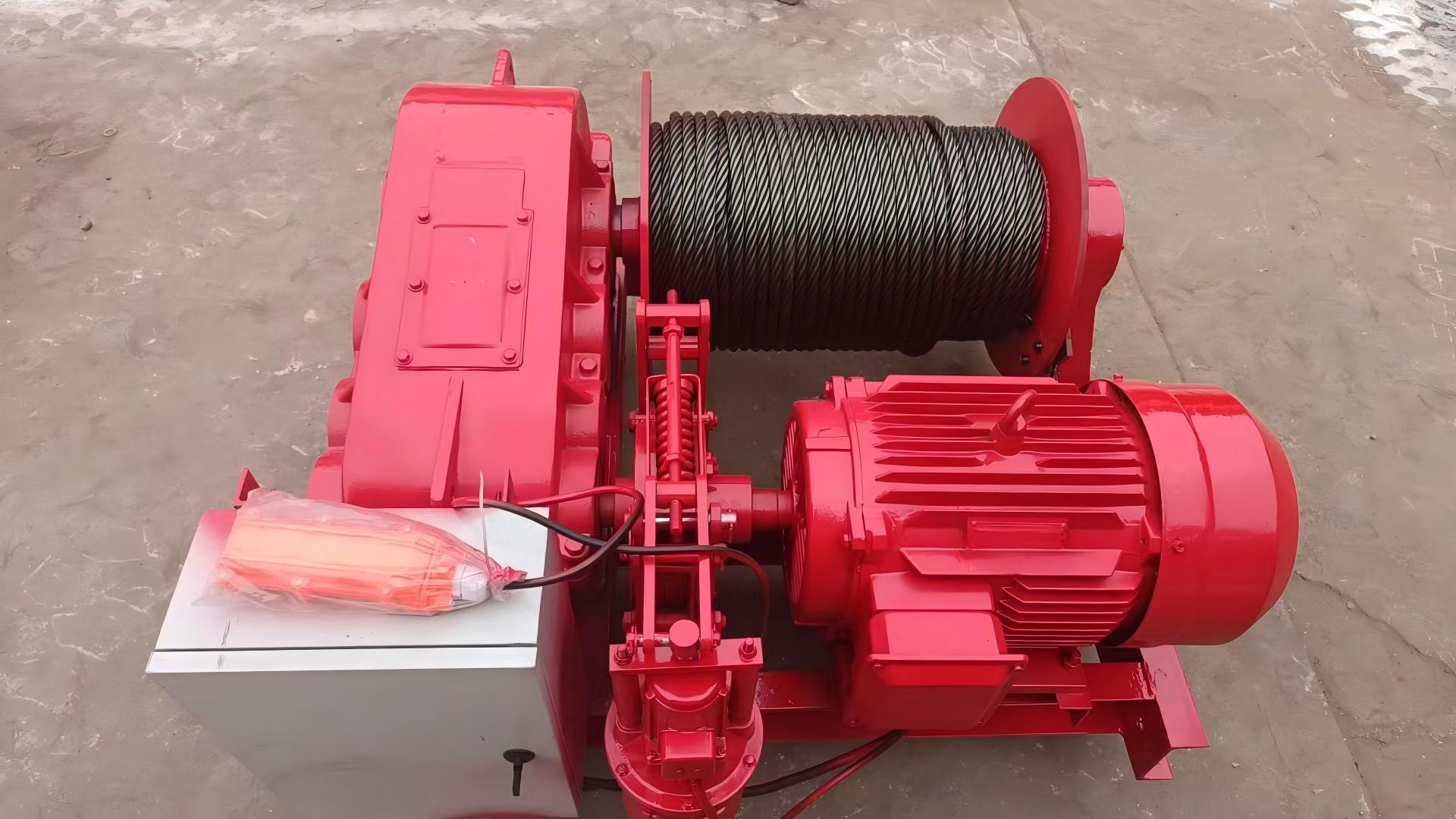

High Efficiency Wire Rope Electric Winch Heavy Duty Wire Rope Winch Durable
High Efficiency Wire Rope Electric Winch Heavy Duty Wire Rope Winch Durable
High Efficiency Wire Rope Electric Winch Heavy Duty Wire Rope Winch Durable
High Efficiency Wire Rope Electric Winch Heavy Duty Wire Rope Winch Durable
High Efficiency Wire Rope Electric Winch Heavy Duty Wire Rope Winch Durable
High Efficiency Wire Rope Electric Winch Heavy Duty Wire Rope Winch Durable
Specifications
Certification :
CE ISO
Structure :
Inline straight integrated structure
Supply Ability :
5000 PCS/ YEAR
Motor :
Pure copper Motor
Payment Terms :
T/T
Standard Wire Rope Length :
100m / 200m, customizable
Delivery Time :
20 Work days
Color :
Orange, Red, Blue, Yellow,Customizable

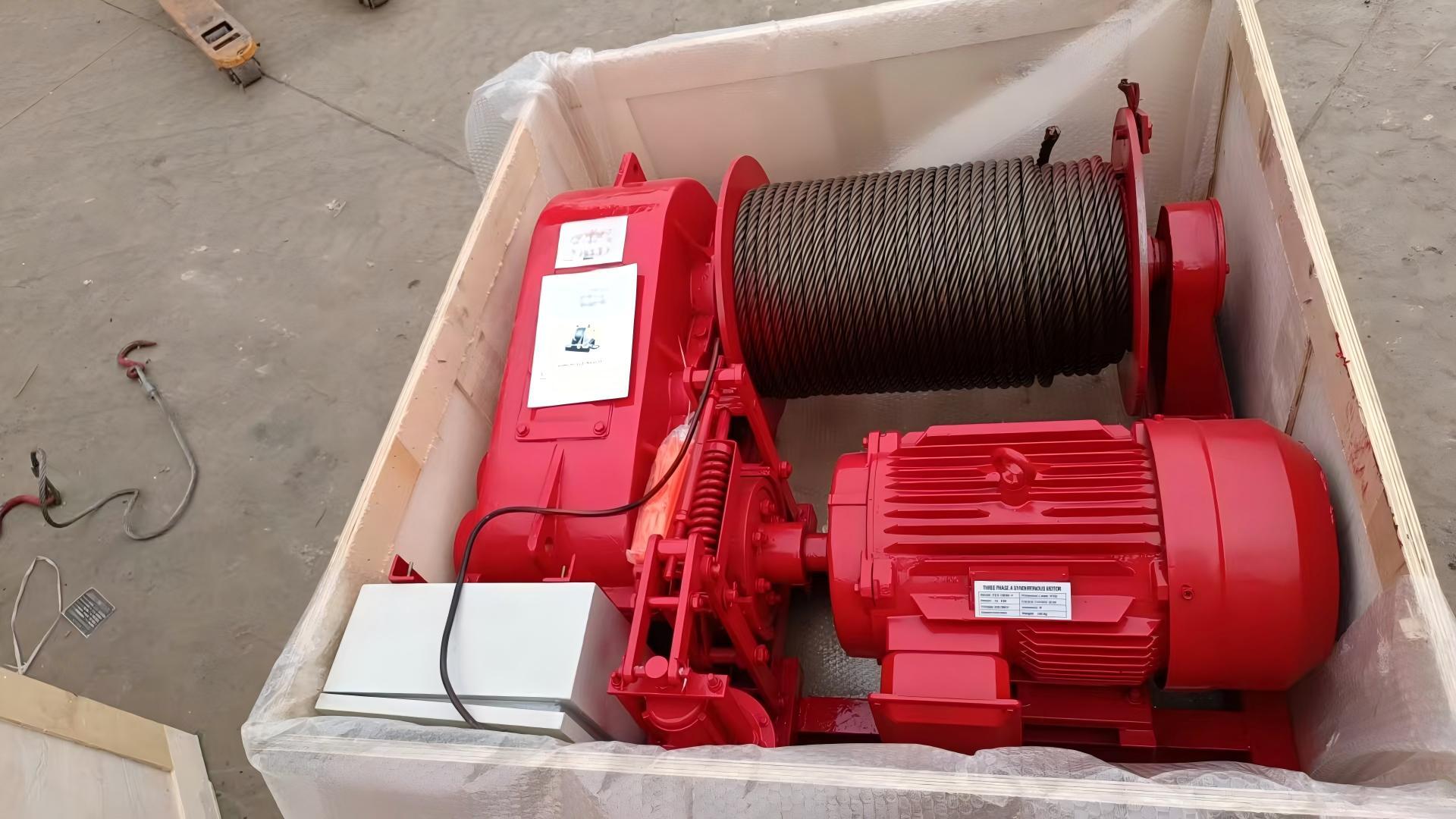

Packaging Details :
PLY Wooden Case
After Sales Service :
1 Year
Place of Origin :
HEBEI, CHINA
Standard Power Supply :
380V/3PH, customized voltage available
MOQ :
1 PCS
Capacity :
2T / 3T / 5T / 8T / 10T / 16T
Brand Name :
OEM
Product Name :
Heavy Duty Electric Winch
Description

Mining Industrial Electric Winch, Heavy Duty Wire Rope Winch for Mine Hoisting & Material Transportation


Product Description:

Mining electric winch is a heavy-duty industrial wire rope winding and traction equipment specially optimized for harsh and high-intensity working conditions in mining and engineering fields. Adopting a professional side large gear reducer layout, the winch delivers powerful torque output and maintains extremely stable operation even under continuous heavy-load conditions. The optimized gear transmission structure effectively reduces operating friction, improves working efficiency and extends the overall service life during long-cycle industrial tasks.
To ensure maximum operational safety, the machine is equipped with dual braking systems, including a main working brake and an auxiliary safety brake. The dual-protection design thoroughly eliminates load slipping, rope sliding and accidental falling risks during lifting and traction processes, greatly improving construction reliability in high-risk environments.
This heavy-duty winch is widely applicable for underground mine material transportation, tunnel excavation hoisting, quarry stone handling and large infrastructure construction projects. It can stably complete vertical lifting and horizontal traction of ores, building materials and heavy mechanical equipment. Various standard load capacities are available. Meanwhile, wire rope length, supporting power supply modes and operation control methods can be fully customized according to actual on-site working requirements.


Key Features:

Heavy Side-mounted Reduction Gearbox Strong overload resistance, stable operation under heavy load.
Electromagnetic Safety Brake Instant braking upon power failure to prevent load slipping and ensure operational safety.
Large Capacity Wire Rope Drum Longer drum allows more wire rope winding, meets long-distance lifting & traction demands.
Heavy Welded Base Frame Robust integral steel base, strong rigidity for stable installation under long-time heavy-duty work.


High Efficiency Wire Rope Electric Winch Heavy Duty Wire Rope Winch Durable

High Efficiency Wire Rope Electric Winch Heavy Duty Wire Rope Winch Durable


Technical Specifications:

Specification Capacity (kg single cable / double cable) Dia of cable Lifting speed (single cable / double cable) Power Voltage
3Ton 1500kg / 3000kg 15mm 12m/ min 15KW 220V/380V
5Ton 2500kg / 5000kg 17.5mm 9m/ min 15KW 220V/380V
10Ton 5000kg / 10000kg 17.5mm 9m/ min 22KW 220V/380V


workshop:

Application Scenarios:

This heavy mining electric winch is professionally engineered to adapt to harsh and high-intensity industrial working environments. It is widely deployed in underground mines, tunnel excavation projects, stone quarries and large-scale construction sites. The winch undertakes vertical material lifting, heavy equipment retraction and horizontal heavy-load traction tasks. Featuring greater torque output and excellent overload resistance compared with ordinary straight-type winches, it fully meets the demands of long-duration, continuous heavy-duty mining and engineering operation.
