Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable
Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable
Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable
Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable
Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable
Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable
Specifications
Payment Terms :
T/T
Color :
Red, Blue, Yellow, Orange, Green, Black, Customized
Supply Ability :
80000 PCS/ YEAR
Safety Feature :
Power-off self-locking brake
Model Number :
CDK
Votalge :
220V/110V/124V/50HZ/60HZ/1PH
MOQ :
10 PCS
Delivery Time :
20 Work Days
Housing Material :
Aluminum Alloy
Price :
60USD
Motor :
Pure Copper Motor
Packaging Details :
PLY Wooden Case
Certification :
CE ISO
Lifting Capacity :
400kg -2500kg
Place of Origin :
HEBEI, CHINA
Lifting Height :
30m / 60m / 100m/Customized
Brand Name :
OEM
Product Name :
Aluminum Shell Electric Winch
Description

Lightweight Aluminium Housing Electric Winch, Portable Small Lifting Winch for Building Material Hoisting

Product Description:

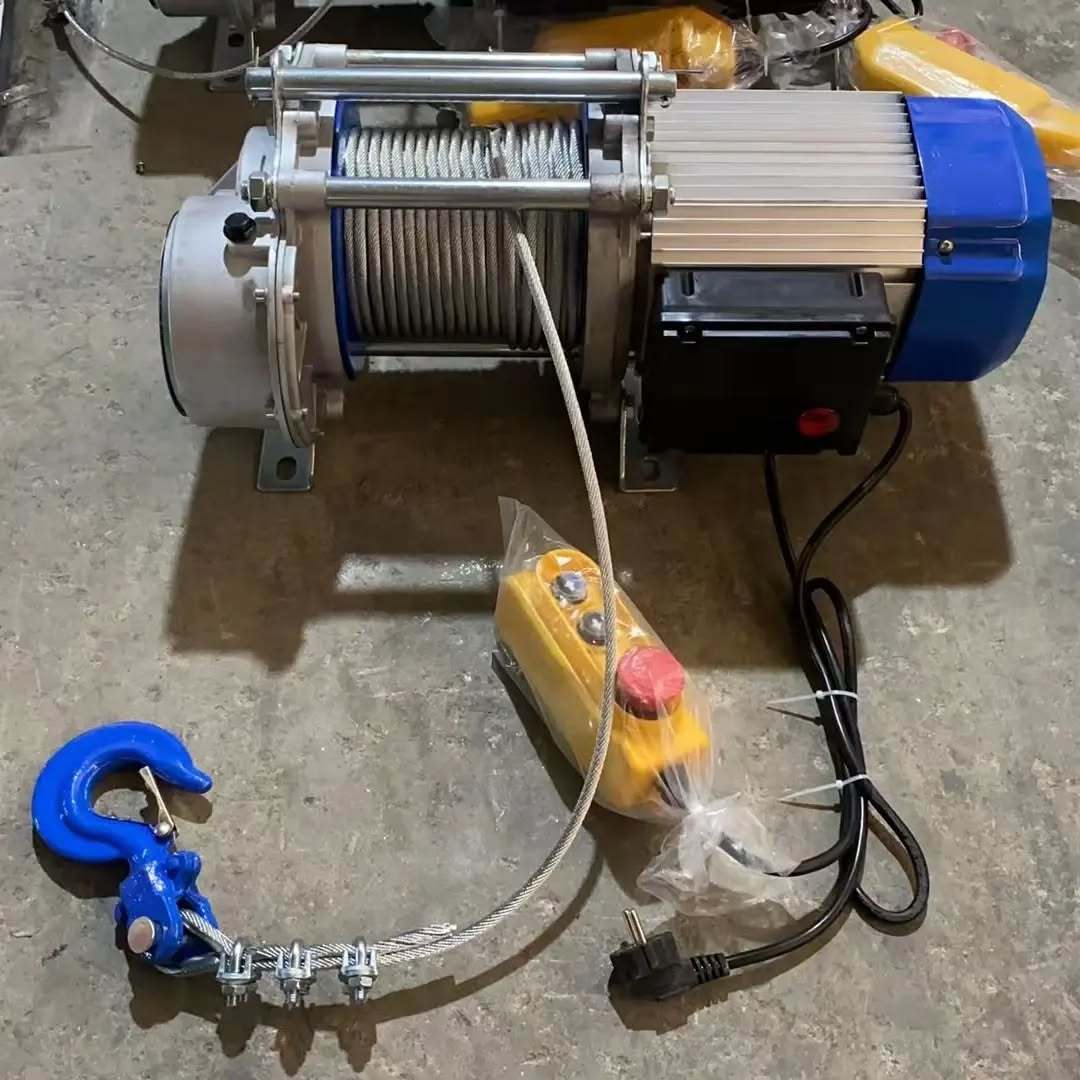

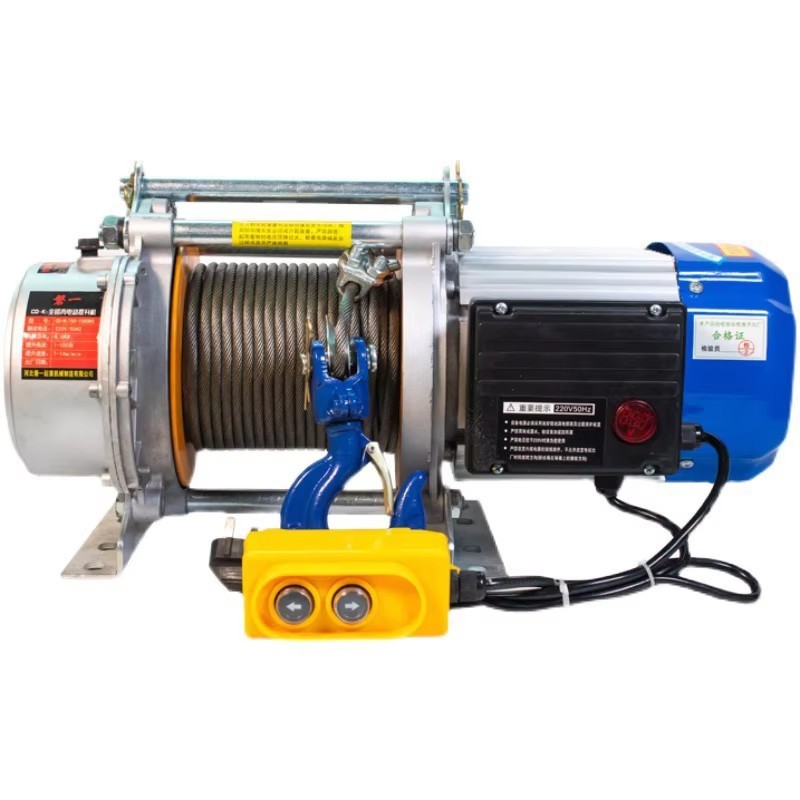

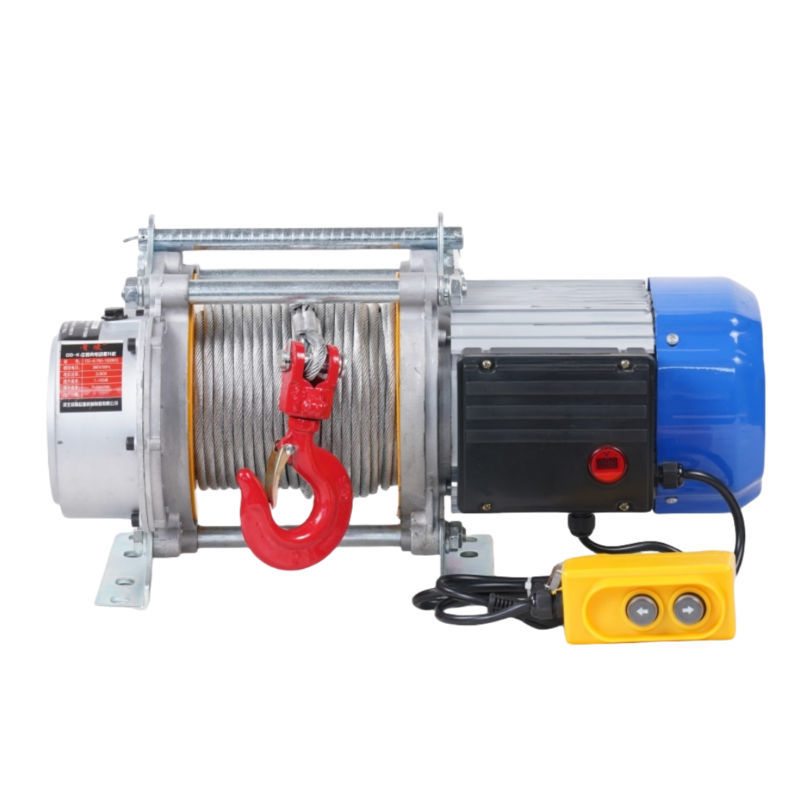

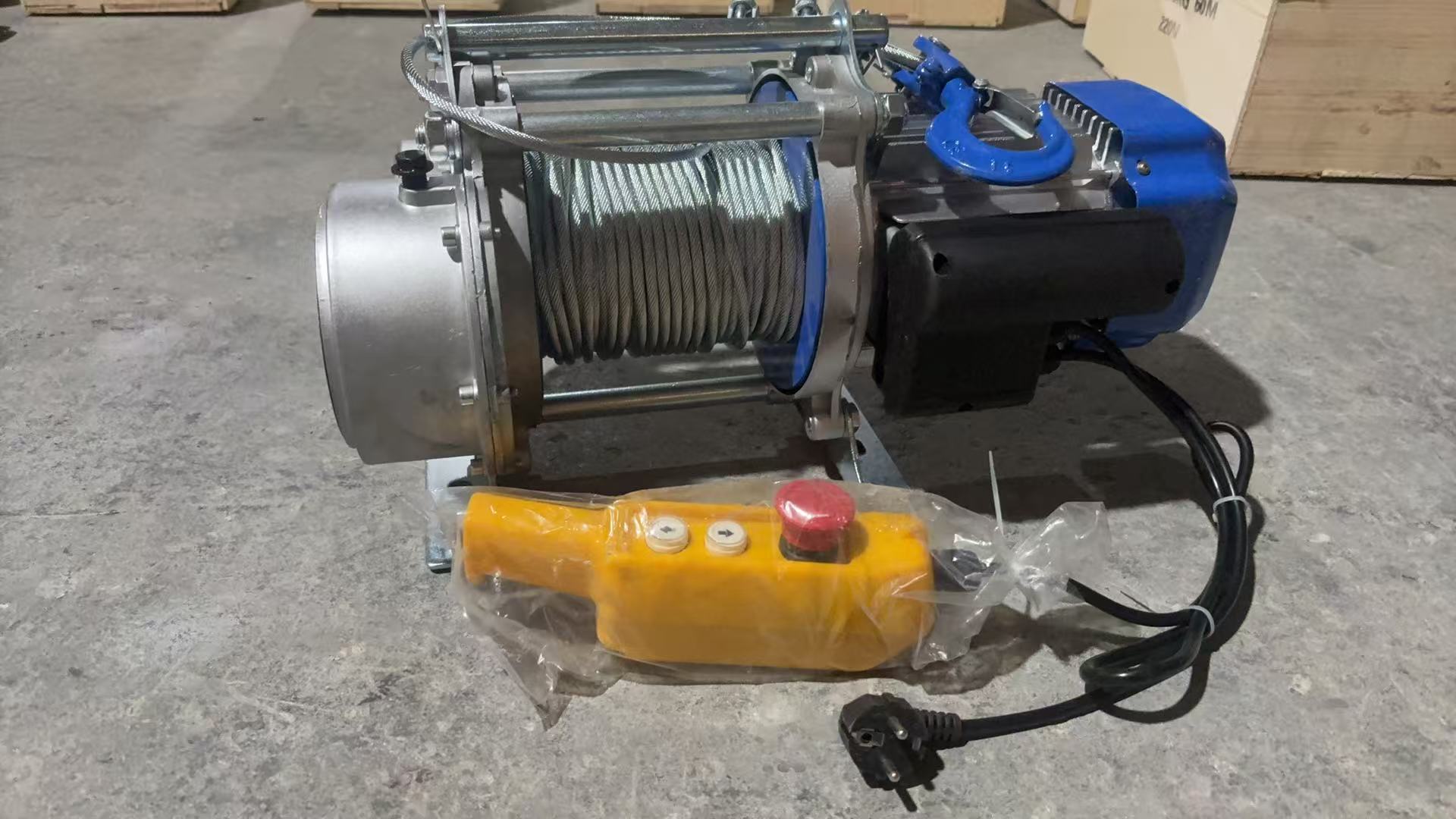

Aluminum shell electric winch is a light-duty wire rope lifting machine. Equipped with aluminum alloy housing, it is lightweight with excellent heat dissipation, suitable for frequent short-time operation. Powered by 220V single-phase electricity. Built-in power-off self-locking brake prevents load slipping. Widely used for construction decoration, rooftop material transport and light cargo lifting in warehouses. Easy installation, customized wire rope length available.

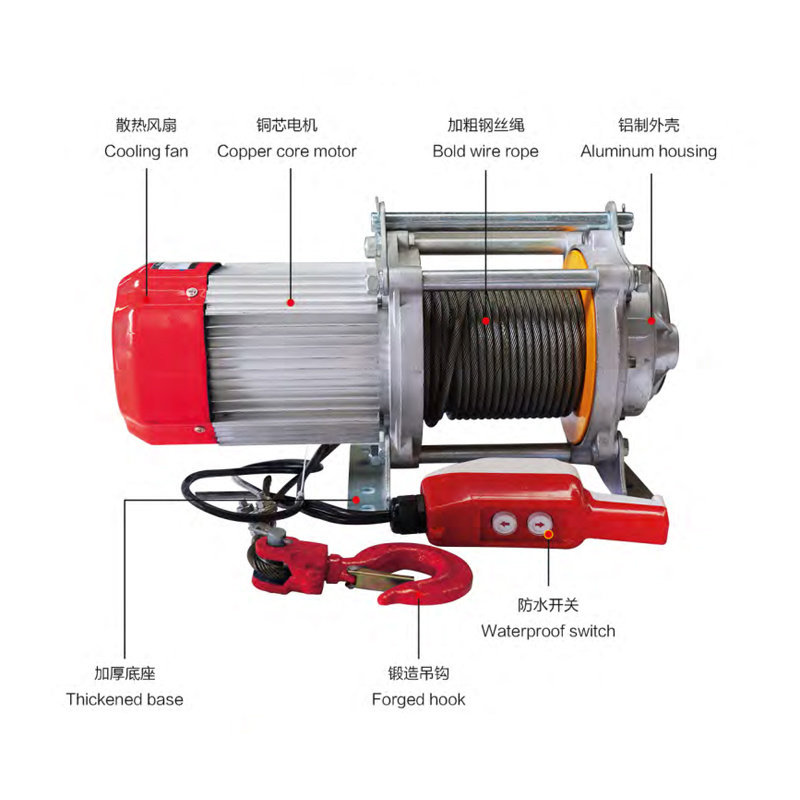

Product Features:

Aluminum Alloy Shell Efficient heat dissipation, lightweight and corrosion resistant, easy to transport.
Power-off Self-locking Brake Instant load locking upon power failure to avoid accidental load falling.
Portable & Simple Installation Suspension mounting available, compact design for indoor and outdoor light lifting.
Multiple Specifications & Customizable Various capacities optional; wire rope length and remote control can be customized.

Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable

Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable

Lightweight Small Electric Winch 220V Waterproof Electric Winch Portable

Product Specifications:

Model

Wire rope length

(m)

Capacity single rope / double rope

(kg)

Dia of rope

(mm)

Speed m/min Single hook /

double hook slow speed type

Speed m/min Single hook /

double hook fast type

 Power
400-800kg 30 280kg / 560kg 6mm 14m/7m/min 20m/10m/ 3KW
400-800kg 60 200kg / 400kg 6mm 14m/7m/min 20m/10m/ 3KW
400-800kg 100 120kg / 240kg 6mm 14m/7m/min 20m/10m/ 3KW
500-1000kg 30 350kg / 700kg 6mm 14m/7m/min 20m/10m/ 3KW
500-1000kg 60 250kg / 500kg 6mm 14m/7m/min 20m/10m/ 3KW
500-1000kg 100 150kg / 300kg 6mm 14m/7m/min 20m/10m/ 3KW
750-1500kg 30 525kg / 1050kg 7mm 14m/7m/min 20m/10m/ 4KW
750-1500kg 60 325kg / 750kg 7mm 14m/7m/min 20m/10m/ 4KW
750-1500kg 100 225kg / 450kg 7mm 14m/7m/min 20m/10m/ 4KW
750-1500kg 120 225kg / 450kg 7mm 14m/7m/min 20m/10m/ 4KW
1250-2500kg 30 875kg / 1750kg 10mm 14m/7m/min 20m/10m/ 5KW
1250-2500kg 60 625kg / 1250kg 10mm 14m/7m/min 20m/10m/ 5KW
1250-2500kg 100 375kg / 750kg 10mm 14m/7m/min 20m/10m/ 5KW
1250-2500kg 120 375kg / 750kg 10mm 14m/7m/min 20m/10m/ 5KW

Application Scenarios:

This electric winch is widely used for exterior construction, decoration material delivery, rooftop goods transport and light lifting in shops and warehouses. Compared with PA mini electric hoist, aluminum shell provides better heat dissipation for frequent intermittent construction work.
