Specifications
Application :
Elevator Parts
Warranty :
1 Year
MOQ :
1 piece
After-sale Service :
Online Technical Support, Other
Material :
Steel
Price :
$55-80 / piece
Brand Name :
Boguan
Design Style :
Modern
Place of Origin :
Zhejiang, China
Project Solution Capability :
others
Description

OMS-820 Elevator Overload Watching System Overload Alarm Elevator Load Measurement Controller Weighing Sensor Equipment

Elevator Load Weighing Device, Overload Switch, Weighing Sensor
The elevator load weighing device is a core safety control component, installed at the car bottom, rope head assembly or traction machine. It accurately detects the car load and feeds back full‑load/overload signals to the elevator mainboard to trigger overload alarm, door‑closing prohibition and operation interlock, preventing over‑load operation and meeting annual inspection standards.
Our product compatible with most domestic elevators and mainstream brands including Mitsubishi, Otis, Hitachi and Kone, suitable for passenger elevators, freight elevators, villa elevators and medical elevators. Equipped with high‑precision sensors, it features stable signal transmission, quick response, strong anti‑interference and anti‑false‑trigger performance. The sturdy metal housing is waterproof, dust‑proof, shock‑resistant and temperature‑resistant for harsh shaft environments.
It supports full‑load early warning, overload protection and self‑diagnosis, with weight self‑learning function without test weights. Easy to install and wire for direct replacement. It effectively protects traction machines, steel ropes and car structure, extending elevator service life with strong universality and convenient maintenance.




Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.

1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.

PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.

2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.

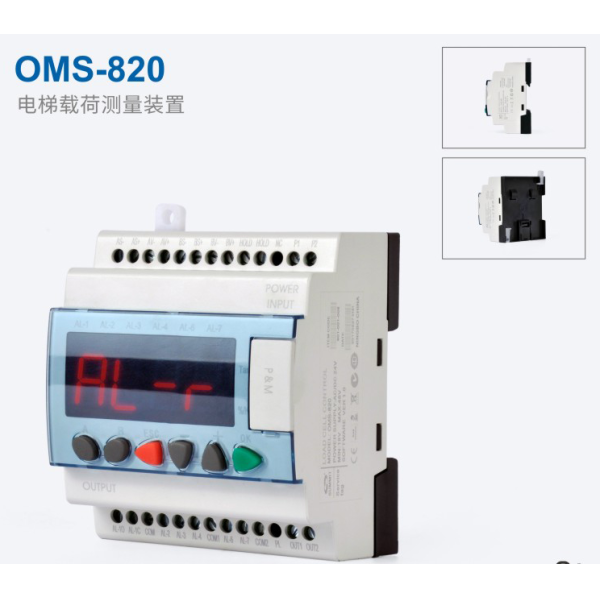

Model
OMS-820
Product Function

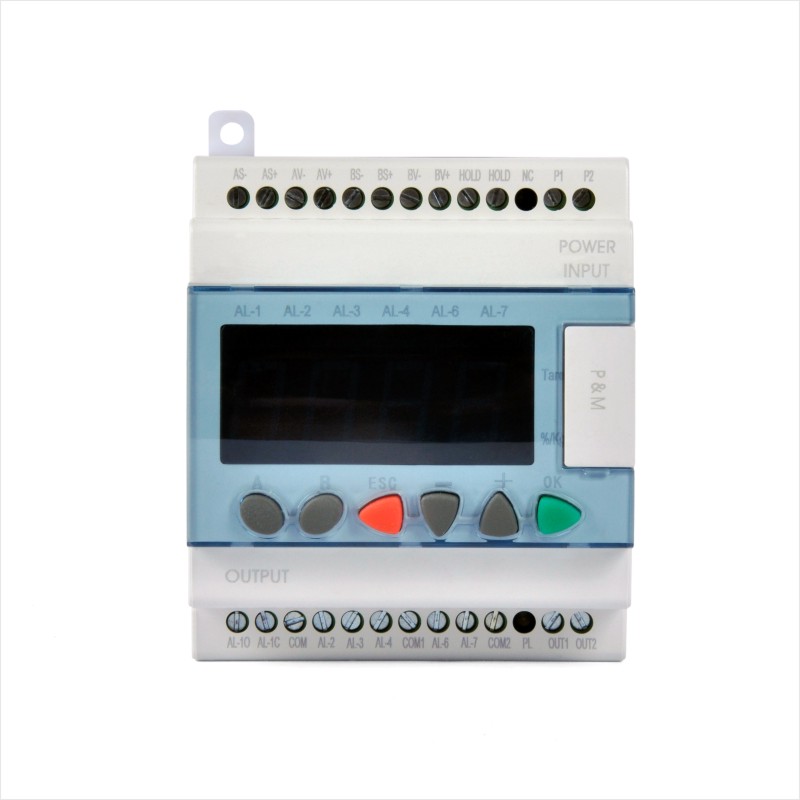

1.Four digit LED digital tube display.
2.Multi button operation,quick and easy debugging.
3.Green,high-efficiency,low energy power supply.
4.Broken and loose rope alarm output protection.
5.Wire rope tension imbalance alarm output and tension adjustment indication.
6. 2 sensor measurement channels (up to 8 channels can be increased).
7.Voltage or current analog output (* optional).
8.Car load status display (external display module * optional).
9.AC/DC 12~230V output at the "HOLD" end.
10.Custom settings for relay action mode.
Operating voltage
AC/DC 16~48V
Nominal power
≤4W
Load cell channel
2*
Relay number
6 (Overload,Full,Half empty,Rope loose,Rope deviation)
Contact load
1A 125 VAC / 2A 30VDC,5A 250VAC / 5A 30VDC
Display type
4 digits 0.36 inch LED
Display mode
Weight/Percentage
Key number
6
Voltage analog
-10~+10V,0~+10V
Current analog
4~20 mA
Sensor operating voltage
5 VDC
Signal hold voltage
AC/DC 12~230 V
Operating temperature
-20~+60 ℃
Size
90*84*58mm
Weight
260g
