ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range
ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range
ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range
ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range
Specifications
Brand Name :
Ecolite/ECOLTO/OEM/ODM
Model Number :
ECOLTO2406
Certification :
UN38.3 MSDS CE RoHS
Place of Origin :
China
MOQ :
100Units
Price :
Inquiry
Payment Terms :
T/T, L/C
Supply Ability :
2000Units per month
Delivery Time :
1-2 months
Packaging Details :
Carton Pallet Container
Usage scenario :
Solar tracker battery
Chemical Formula :
Lithium iron phosphate
Battery Voltage :
25.6V
Capacity :
6Ah
Energy :
153.6Wh
Resistance :
≤50mΩ
Efficiency :
0.98
Discharge Temperature :
-20℃ to 65℃
Charge Temperature :
-20℃ to 60℃
Storage Temperature :
0℃ to 25℃
BMS High Temperature Cut-off :
65℃
Description

ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range

Product specification

Lithium Iron Phosphate(LFP) ECOLFP2404(25.6V6Ah)

Electrical Parameters Mechanical Parameters
Nominal Voltage 25.6V Dimension(L×W×H) 192x86x75mm
Rated Capacity 6Ah 7.56x3.39x2.95"
Energy 153.6Wh Weight 1.9kg
Resistance ≤ 50mΩ Terminal Type +,TE 2293255-1;-,TE5-160526-9,MC4
Efficiency 0.98 Battery Housing PVC
Cycle Life(25℃,1C/1C,100％DOD) >2000cycles,Remaining capacity＞80％ Housing Protection IP20
Self Discharge ＜5% per Month Cell Type-Chemistry LiFePO4 Cell
Cell in Series/Parallel 8S/4P Communication(Optional) UART(Voltage,Current,Temperature)
Discharge Parameters Charge Parameters
Continuous Discharge Current 12A MPPT Range DC16V~DC36V
Pulse Discharge Current 40A (<1S) Max.Input Current 6A
Recommended Volt. Disconnect 20V BMS Charge Cut-off Voltage 29.6V
BMS Discharge Cut-off Voltage 20V
Reconnect Voltage 21.6V
Short Circuit Protection 200-500us
Temperature Parameters
Discharge Temperature -20 to 65 ℃
Charge Temperature 0℃ to 60℃
Storage Temperature 0 to 25℃
BMS High Temperature Cut-off

65 ℃

Power your solar tracking systems with confidence using our 25.6V 6Ah Solar Tracker Lithium Iron Phosphate Battery. Crafted with our self-developed LiFePO4 cells, it offers superior safety, reliability, and performance.

FEATURES
Lithium Iron Phosphate (LiFePO4): Our proprietary LiFePO4 cells ensure top-notch safety with high thermal and chemical stability, minimizing risks.
Integrated BMS: Monitors and protects against overcharging, discharging, and short circuits for extended lifespan.
Integrated MPPT: Maximizes solar panel efficiency, optimizing energy harvest.
Tailored for Solar Trackers: Compact, lightweight, and easy to integrate, it fits single or dual-axis systems.
Five-Year Warranty: We stand by our product's quality with a comprehensive guarantee.

PERFORMANCE
Long Cycle Life: Over 2000 cycles with 80% capacity retention at 25°C, 1C/1C, 100% DOD.

High Density & Discharge Current: Stores more energy in a small space and delivers quick power.
Wide Temperature Range: Operates from -20°C to 60°C, ideal for harsh conditions.
Low Weight & Maintenance-Free: Easy installation and no upkeep required.
Fast Charging: Recharges quickly for uninterrupted use.
Eco-Friendly: Zero emissions for a sustainable energy solution.
Choose our 25.6V 6Ah Solar Tracker Lithium Iron Phosphate Battery for a reliable, high-performing power source. Contact us to learn more.

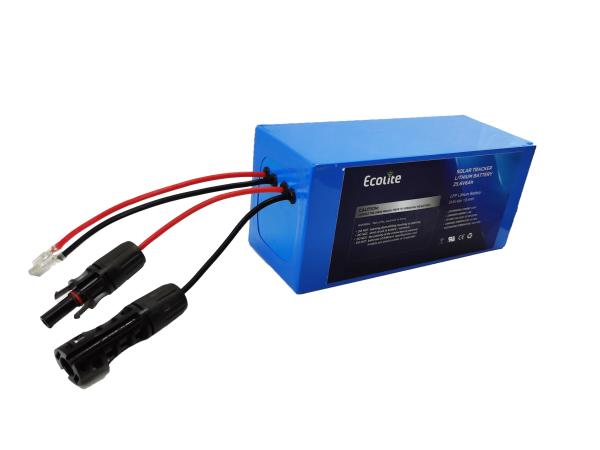

Three views of product
ECOLFP2404 24V 6Ah LiFePO4 Solar Tracker Battery With High Temperature Range
