180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
Specifications
Certification :
ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Supply Ability :
1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier
Delivery Time :
15 work days
Packaging Details :
Eco-friendly paper packaging
Type :
Servo Motor
Ambient Temperature :
-20℃-50℃
Phase :
Three-Phase
Application :
CNC machine
Frequency :
50/60Hz
Rated current( A ) :
7.5
Protect Feature :
Waterproof
Weight (kg) :
20.5
Rated speed (rpm) :
1500
Rated Votage ( v ) :
380
Holding torque(N.m) :
19
AC Voltage :
AC380V
Model Number :
180M19015B+M1534P
Brand Name :
LICHUAN
Place of Origin :
China
MOQ :
1
Price :
$560.70-667.80 / piece
Rated Power ( w ) :
3KW
Bit :
23 bit incremental
Warranty :
3 months ~ 1 year
Motor size :
Flange 180
Efficiency :
IE 2
Description
Lichuan 180M19015B 380V 23Bit 3phase 3KW 19Nm Servo Motor Driver Controller with Brake

Packing List
NO.
Product Name
Model / Description
Quantity
1

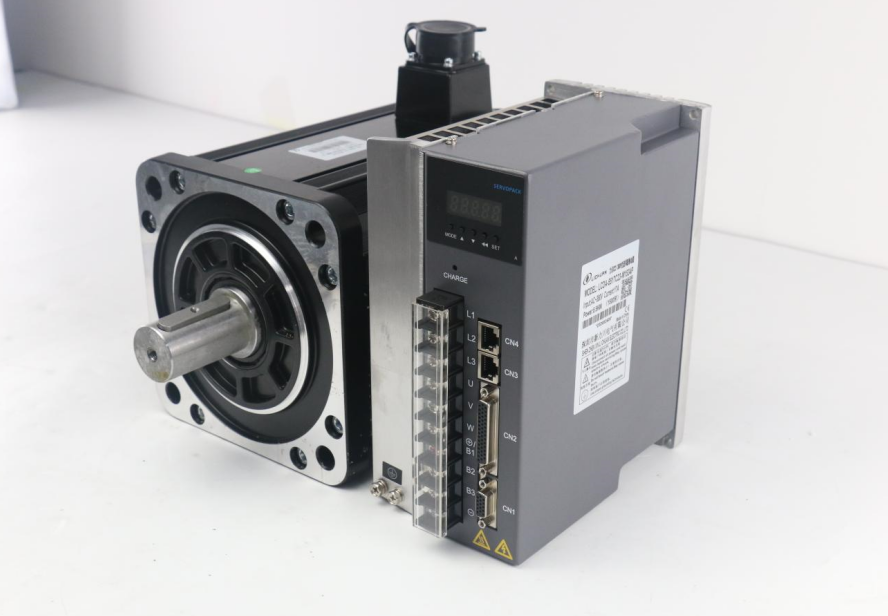

Lichuan 3KW 180M19015B Servo Motor
180M19015B
1
2
Lichuan 3KW AC Servo Driver
LCDA-3008C23-M1534P
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1
Products Description
Product Name
3 Phase Servo Motor Drive Kit
Type
180M19015B+M1534P
Rated voltage(V)
380
Rated current (A)
7.5
Rated speed(rpm)
1500
Holding torque(N.m)
19
Peak torque(N.m)
47
Weight(Kg)
20.5
Bit
23 bit incremental
Safety class
IP66
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
Lichuan 180 series AC servo motor includes 2.7KW, 2.9KW, 3KW, 3.7KW, 4.3KW, 4.5KW, 5.5KW, 7.5KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
Application Area
180M19015B 380V 23Bit 3 Phase 3KW 19Nm Servo Motor Driver Controller With Brake
