3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
Specifications
Model Number :
LCMT-30MCC23NB-130M15020B+LCDA-3008C23-M1534P
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$423.90-487.80 / set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
AC Voltage :
380V
Phase :
Three-Phase
Efficiency :
IE 2
Frequency :
50/60Hz
Protect Feature :
waterproof
Type :
Servo Motor
Warranty :
3 months ~ 1 year
Product Name :
3 Phase Servo Motor Drive Kit
Rated Voltage :
380V
Rated power(KW) :
3KW
Rated current (A) :
12
Rated speed(rpm) :
2000
Holding torque(N.m) :
15
Peak torque(N.m) :
30
Application :
General Machinery
Protection class :
IP66
Weight(Kg) :
14.4
Description

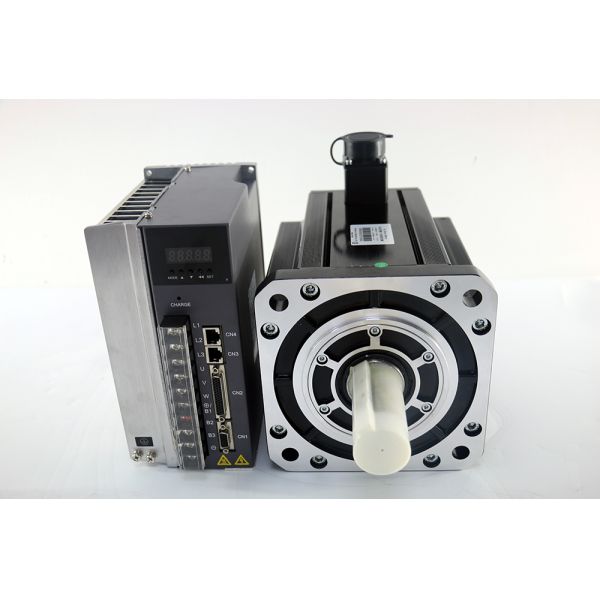

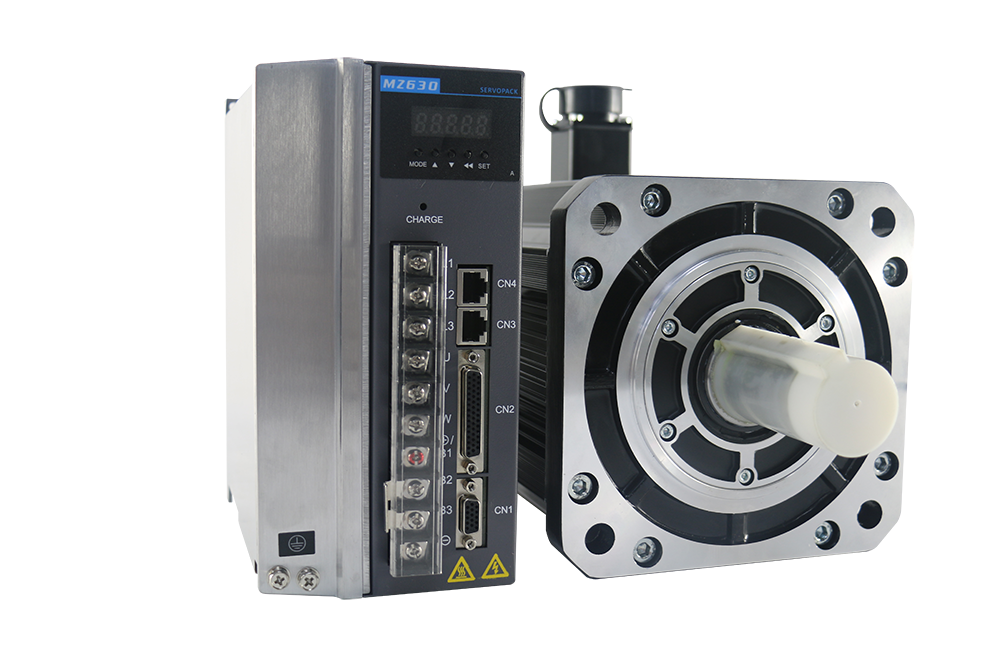

Lichuan Servo Motor 3000W 380V 15Nm 23bit Incremental 3Phase AC Servo Motor 130M15020+M1534P 2000RPM Servo Motor for CNC Machine
Packing List
NO.
Product Name
Model / Description
Quantity
1

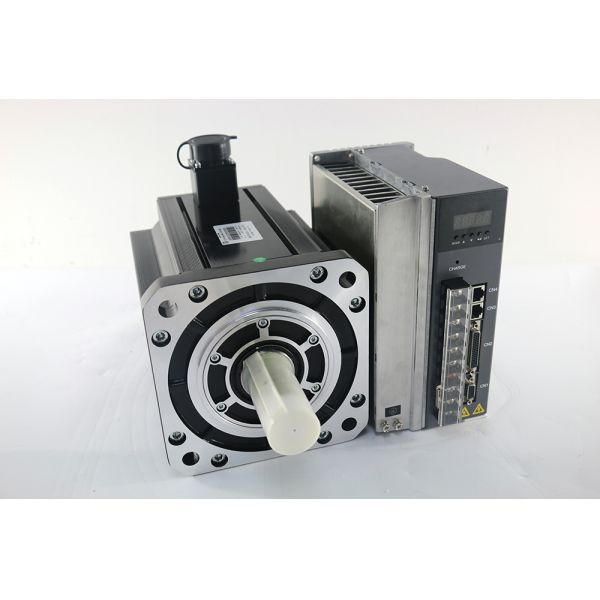

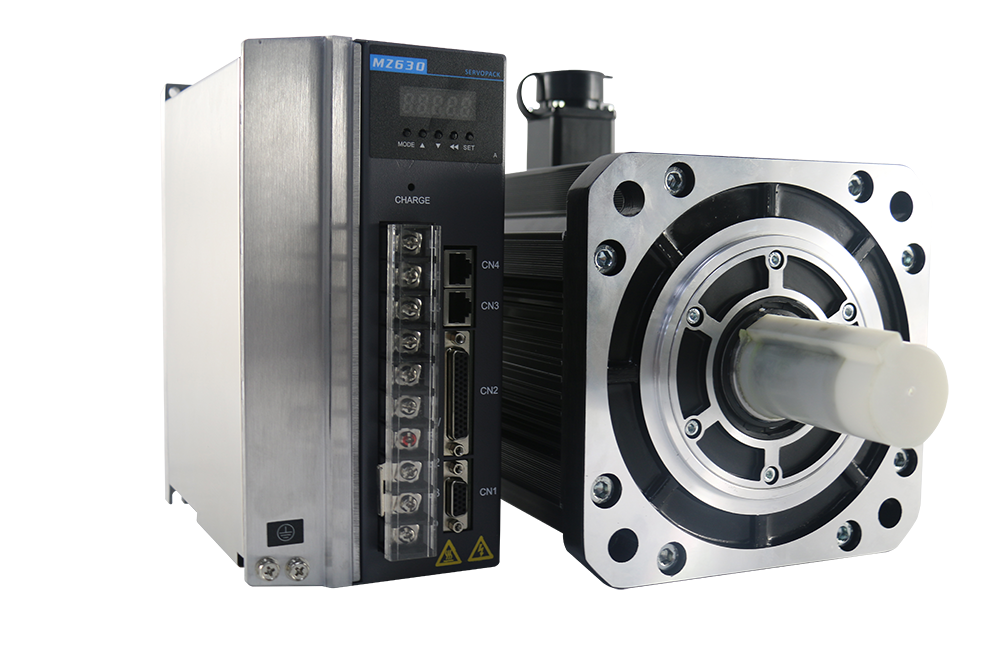

Lichuan 3KW 130M15020B Servo Motor
130M15020B
1
2
Lichuan 3KW AC Servo Driver
M1534P
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
Products Description
Product Name
3 Phase Servo Motor Drive Kit
Type
130M15020B+M1534P
Rated power(KW)
3
Rated voltage(V)
380
Rated current (A)
12
Rated speed(rpm)
2000
Holding torque(N.m)
15
Bit
23 bit incremental
Weight
14.4
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM

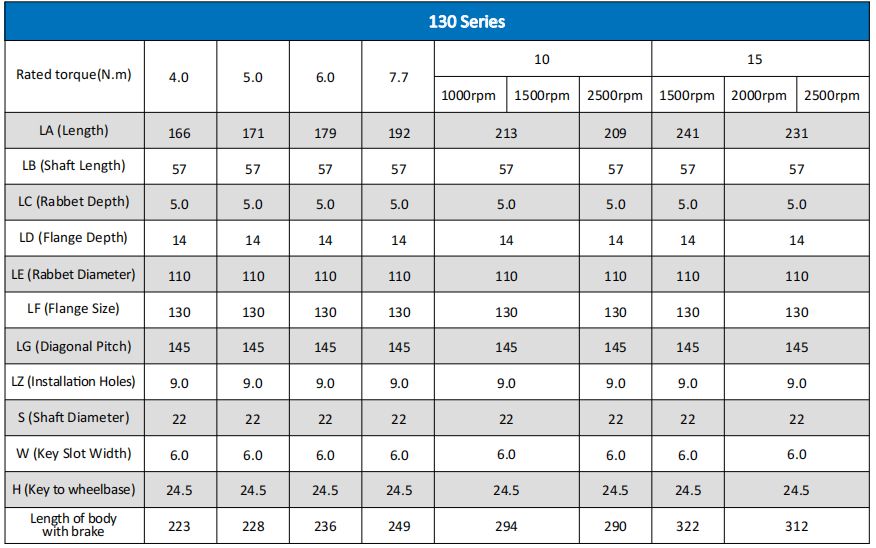

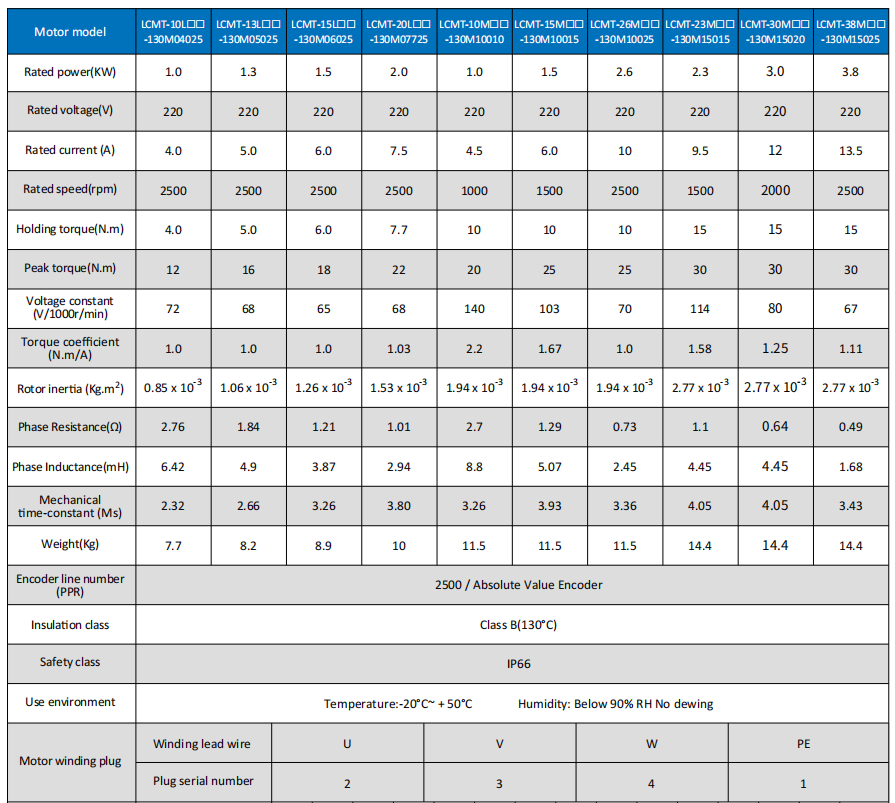

Lichuan 130 series AC servo motor contains 1KW,1.3KW,1.5KW, 2KW, 2.3KW, 2.6KW, 3.8KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and high temperature permanent magnet material , Servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high precision control applications.
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
Application Area
3000W 380V 15Nm 23bit Incremental Three Phase Ac Servo Motor 130M15020+M1534P 2000RPM
