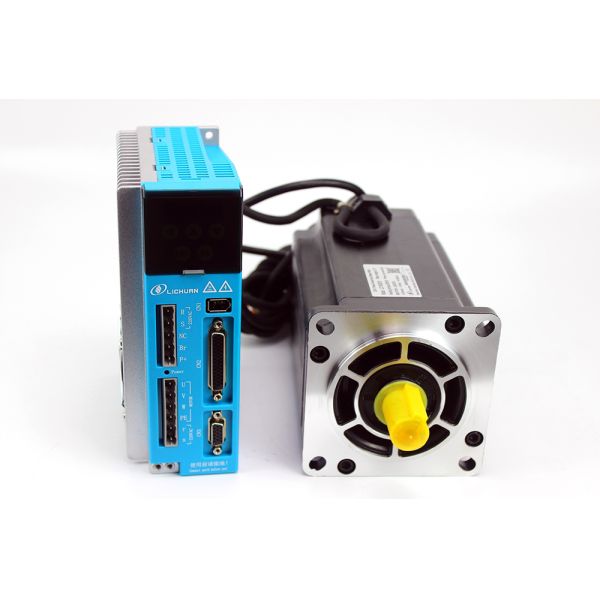

Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Specifications
Type :
stepper motor
Current / Phase :
6.9A
Step Angle Accuracy :
+/-5%
Driver pulse feedback frequency :
200Khz
Motor shaft diameter :
19mm
Driver step range :
200-51200ppr
Phase :
3, 3phase
Holding Torque :
20n.m
Warranty :
3 months ~ 1 year
Motor Encoder :
1000ppr
Motor shaft length :
40mm
Model Number :
LC110H3219+LCDA2260E
Brand Name :
Lichuan
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
$198-214.20 / set
Motor weight :
11.1KG
Driver voltage :
150-230VDC
Description

Packing List
NO.
Product Name
Model / Description
Quantity
1
3ph Nema42 closed loop stepper motor
LC110H3219
1
2
3phase closed loop stepper drive
LCDA2260E
1
3
Encoder Cable
Standard (3m)
1
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Products Description

3 phase Closed-loop Stepper Drive LCDA2260E
LCDA2260E adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. When continuous overload of motor occurs, the Driver will timely output alarm signal, it is as reliable as AC servo system. Applies to motor installation dimensions which are fully compatible with Nema34/42 series stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Lichuan 3-phase digital Hybrid Servo Drive
Product Model
LCDA2260E
Product Size
202 x 139 x 75mm
Product Weight
1.33KG
Alarm Output
stand by
Power Range
AC:220V
Subdivision Range
Adjustable on the drive
Current Range
Peak current 6A
Pulse Forml:Pulse + direction
Drice Motor:Three-phase 86 closed-loop stepper motor
Max Pluse Response Frequency:200KHZ(Pulse Width Greater than 2.5μs)
Signal voltage:Default + V5,connected to +V12/V24 requires series resistor
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Three-phase 110mm closed-loop stepper motor
Model
LC110H3219
Weight(kg)
11.1KG
Length(mm)
219mm
Holding Torque(N.m)
20N.m
Phase Current(A)
6.9A
Rotational Inertia(g.cm²)
17400
Phase Resistance(Ω)
1.859
Step Angle(°)
1.2
Shaft Diameter(mm)
φ19
Shaft Extension(mm)
Keyway 6 x 30
Shaft Length(mm)
40mm
Phase Inductance(mH)
7.26
Lead wire(No.)
3
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
Application Area
Nema42 20NM 3 Phase Closed Loop Stepper Motor Driver Kit CNC LCDA2260E+LC110H3219
