Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Specifications
Model Number :
180M48015B+M1532P
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
2 pieces
Price :
$945.90-1,052.10 / piece
AC Voltage :
220V
Phase :
Three-Phase
Rated Power :
7.5KW
Rated Speed :
1500 RPM
Efficiency :
IE 2
Frame :
180mm
Frequency :
50/60Hz
Motor Mounting Type :
Flange
Protect Feature :
waterproof
Type :
Servo Motor
Warranty :
3 months ~ 1 year
Rated Power ( w ) :
7.5KW
Rated Votage ( v ) :
220
Rated current( A ) :
20
Rated speed (rpm) :
1500
Holding torque(N.m) :
48
Weight (kg) :
40
Encoder line number (PPR) :
2500
Motor size :
Flange 180
Ambient Temperature :
-20℃-50℃
Application :
CNC machine
Description

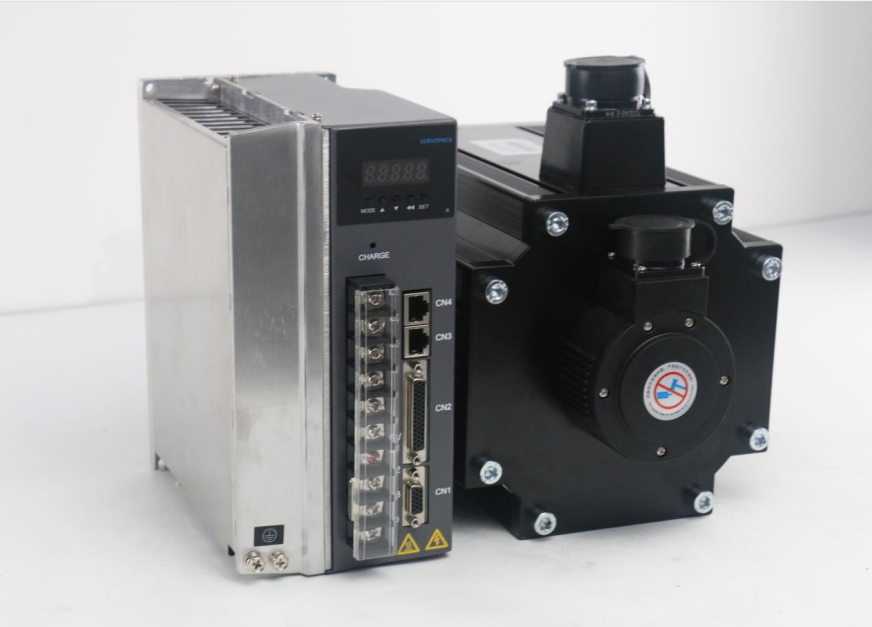

LiChuan 180M48015B+M1532P high position 7.5KW 220V ac servo motor with servo drive controller servo motor for cnc machine

NO. Product Name Model / Description Qty
1 Lichuan 7.5KW 180M48015B Servo Motor LCMT-75MCC23NB-180M48015B 1
2 Lichuan 7.5KW AC Servo Driver LCDA-7521C23-M1532P 1
3 Motor Cable Standard (3m) 1
4 Encoder Cable Standard (3m) 1
5 Servo Driver Instruction Book Standard 1
Product Description

Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PProduct Name: 180 series AC servo motor


Lichuan 180 series AC servo motor includes 2.7KW, 2.9KW, 3KW, 3.7KW, 4.3KW, 4.5KW, 5.5KW, 7.5KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications

Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P

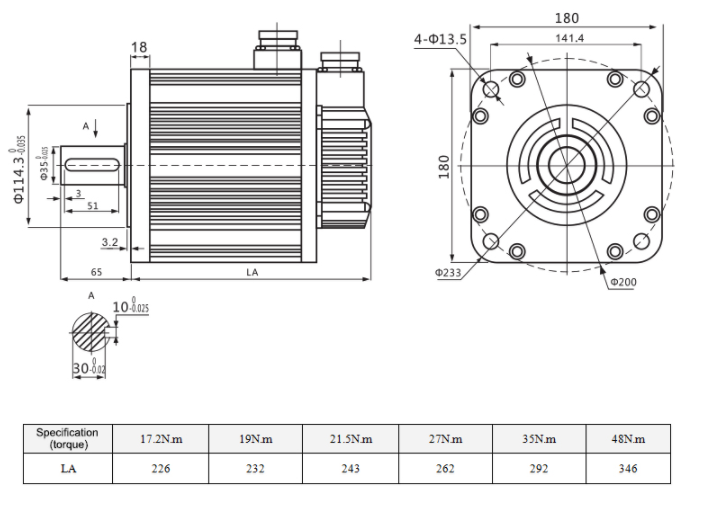

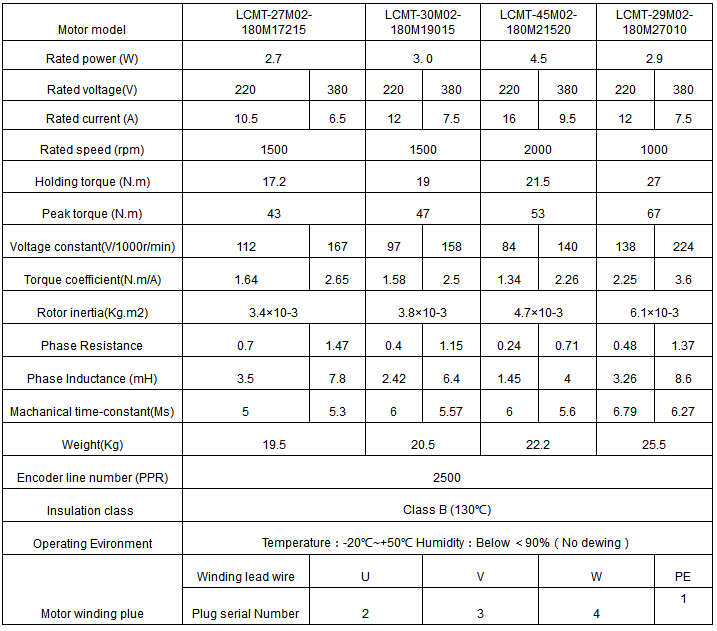

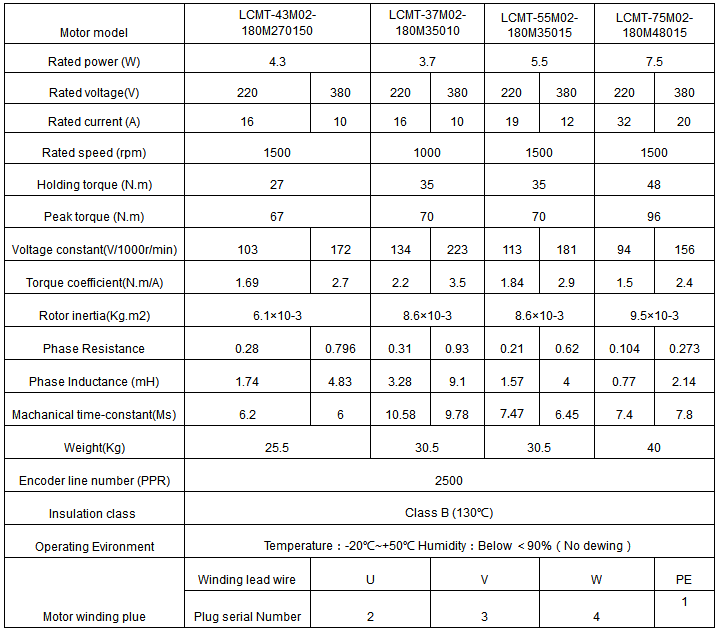

180mm Series Servo motor parameter specification :

Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
Encoder Plug Signal lead wire 5V 0V A+ B+ Z- A- B- Z- U+ V+ W+ U- V- W- PE
Plug serial number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P

Encoder Plug Signal lead wire 5V 0V A+ B+ Z- A- B- Z- U+ V+ W+ U- V- W- PE
Plug serial number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

Suitable for a variety of sports control automation equipment and equipment, such as: mechanical arm, cutting machine, fuel injection machine, ultrasonic equipment, feeding equipment, printing equipment, medical equipment, packaging equipment, lithium battery equipment, CNC lathes, spraying equipment, Equipment and so on.

Lichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532PLichuan 7.5KW 220V 23Bit 3 Phase Servo Motor With Drive Controller 180M48015B+M1532P
