180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor
180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor
180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor
180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor
180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor
180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor
Specifications
Model Number :
180M48015B+M1534P
Brand Name :
LICHUAN
Place of Origin :
Guangdong, China
MOQ :
2 pieces
Price :
$841.50-945 / piece
AC Voltage :
380V
Phase :
Three-Phase
Efficiency :
IE 2
Frequency :
50/60Hz
Protect Feature :
waterproof
Type :
Servo Motor
Warranty :
3 months ~ 1 year
Rated Power ( w ) :
7.5KW
Rated Votage ( v ) :
380
Rated cument( A ) :
20
Rated speed (rpm) :
1500
Holding torque(N.m) :
48
Weight (kg) :
40
Encoder line number (PPR) :
2500
Motor size :
Flange 180
Ambient Temperature :
-20℃-50℃
Application :
CNC machine
Description

Lichuan Servos 180M48015B Servo Motor 7.5KW 1500rpm 48nm 380V Ac Servo Motor Driver With Brake Servomotor De Motor De Engranajes

180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor

Product Description

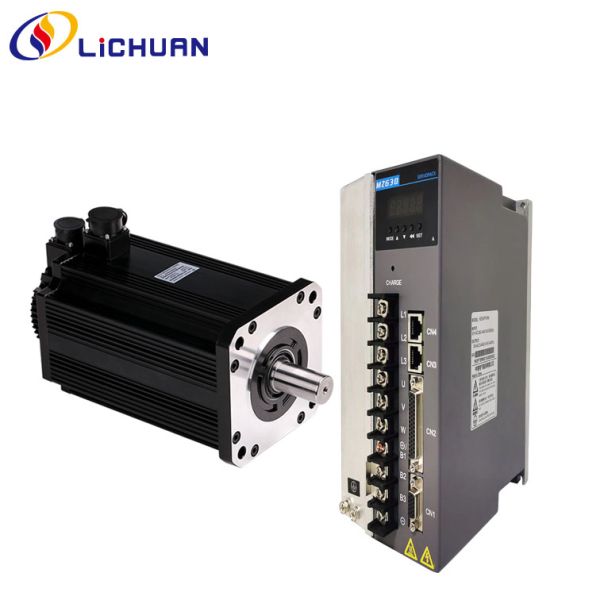

Lichuan180M48015B servo motor 7.5KW 1500rpm 48nm 380V 7.5KW ac servo motor driver with brake for cnc machine

Packing list

NO. Item No. Description QTY
1 LCMT-75MCC23NB-180M48015 Lichuan 7.5KW Servo Motor Driver 1PC
2 LCDA-7521C23-M1534P 180 Motor, 48N.m, 7.5KW, 1500rpm, 3phase 380v 1PC
3 Lichuan Power cable 3M servo power cable (Longer cable available) 1PC
4 Lichuan Encoder cable 3M servo encoder cable (Longer cable available) 1PC
5 Lichuan Instruction book Instruction book 1PC

Product Description

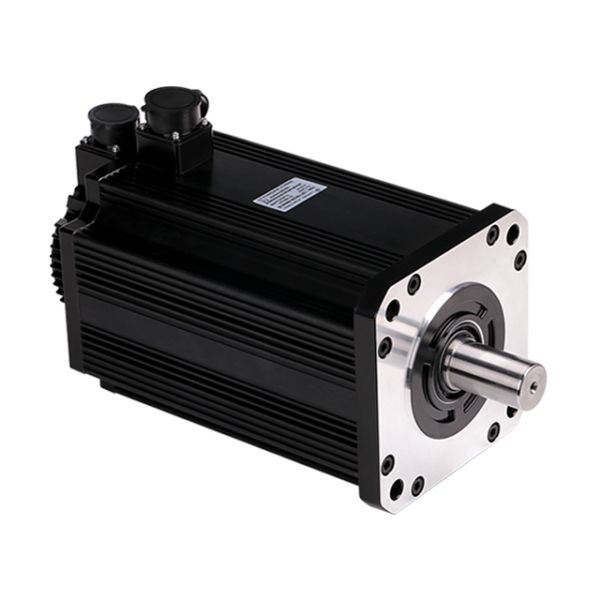

>>>Lichuan 3Phase 380V 7.5KW AC servo motor Flange 180 series information

Lichuan 180 series AC servo motor includes 2.7KW, 2.9KW, 3KW, 3.7KW, 4.3KW, 4.5KW, 5.5KW, 7.5KW 6.7KW-41KWpower specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications

Lichuan 3phase 380V 6.7KW AC servo motor Flange 180 series specification:

180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor

Product Name: 180 series AC servo motor


Lichuan 180 series AC servo motor includes 2.7KW, 2.9KW, 3KW, 3.7KW, 4.3KW, 4.5KW, 5.5KW, 7.5KW-41KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications

180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor

180mm Series Servo motor parameter specification :

Encoder Plug Signal lead wire 5V 0V A+ B+ Z- A- B- Z- U+ V+ W+ U- V- W- PE
Plug serial number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

Encoder Plug Signal lead wire 5V 0V A+ B+ Z- A- B- Z- U+ V+ W+ U- V- W- PE
Plug serial number 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1

180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor

180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor

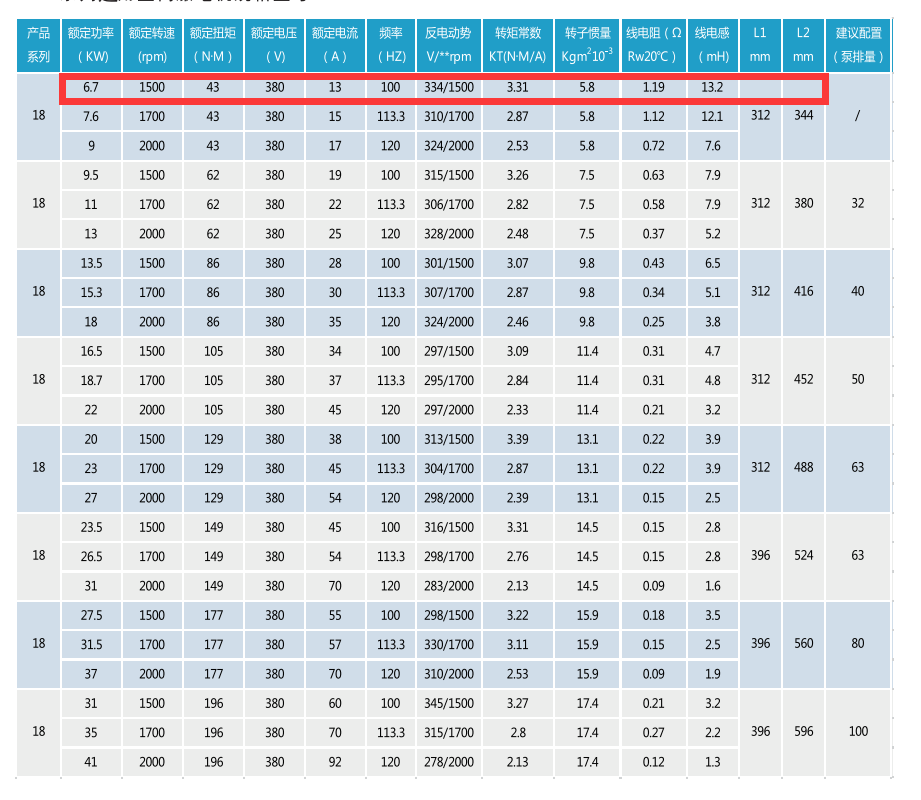

Lichuan Flange 180mm 3phase 380V Series Servo motor parameter specification :

180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor

Suitable for a variety of sports control automation equipment and equipment, such as: mechanical arm, cutting machine, fuel injection machine, ultrasonic equipment, feeding equipment, printing equipment, medical equipment, packaging equipment, lithium battery equipment, CNC lathes, spraying equipment, Equipment and so on.

180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor180M48015B 7.5KW 1500rpm 48nm 380V AC Servo Motor Driver With Brake Servomotor
