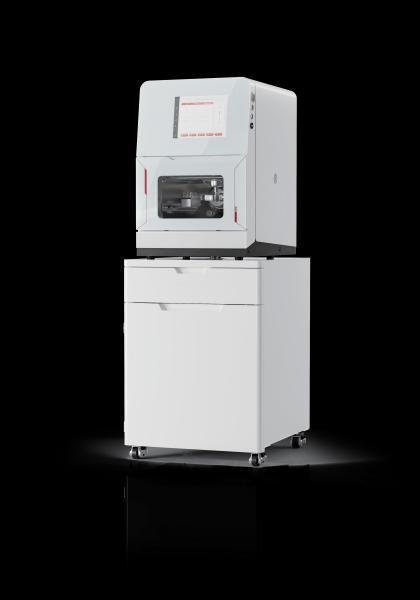

5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC
5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC
5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC
5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC
5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC
5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC
Specifications
Brand Name :
LEOTECH
Model Number :
LMM-5
Certification :
IOS CE
Place of Origin :
Chongqing, China
MOQ :
1 set
Price :
$13200/sets
Product Name :
LMM-5 Milling Machine
Material :
Zirconia, PMMA, Wax, Glass Ceramic
Usage :
Dental Restoration, Jewelry Making
Feature :
5-Axis Control, Wet & Dry Milling
Tool Change :
18 Tools Automatic
Size :
685×770×1700mm
Spindle Speed :
60,000 RPM
Power :
2.5 KW
Weight :
150 kg
Description

5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC

The LMM-5 is a versatile 5-axis milling machine engineered for precision processing of dental and industrial materials including zirconia, PMMA, and glass ceramics. Featuring an integrated mineral casting frame and half-open blank holder, it ensures long-term stability and easy operation. With an 18-tool automatic changer and 60,000 RPM water-cooled spindle, it delivers efficiency and accuracy for both dry and wet milling applications.

Product Features:

  • 5-axis simultaneous control for complex geometries

  • Automatic tool changer with 18 positions

  • Industrial-grade calibration (±0.05mm)

  • Compatible with all mainstream CAM software

  • Renewal function after power outage

Technical Specifications:

  • Processing Range: X=160mm, Y=115mm, Z=105mm

  • Axis Rotation: A=±360°, B=+90°/-30°

  • Spindle Power: 2.5 KW, Water-Cooled

  • Dimensions: 525*700*784mm

  • Weight: 150 kg

90 Degree Processing

5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC

Industrial-grade automatic calibration (error ±0.05mm)

5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC

18 Tool Position Uninterupted Milling Life Monitoring

5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC

High Power Spindle

5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC

Structure Parameters

Number of axes 5
Millable material Zirconia/PMMA/Wax/Glass Ceramic/Ti/PEEK
Processing method Dry/Wet Milling
Dimension 525x700x784mm
Weight 150kgs
Automatic tool change quantity 18
5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC

Dry&Wet Switching System

5-Axis Wet Dry Milling Machine LMM-5 For Zirconia Ceramic PMMA with 18 Tools ATC

Input

Power supply Single-phase AC220V 50/60Hz voltage
Power 3.7 KW
Air supply pressure 6 Bar

Spindle

Power AC 2.5KW
Cooling method
Water cooling
Speed
60,000 rpm
Collet
Φ6 mm

Route

X,Y,Z axis 160x115x105mm
A,B axis A:± 360° B:+90°,- 30 °
