6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10503-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
6250-6750MHz
VSWR :
<2.0
Peak Gain :
14dBi
Impedance :
50
Description


1. Specification

A. Electrical Characteristics
Frequency 6250-6750MHz
S.W.R. <= 2.0
Antenna Gain 14dBi
Polarization V
Horizontal Beamwidth 45±5°
Vertical Beamwidth 30±5°
F/B >17dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female
Dimension 97*97*23mm
Radome material ABS
Weight 0.25Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

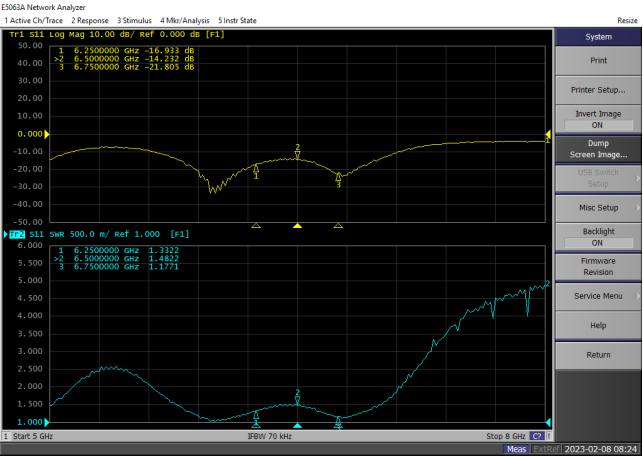

2.1 VSWR

6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization



2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

6250

13.1

6300

13.5

6350

13.7

6400

13.6

6450

14.0

6500

14.1

6550

14.1

6600

13.9

6650

14.1

6700

14.0

6750

13.5

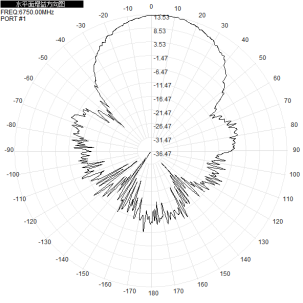

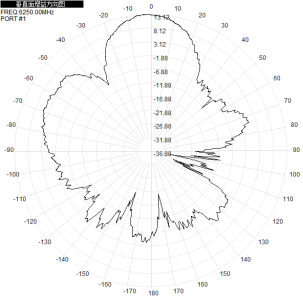

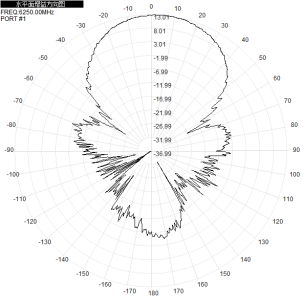

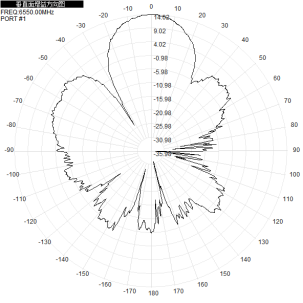

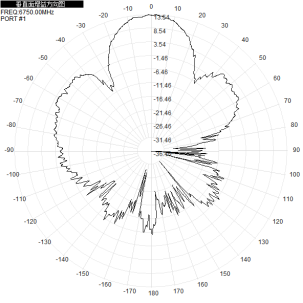

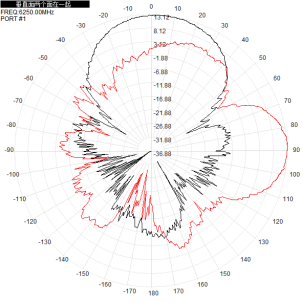

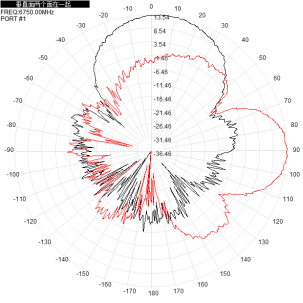

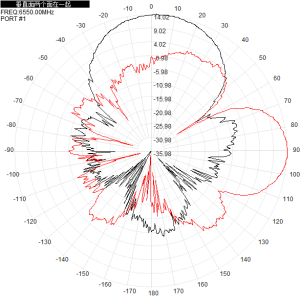

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
6250MHz 6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization 6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization 6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6500MHz 6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization 6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization 6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
6750MHz 6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization 6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization 6-7G 6250-6750M 14dbi Outdoor Directional Antenna Single Polarization
