Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10542-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
902-928MHz
VSWR :
<2.0
Peak Gain :
9dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Port Port1 Port2
Frequency 902-928MHz 902-928MHz
S.W.R. <2.0 <2.0
Antenna Gain 9dBi 9dBi
Polarization +45° -45°
Horizontal Beamwidth 60-65° 65-66°
Vertical Beamwidth 66-68° 66-68°
F/B >18dB >18dB
Impedance 50Ohm 50Ohm
Max. Power 50W 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Dimension 340*280*80mm
Radome material UPVC
Weight 2.3Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

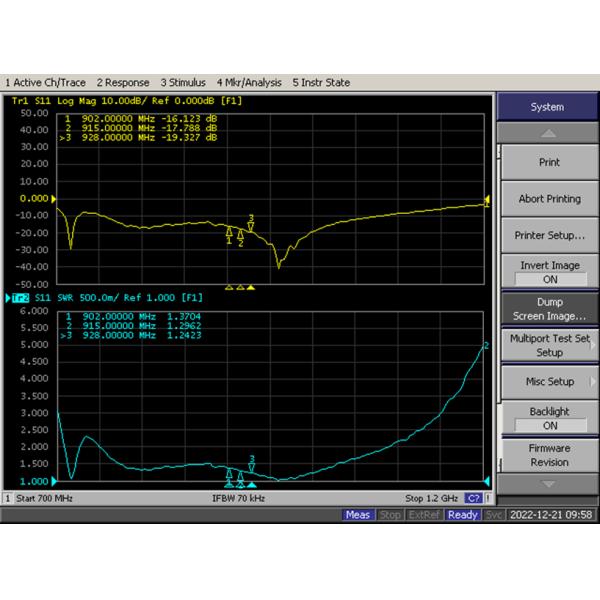

2.1 VSWR

Port1 +45°

Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80

Port2 -45°

Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80



2.2 Total Efficiency & Gain:

Port 1 +45° Port 2 -45°
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
902 9.1762 902 8.9848
904 9.1623 904 8.9836
906 9.2145 906 9.0329
908 9.3154 908 9.1358
910 9.4156 910 9.2406
912 9.4843 912 9.296
914 9.5353 914 9.3349
916 9.6105 916 9.4001
918 9.6878 918 9.4748
920 9.7453 920 9.5304
922 9.7272 922 9.5167
924 9.7226 924 9.5067
926 9.7119 926 9.5041
928 9.7102 928 9.5192

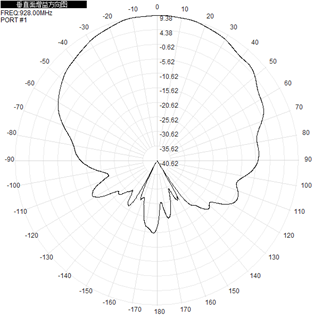

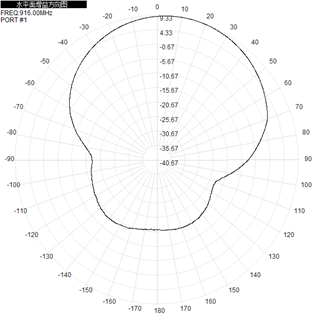

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
902MHz Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
916MHz Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
928MHz Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
902MHz Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
916MHz Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
928MHz Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80 Flat Panel RFID Outdoor Directional Antenna 2 Port 902-928 MHz 9.5dBi 340x280x80
