5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10484-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
5150-5850MHz
VSWR :
<2.0
Peak Gain :
15dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
S.W.R. <= 2.0
Antenna Gain 15dBi
Polarization Vertical
Horizontal Beamwidth 40±5°
Vertical Beamwidth 40±5°
F/B >20dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type

N Female connector
Dimension 97*97*23mm
Radome material ABS
Weight 0.11Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

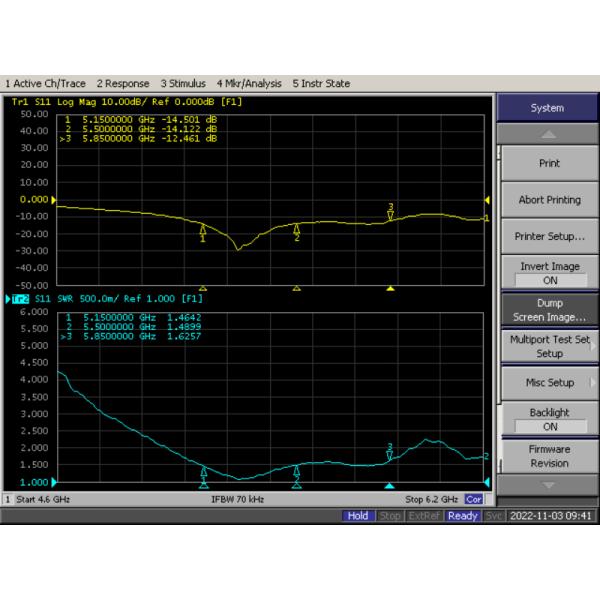

2.1 VSWR
5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
5150 13.6
5200 13.8
5250 14.1
5300 14.3
5350 14.5
5400 14.8
5450 14.9
5500 15.1
5550 15.5
5600 15.4
5650 15.4
5700 15.3
5750 15.5
5800 14.9
5850 14.9

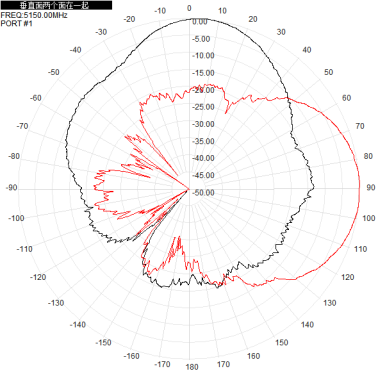

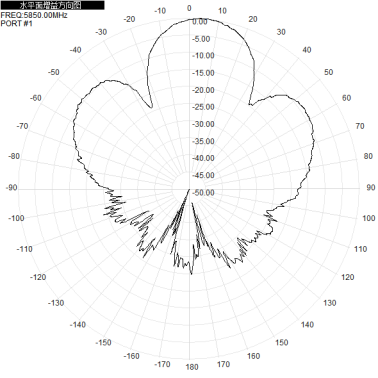

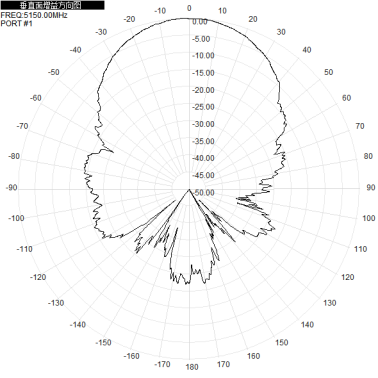

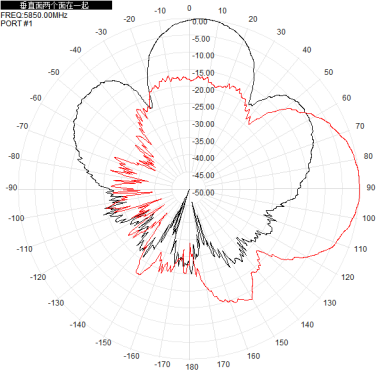

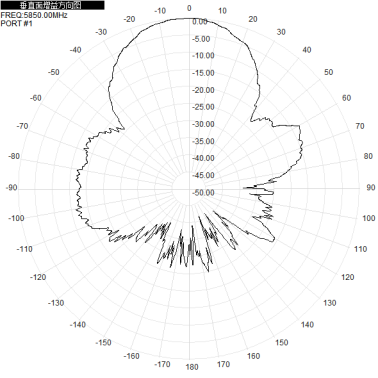

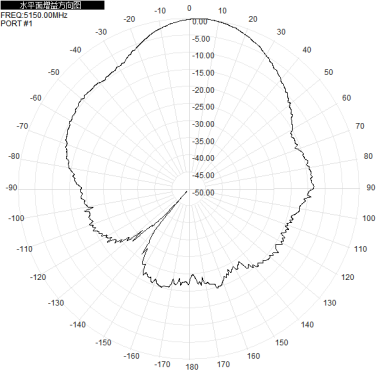

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
5150MHz 5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna 5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna 5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
5850MHz 5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna 5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna 5.8G 5150-5850MHz Wifi 15dBi Single Polarized Wall Mounted Directional Antenna
