Specifications
Brand Name :
Leenz
Model Number :
LZANT-10485-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
2400-2500/5150-5850MHz
VSWR :
<2.0
Peak Gain :
10dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 2400-2500/5150-5850MHz
S.W.R. <= 2.0
Antenna Gain 9/10dBi
Polarization Vertical
Horizontal Beamwidth 80±5°/55±5°
Vertical Beamwidth 60±5°/50±5°
F/B >29dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type

N Female connector
Dimension 97*98*23mm
Radome material ABS
Weight 0.12Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

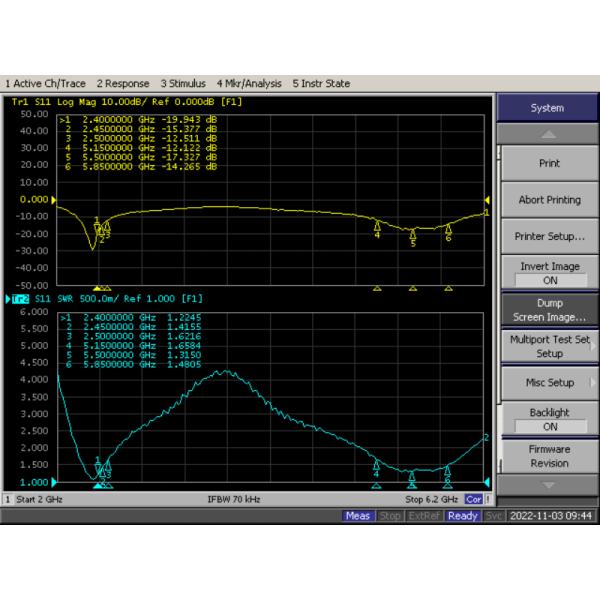

2.1 VSWR
2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
2400 8.9
2410 8.9
2420 8.8
2430 8.7
2440 8.7
2450 8.6
2460 8.6
2470 8.6
2480 8.5
2490 8.5
2500 8.5
5150 10.3
5200 10.2
5250 9.9
5300 9.8
5350 9.7
5400 9.4
5450 9.4
5500 9.5
5550 9.7
5600 9.8
5650 9.8
5700 10.2
5750 10.6
5800 10.1
5850 10.2
2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

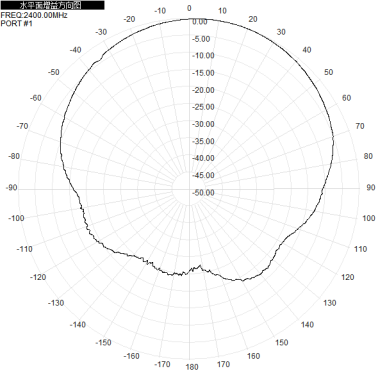

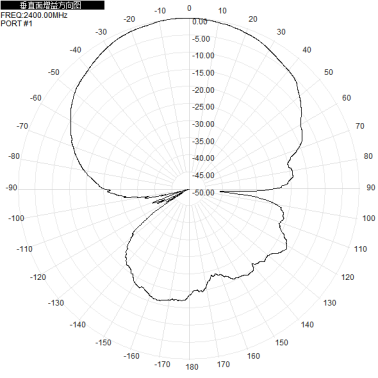

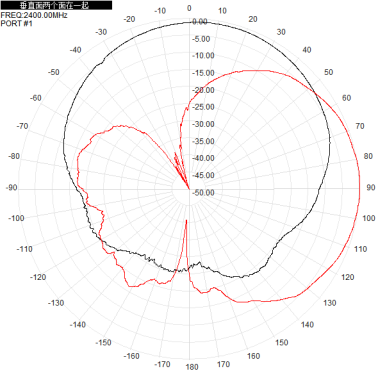

2400MHz 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna

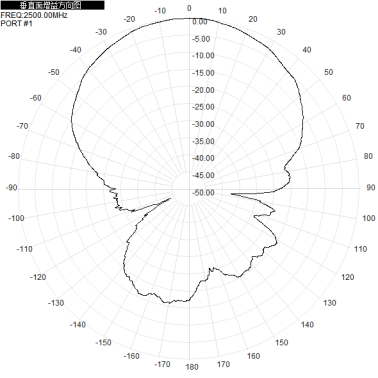

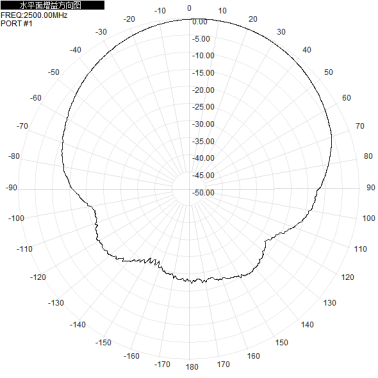

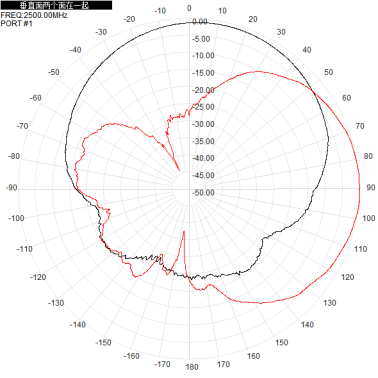

2500MHz 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna

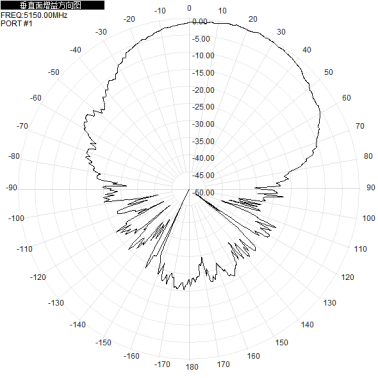

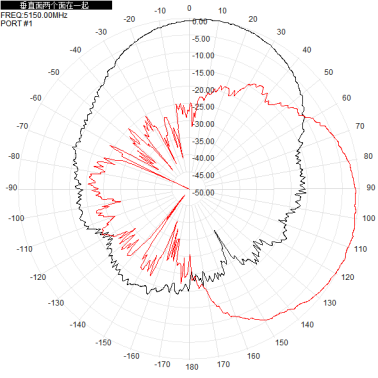

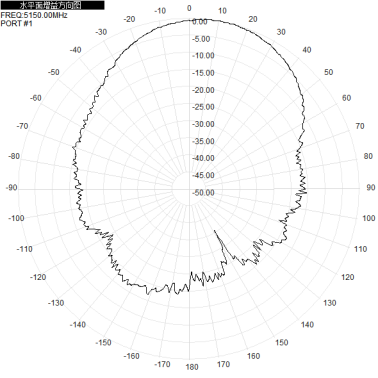

5150MHz 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna

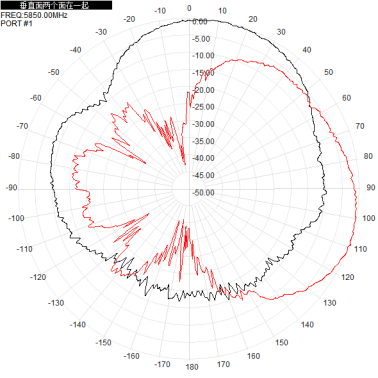

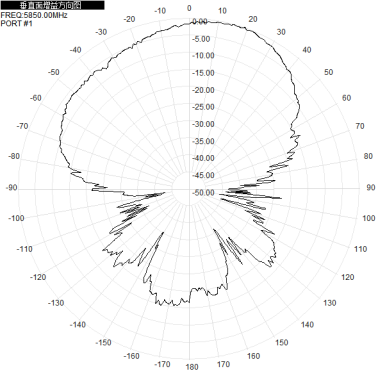

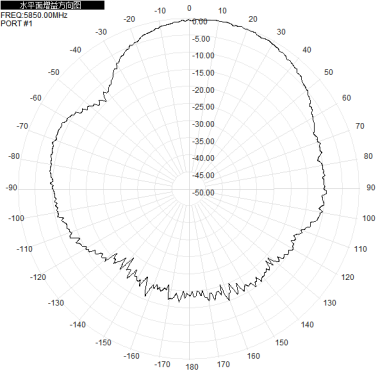

5850MHz 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna 2.4G5.8G 2400-2500/5150-5850M Wifi6 10dBi Single Polarized Wall Mounted Directional Antenna
