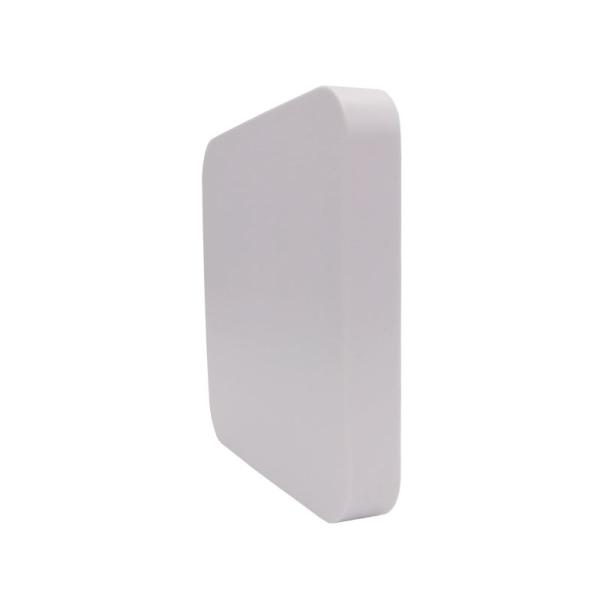

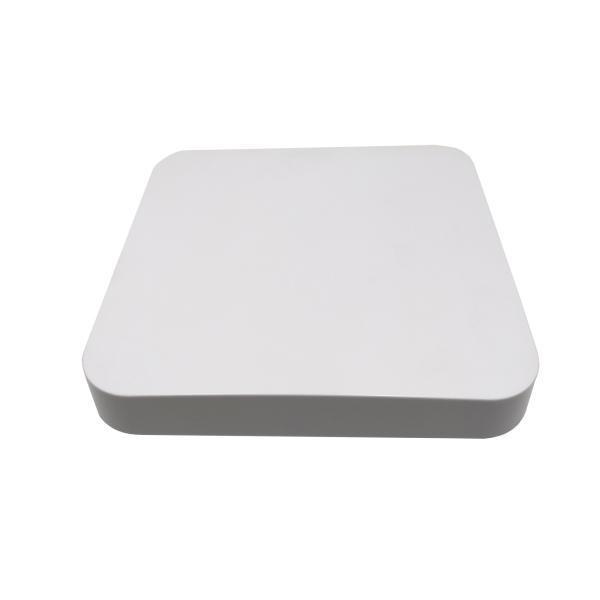

2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11874-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 5180-5850MHz
VSWR :
<2.0
Peak Gain :
12dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
PortPort 1Port 2
Frequency2400-2500MHz5150-5850MHz
S.W.R.<= 2.0<= 2.0
Antenna Gain12dBi12dBi
PolarizationVV
Horizontal Beamwidth50±10°50±10°
Vertical Beamwidth30±10°30±10°
F/B21-25dB20-27dB
Impedance50Ohm50Ohm
Max. Power50W50W
B. Material & Mechanical Characteristics
Connector Type2*N -K
Dimension186*186*28mm
Radome materialABS
Mount Pole∅30-∅50
Weight0.Kg
C. Environmental
Operation Temperature- 40 ˚C ~ + 85 ˚C
Storage Temperature- 40 ˚C ~ + 85 ˚C
Operation Humidity＜95%
Rated Wind Velocity36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
Port1
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
Port2
2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm


2.2 Total Efficiency & Gain:

Port 1 Port 2
Frequency(MHz)Gain(dBi)Frequency(MHz)Gain(dBi)
240011.5510012.4
241011.5515012.7
242011.5520012.6
243011.6525012.6
244011.6530012.6
245011.5535012.4
246011.3540012.5
247011.4545012.2
248011.6550012.8
249011.4555012.8
250011.5560012.9
565013.2
570012.7
575012.7
580013.2
585012.3
590012.6
2.3 Radiation Pattern
Port12D-Horizontal2D-VerticalHorizontal & Vertical
2400MHz2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2450MHz2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
2500MHz2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm

Port22D-Horizontal2D-VerticalHorizontal & Vertical
5150MHz2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
5500MHz2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
5850MHz2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm2.4G+5.8G 12dbi single-polarization independent interface wifi directional antenna 186x186mm
