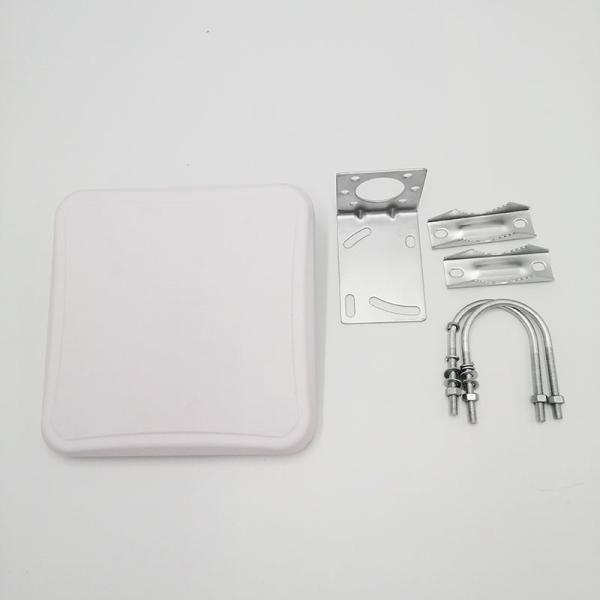

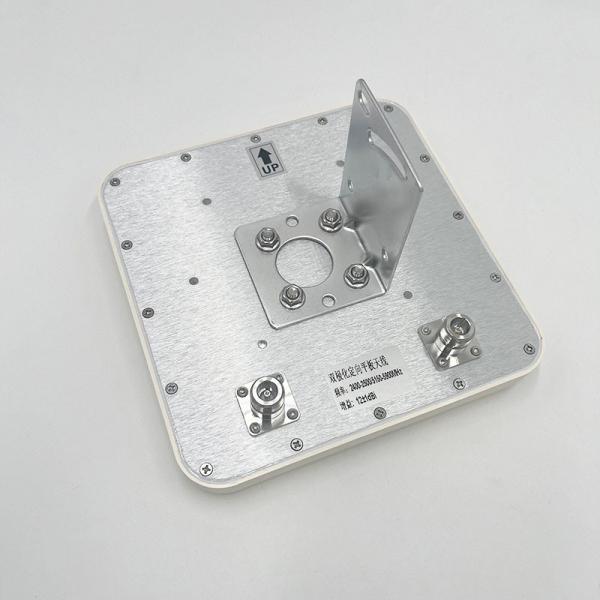

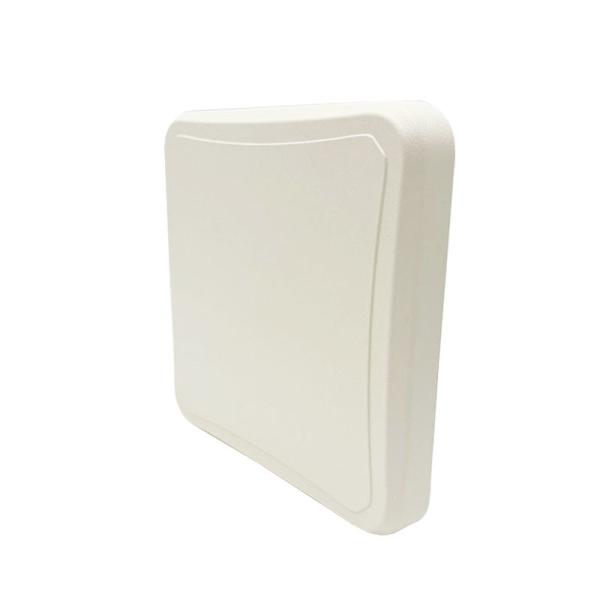

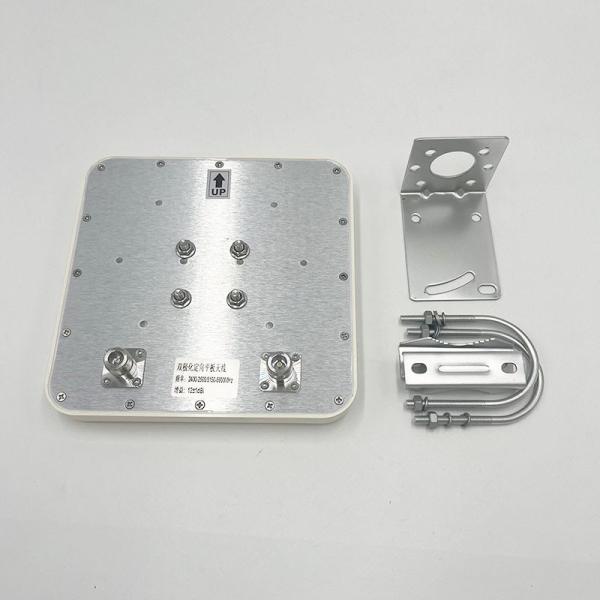

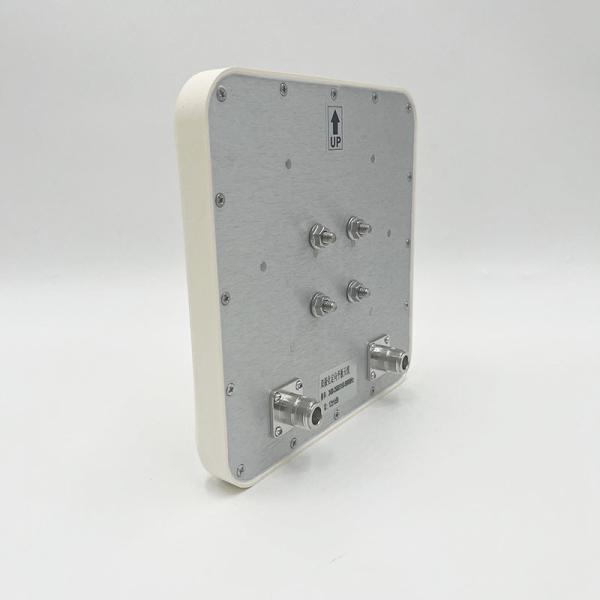

Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-2458D12-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
2400-2500MHz; 5180-5850MHz
VSWR :
<2.0
Peak Gain :
12dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Port /
Frequency 2400-2500/5150-5850MHz
S.W.R. <= 2.0
Antenna Gain 12dBi
Polarization Vertical
Horizontal Beamwidth 50±10°
Vertical Beamwidth 30±10°
F/B >20dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 2*N -K
Dimension 190*190*25mm
Radome material ABS
Mount Pole ∅30-∅50
Weight 0.7Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
Port1

Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
Port2

Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm


2.2 Total Efficiency & Gain:

Port 1 Port 2
Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
2400 9.2 2400 9.0
2410 9.3 2410 9.0
2420 9.5 2420 9.2
2430 9.5 2430 9.4
2440 9.6 2440 9.5
2450 9.7 2450 9.6
2460 9.8 2460 9.7
2470 9.8 2470 9.9
2480 9.7 2480 9.8
2490 9.7 2490 9.9
2500 9.8 2500 9.9
5100 11.1 5100 11.2
5150 11.3 5150 11.3
5200 11.2 5200 11.3
5250 10.8 5250 11.0
5300 11.3 5300 11.2
5350 11.2 5350 11.3
5400 11.1 5400 11.3
5450 11.5 5450 11.5
5500 11.8 5500 11.7
5550 12.0 5550 11.9
5600 12.6 5600 12.4
5650 12.7 5650 12.5
5700 12.6 5700 12.5
5750 12.5 5750 12.3
5800 12.2 5800 12.0
5850 12.6 5850 12.5
5900 12.5 5900 12.4
2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
2400MHz Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
2450MHz Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
2500MHz Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm

2D-Horizontal 2D-Vertical Horizontal & Vertical
5180MHz Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
5250MHz Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
5850MHz Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm Flat Panel Directional Wifi Antenna Outdoor Dual Band 2.4G 5.8G 12dbi Antenna 190x190x25mm
