800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10893-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
790-820MHz
VSWR :
<2.0
Peak Gain :
5dBi
Impedance :
50
Description

800M790-820M Single-polarized 5dbi directional antenna 210x180x45mm

1. Specification

A. Electrical Characteristics
Frequency 790-820MHz
S.W.R. <= 2.0
Antenna Gain 5dBi
Polarization Vertical
Horizontal Beamwidth 75°
Vertical Beamwidth 75°
F/B >13dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension 210*180*45mm
Radome material ABS
Weight 0.7Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

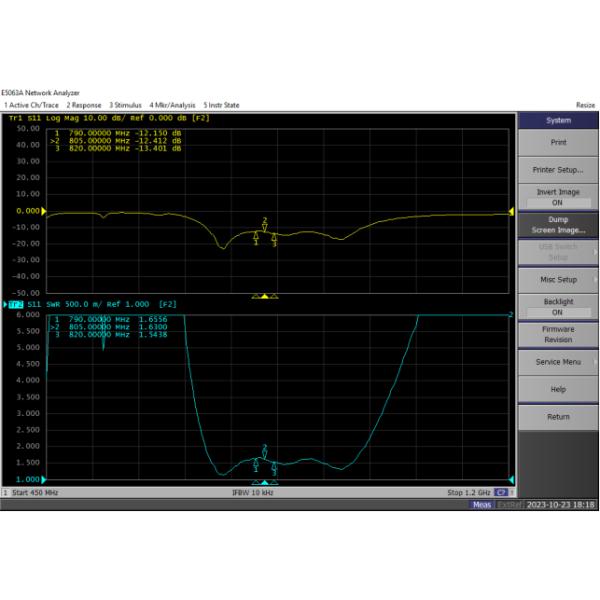

2.1 VSWR

800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
790 4.4
795 4.6
800 4.7
805 4.7
810 5.0
815 5.2
820 5.4

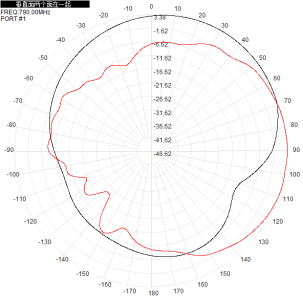

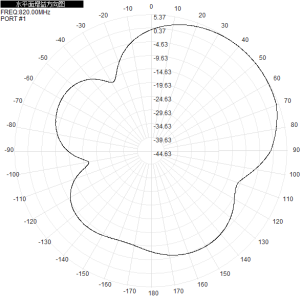

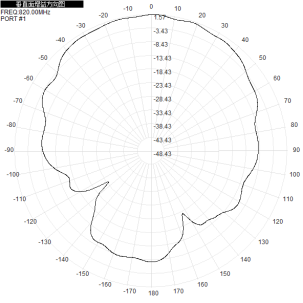

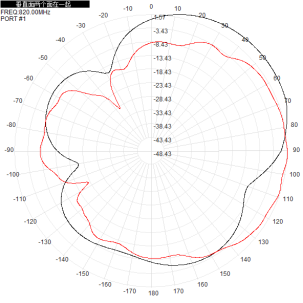

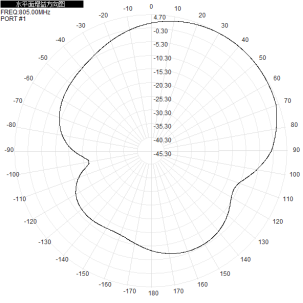

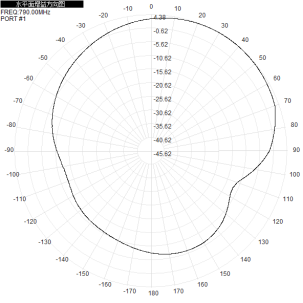

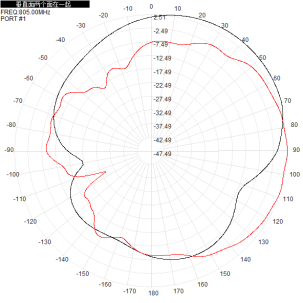

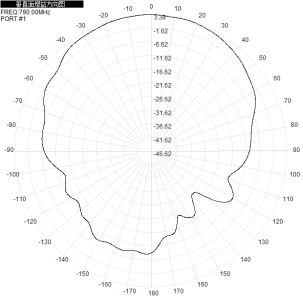

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
790MHz 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
805MHz 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
820MHz 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm 800M 790-820M Single-Polarized 5db Directional Antenna 210x180x45mm
