Specifications
Brand Name :
Leenz
Model Number :
LZANT-10575-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
500MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50
Description

500M 3dbi single-polarization directional antenna 210x180x45mm

. Specification

A. Electrical Characteristics
Frequency 500MHz
S.W.R. <2.0
Antenna Gain 3dBi
Polarization Vertical
Horizontal Beamwidth 110°
Vertical Beamwidth 110°
F/B >17dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Cable Type RG58U Cable, length 300mm
Connector Type SMA connector
Dimension 210*180*45mm
Radome material ABS
Weight 0.65Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
495 2.7
496 2.7
497 2.7
498 2.8
499 2.9
500 3.0
501 3.1
502 3.2
503 3.3
504 3.3
505 3.3

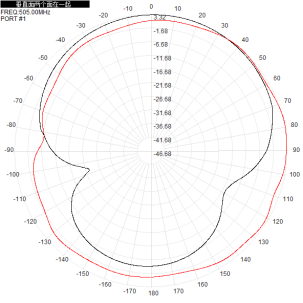

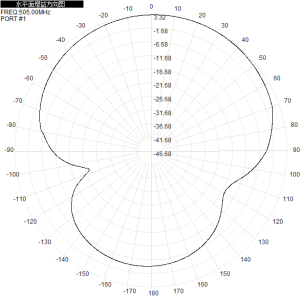

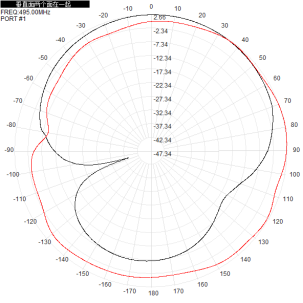

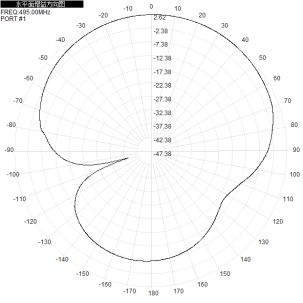

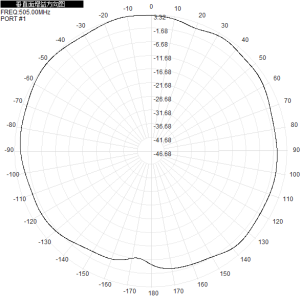

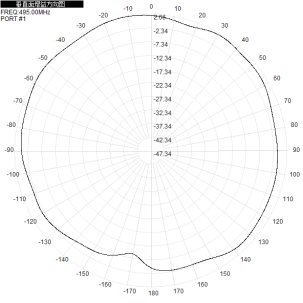

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
495MHz 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm
500MHz 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm
505MHz 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm 500M 3dbi Single-Polarization Directional Antenna For Wifi Router 210x180x45mm
