Beidou GPS 1561-1575M 4dBi dual mode passive waterproof directional antenna

1. Specification

A. Electrical Characteristics
Frequency 1561-1575MHz
S.W.R. <= 2.0
Antenna Gain 4dBi
Polarization RHCP
Horizontal Beamwidth 360°
Vertical Beamwidth 100±10°
F/B >27dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension

φ86*40mm
Radome material ABS
Weight 0.1Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

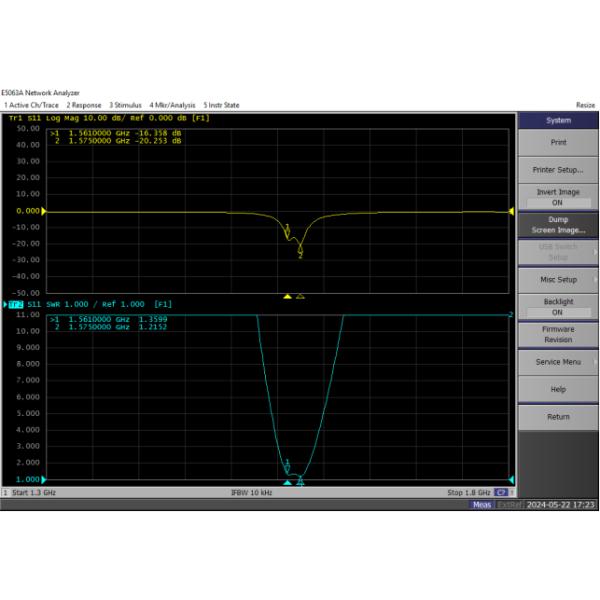

Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Efficiency(%)
1561 3.7 66.1
1562 3.7 65.8
1563 3.6 65.4
1564 3.5 64.8
1565 3.4 64.1
1566 3.4 63.6
1570 3.1 62.3
1571 3.2 63.5
1572 3.2 64.9
1573 3.3 66.2
1574 3.4 67.0
1575 3.4 67.2
2.3 Radiation Pattern
Port1 3D 2D-Horizontal 2D-Vertical
1561MHz Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna
1570MHz Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna
1575MHz Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna Beidou GPS 1561-1575M 4dBi Dual Mode Passive Waterproof Directional Gps Antenna ceiling-mounted antenna
