RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10553-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
915MHz
VSWR :
<1.5
Peak Gain :
6dBi
Impedance :
50
Description

Outdoor RFID Directional Antenna Flat Panel antenna 915M900-930M 9dBi 256x256x40

1. Specification

A. Electrical Characteristics
Frequency 900-930MHz
S.W.R. <= 1.5
Antenna Gain dBi
Polarization Vertical
Horizontal Beamwidth 70°
Vertical Beamwidth 60°
F/B >17dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension 256*256*40mm
Radome material ABS
Weight 1.0Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

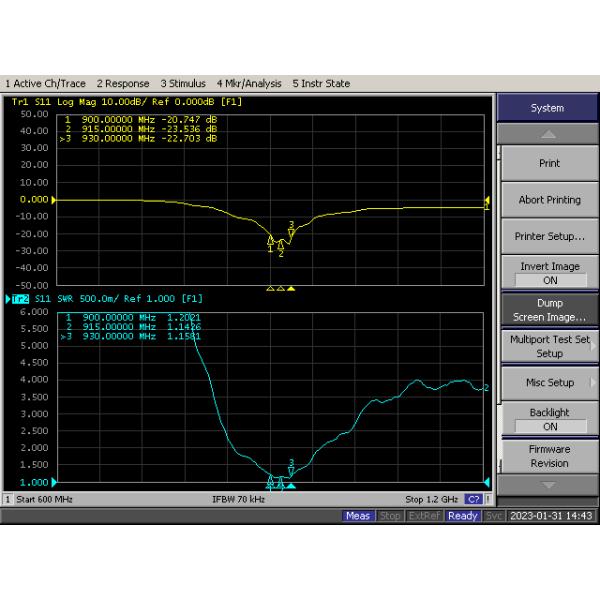

2.1 VSWR

RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm



2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
900 9.3295
905 9.4348
910 9.622
915 9.7339
920 9.8101
925 9.8493
930 9.8035

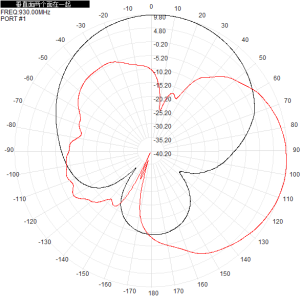

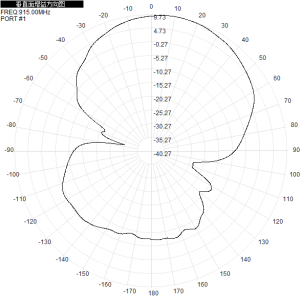

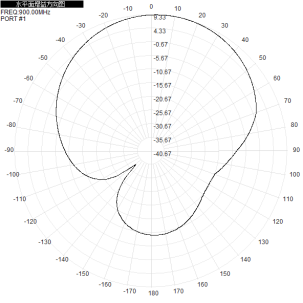

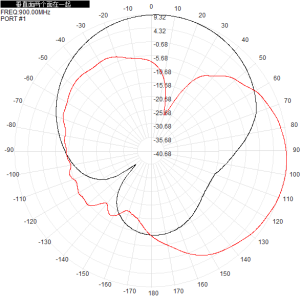

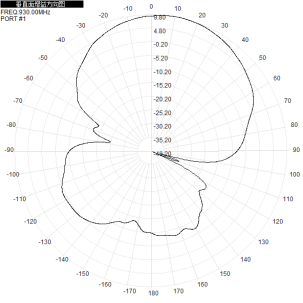

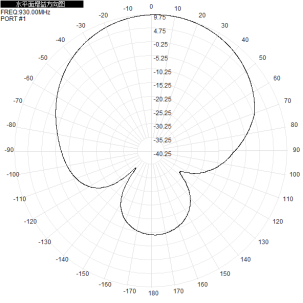

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
900MHz RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
915MHz RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
930MHz RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm RFID Directional Antenna Flat Panel Antenna 915M 900-930M 9dBi 256x256x40mm
