Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10867-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
400-7000MHz
VSWR :
<2.2
Peak Gain :
7dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 400-7000MHz
S.W.R. <=2.2
Antenna Gain 7dBi
Efficiency 58%
Polarization Vertical
Horizontal Beamwidth 40-360°
Vertical Beamwidth 20-80°
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Cable Type 50-3 Type Cable
Dimension 550*350*80mm
Mount Pole ∅30-∅50
Weight 2.4Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

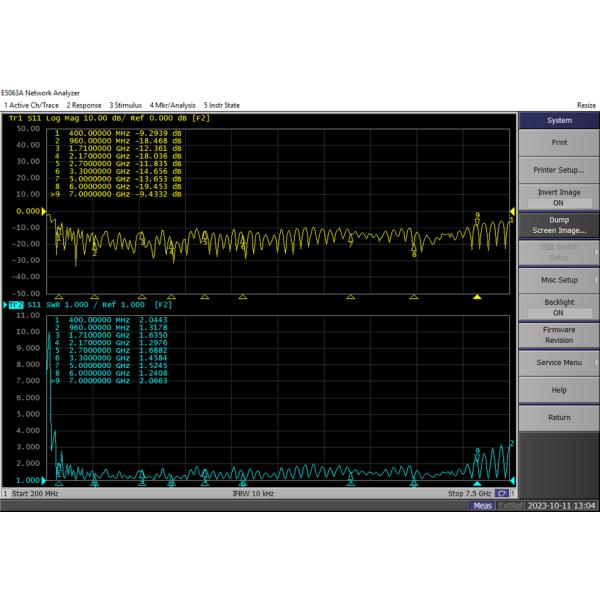

2.1 VSWR

Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi) Frequency(MHz) Gain(dBi)
400 2.7 1100 4.5 4200 6.9
420 2.9 1200 5.4 4300 6.0
440 0.7 1300 5.5 4400 5.7
460 2.9 1400 4.7 4500 5.3
480 4.6 1500 6.2 4600 5.0
500 4.4 1600 5.4 4700 4.5
520 3.4 1700 4.5 4800 3.8
540 4.1 1800 6.1 4900 4.1
560 4.2 1900 5.4 5000 5.3
580 0.4 2000 5.1 5100 5.2
600 4.1 2100 6.2 5200 5.2
620 4.1 2200 6.7 5300 5.1
640 2.7 2300 5.2 5400 4.7
660 4.1 2400 5.3 5500 4.5
680 4.9 2500 5.1 5600 5.1
700 5.2 2600 5.9 5700 4.5
720 4.5 2700 4.8 5800 4.2
740 5.4 2800 5.7 5900 4.8
760 3.9 2900 5.8 6000 5.5
780 6.0 3000 6.5 6100 6.4
800 6.8 3100 5.2 6200 6.6
820 6.7 3200 6.2 6300 5.3
840 5.8 3300 5.8 6400 4.7
860 4.7 3400 5.7 6500 5.7
880 4.8 3500 6.6 6600 5.4
900 5.3 3600 7.0 6700 5.3
920 4.2 3700 6.5 6800 5.3
940 5.0 3800 5.0 6900 4.6
960 5.3 3900 4.4 7000 4.0
980 4.8 4000 4.9
1000 5.4 4100 5.6

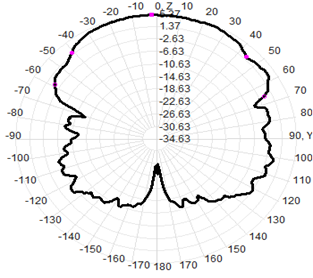

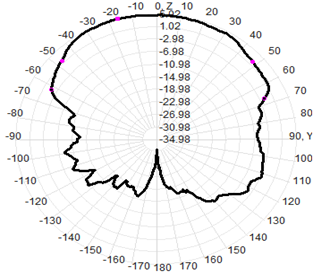

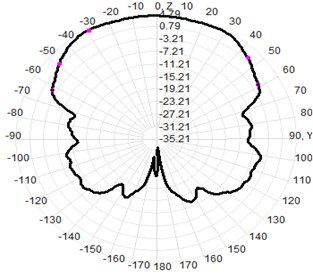

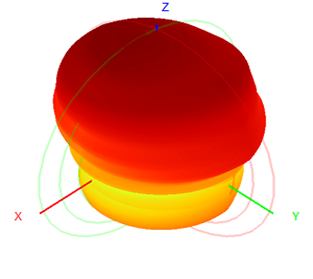

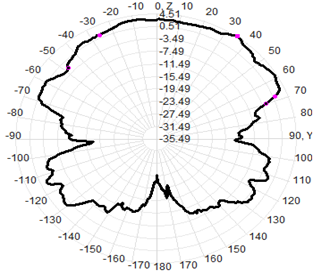

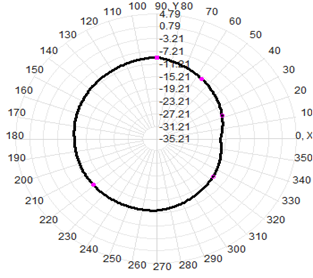

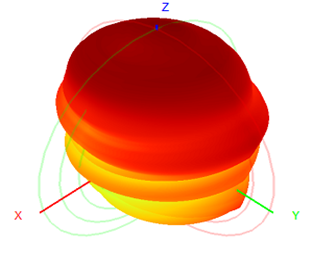

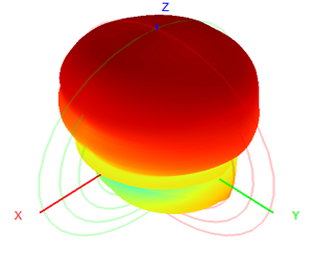

2.3 Radiation Pattern

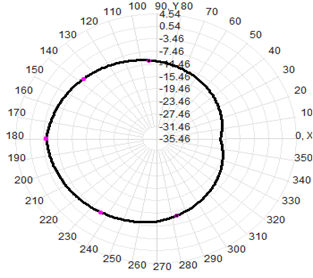

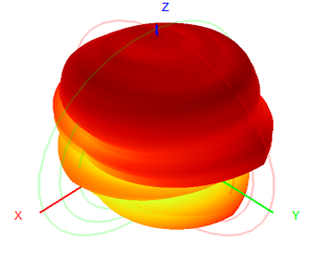

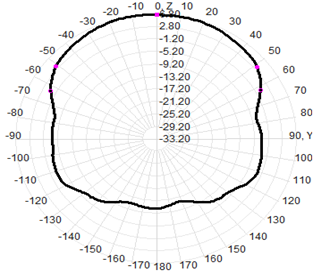

3D 2D-Horizontal 2D-Vertical

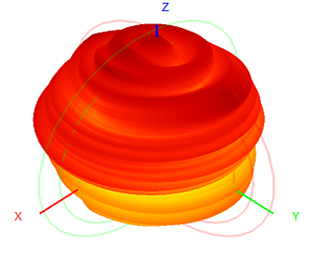

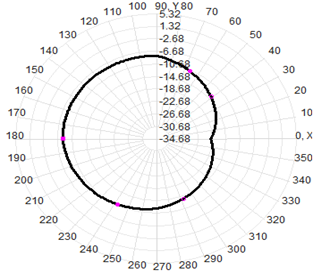

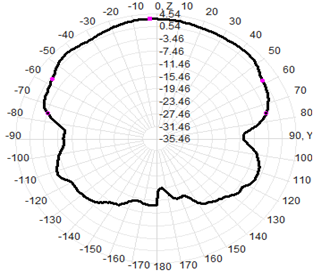

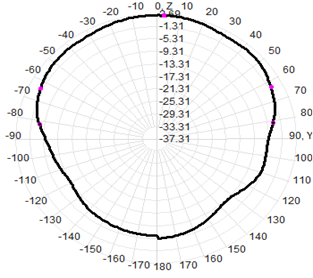

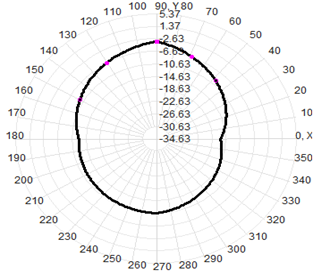

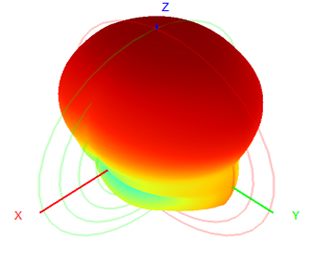

400MHz Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM

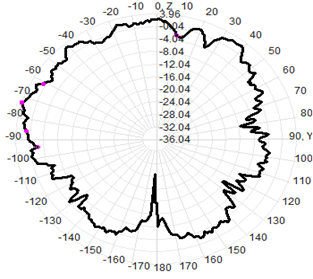

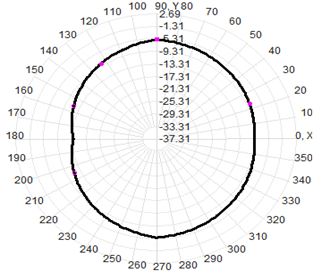

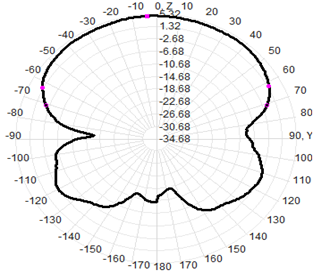

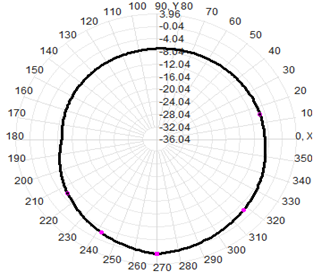

800MHz Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM

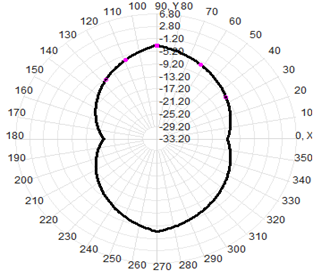

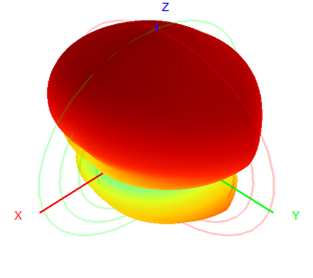

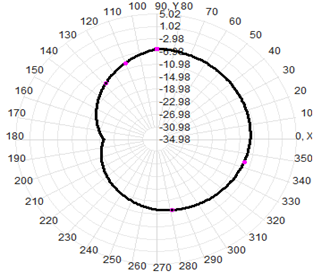

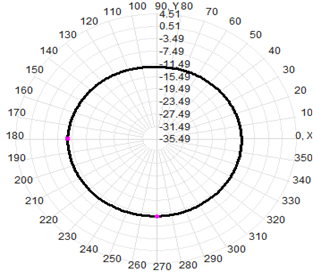

960MHz Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
3D 2D-Horizontal 2D-Vertical

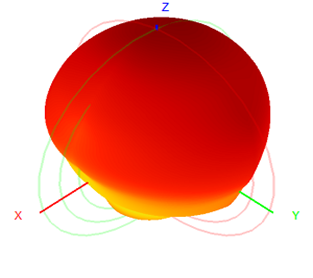

1700MHz Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
2700MHz Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
3800MHz Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
3D 2D-Horizontal 2D-Vertical
4500MHz Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
5500MHz Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
7000MHz Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM Waterproof LPDA Outdoor Directional Antenna 400-7000MHz 550x350x80MM
