850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10934-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
850-950MHz
VSWR :
<2.0
Peak Gain :
14dBi
Impedance :
50
Description

850-950M868M915M902-930M NB LORA 14dbi single-polarization directional antenna for UAV

1. Specification

A. Electrical Characteristics
Frequency 850-950MHz
S.W.R. <= 2.0
Antenna Gain 14dBi
Polarization V
Horizontal Beamwidth 45±5°
Vertical Beamwidth 40±5°
F/B >19dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension 450*450*40mm
Radome material ABS
Weight 3.4Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

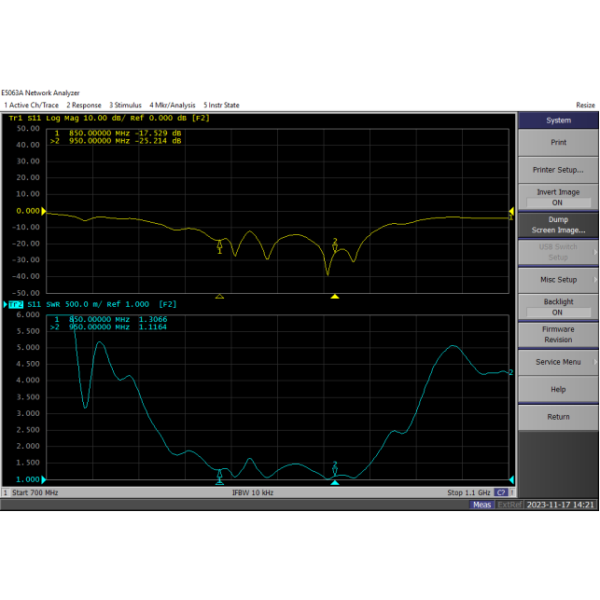

2.1 VSWR
850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
850 11.0
860 10.9
870 11.9
880 11.3
890 13.1
900 14.1
910 14.5
920 14.3
930 13.8
940 13.6
950 13.7
2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

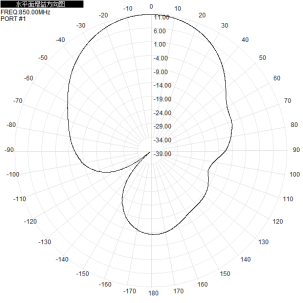

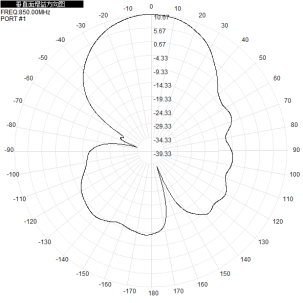

850MHz 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV

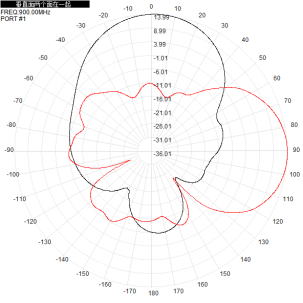

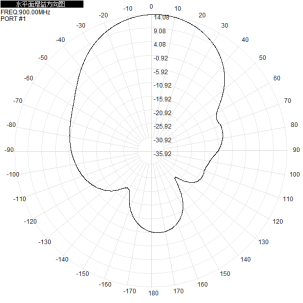

900MHz 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV

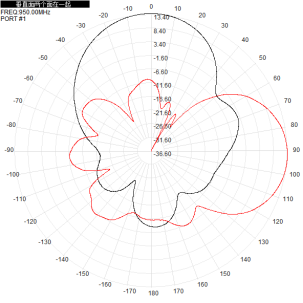

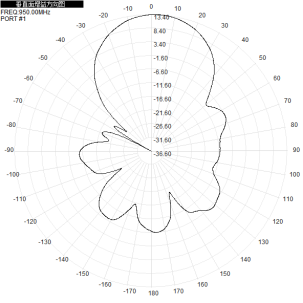

950MHz 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV 850-950M 915M 902-930M 868 Mhz Directional Antenna NB LORA 14dbi Single-Polarization For UAV
