Specifications
Brand Name :
Leenz
Model Number :
LZANT-10636-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
15 days
Frequency :
1710-2700MHz
VSWR :
<2.0
Peak Gain :
8dBi
Impedance :
50
Description

4G 1710-2700M LTE 8dBi single-polarized wall-mounted directional antenna

1. Specification

A. Electrical Characteristics
Frequency 1710-2700MHz
S.W.R. <= 2.0
Antenna Gain 8dBi
Polarization V
Horizontal Beamwidth 80±5°
Vertical Beamwidth 60±5°
F/B >10dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type RG141 L=20cm SMA Male connector
Dimension 100*100*25mm
Radome material ABS
Weight 0.35Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

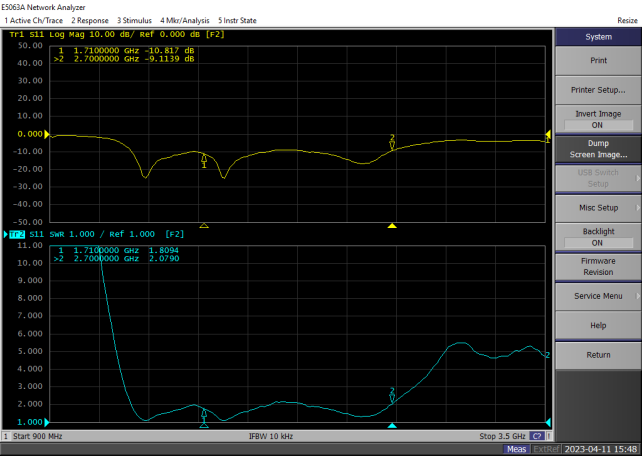

2.1 VSWR
4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
1700 6.3
1800 6.8
1900 6.8
2000 6.9
2100 7.0
2200 7.4
2300 7.4
2400 7.4
2500 8.2
2600 8.8
2700 8.5

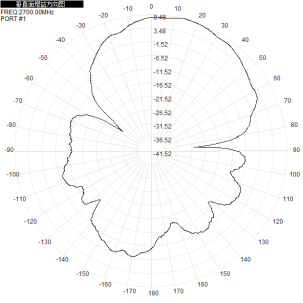

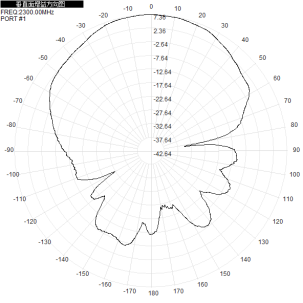

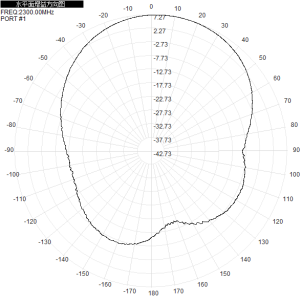

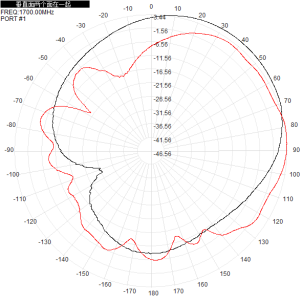

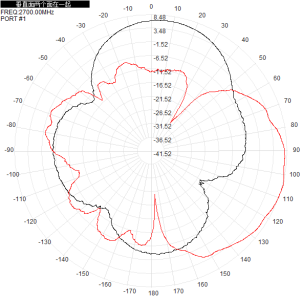

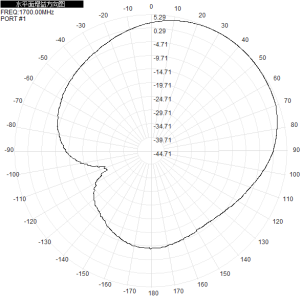

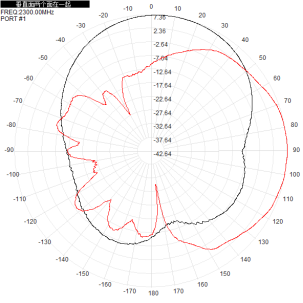

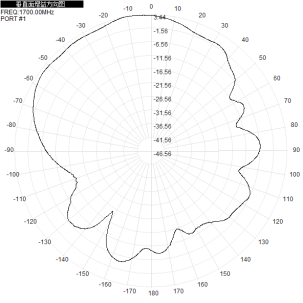

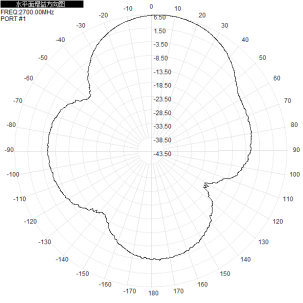

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
1710MHz 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted
2300MHz 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted
2700MHz 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted
