2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna

1. Specification

A. Electrical Characteristics
Frequency 703-803MHz
S.W.R. <= 2.0
Antenna Gain 9dBi
Polarization ±45°
Horizontal Beamwidth 80±10°
Vertical Beamwidth 40±10°
F/B >20dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type 2*N-K
Dimension 450*280*125mm
Radome material UPVC
Weight 4.5Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

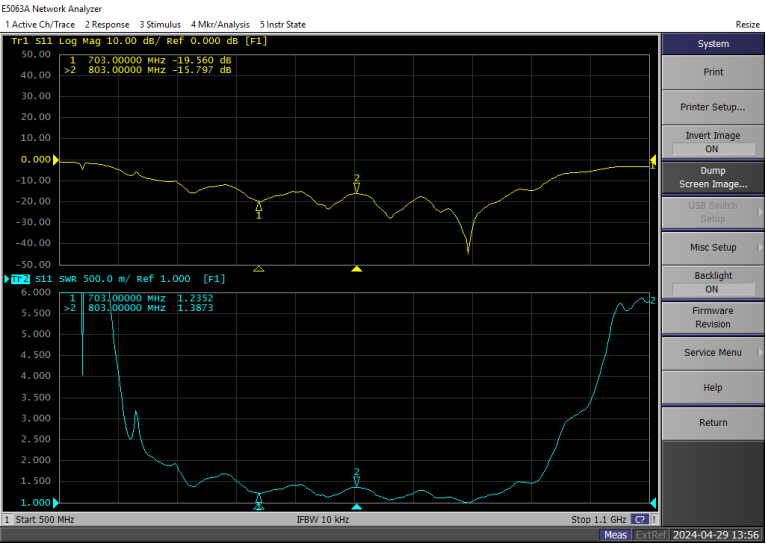

2.1 VSWR
2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm

2.2 Total Efficiency & Gain:


Port 1 +45°

Port 2 -45°

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

703

7.8

703

8.3

710

7.8

710

8.2

720

7.9

720

8.2

730

8.1

730

8.4

740

8.5

740

8.5

750

8.7

750

8.6

760

9.0

760

8.8

770

9.3

770

9.0

780

9.5

780

9.2

790

9.4

790

9.2

800

9.4

800

9.3

803

9.2

803

9.1

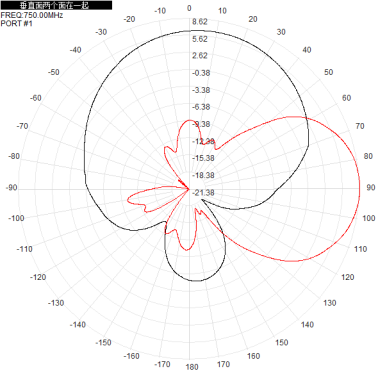

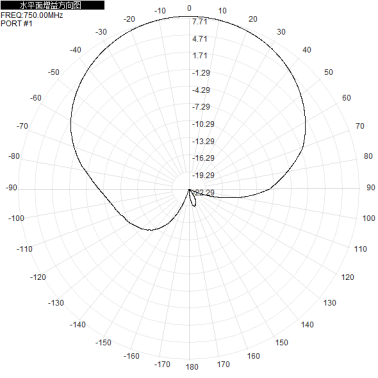

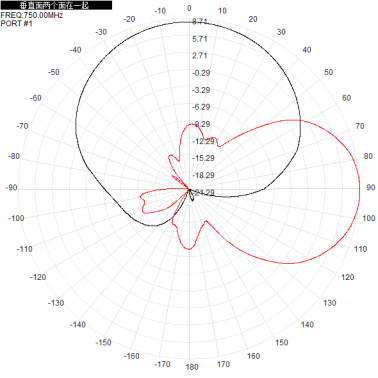

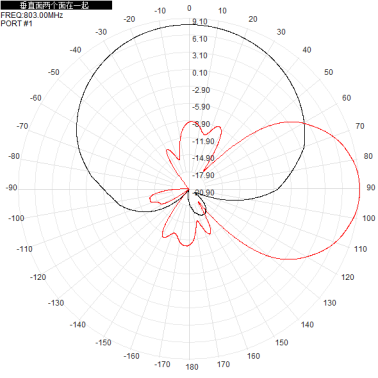

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

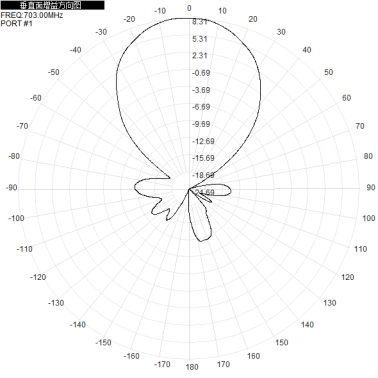

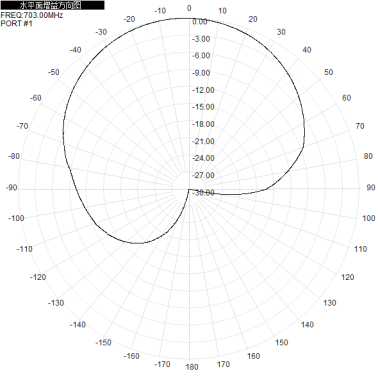

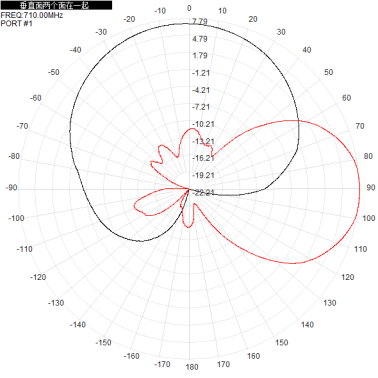

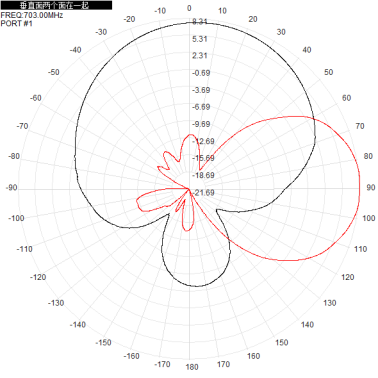

703MHz 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm

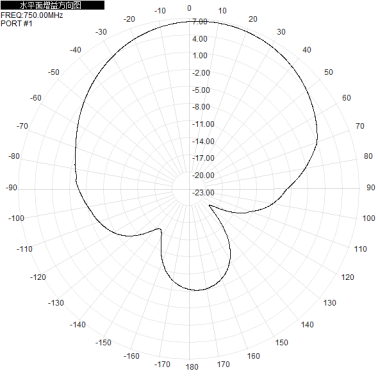

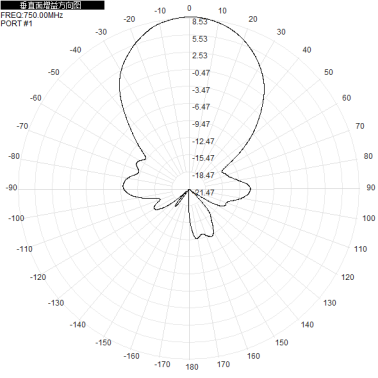

750MHz 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm

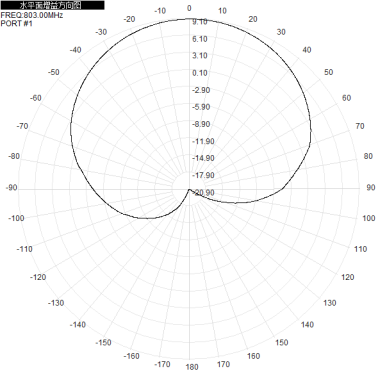

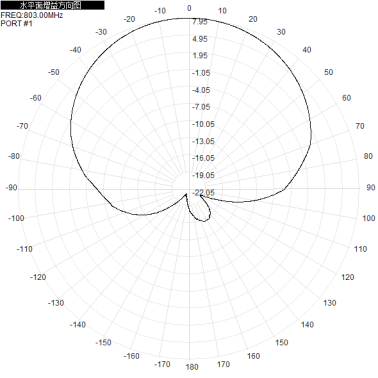

803MHz 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm


Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
703MHz 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm
750MHz 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm
803MHz 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm 2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna 450x280x125mm
