N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11094-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
200 per day
Delivery Time :
15 days
Frequency :
370-390MHz
VSWR :
<2.0
Peak Gain :
6dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 370-390MHz
S.W.R. <2.0
Antenna Gain 6dBi
Polarization Vertical
Horizontal Beamwidth 113-115°
Vertical Beamwidth 68-72°
F/B >16dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics

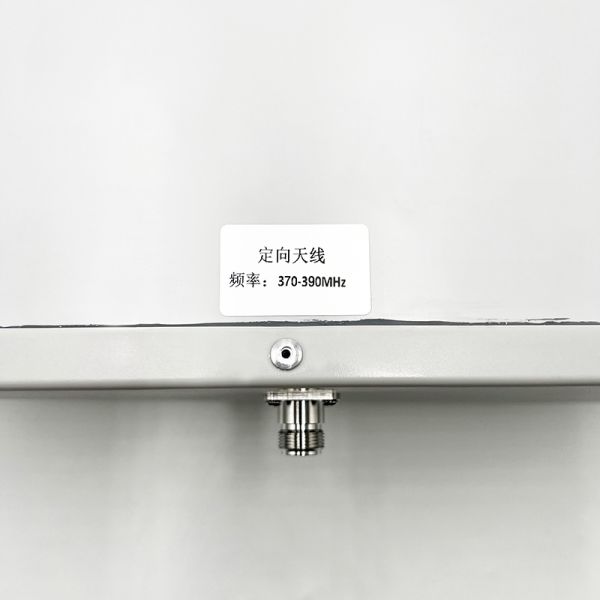

Connector Type N connector
Dimension 450*410*130mm
Radome material UPVC
Weight 5.5Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 60m/s


2. Antenna - S Parameter Test Data

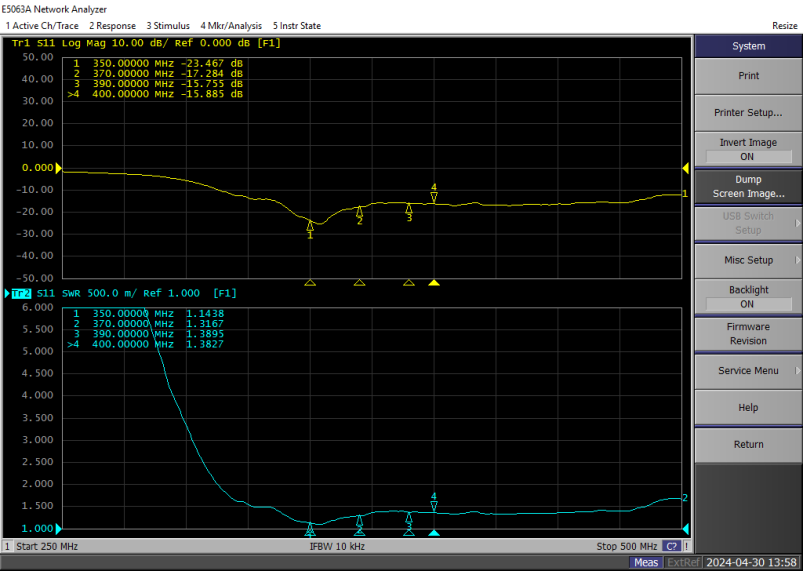

2.1 VSWR
N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

370

6.1

372

6.2

374

6.3

376

6.3

378

6.3

380

6.4

382

6.5

384

6.5

386

6.6

388

6.7

390

6.9

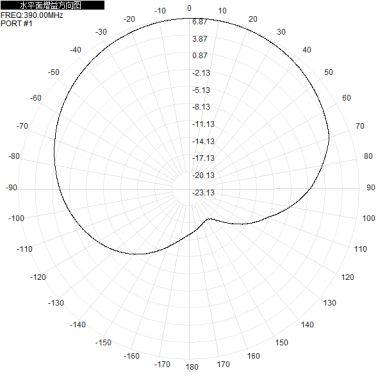

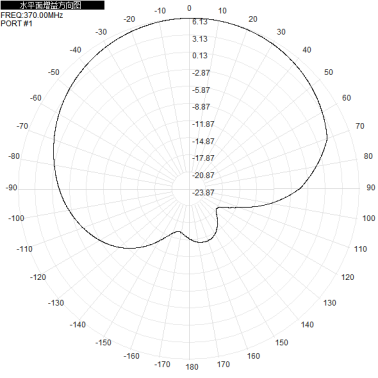

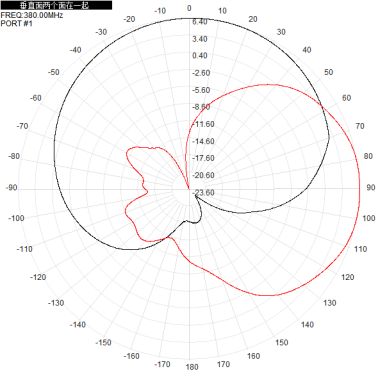

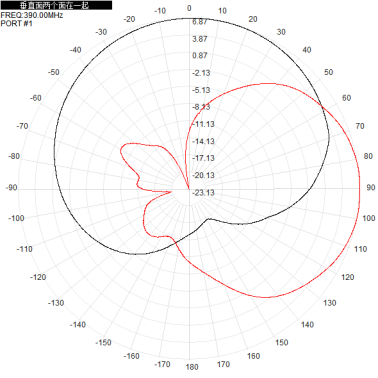

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical

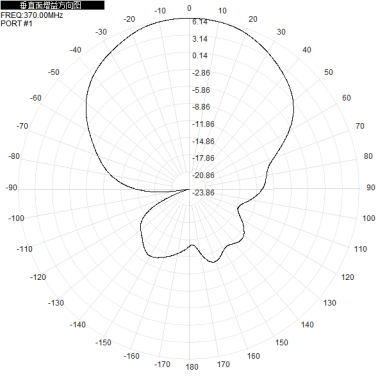

370MHz N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna

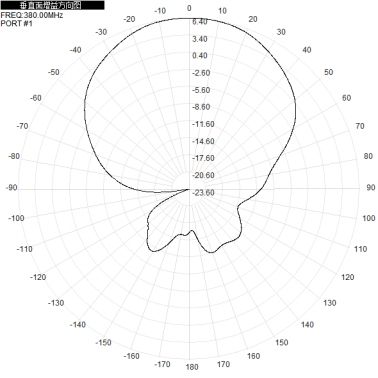

380MHz N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna

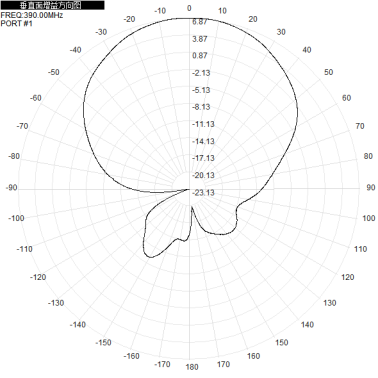

390MHz N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
