380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10949-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
200 per day
Delivery Time :
15 days
Frequency :
380-450MHz
VSWR :
<2.0
Peak Gain :
11dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 380-450MHz
S.W.R. <2.0
Antenna Gain 6dBi
Polarization ±45°
Horizontal Beamwidth 90±10°
Vertical Beamwidth 25±5°
F/B >16dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type 2*N-K
Dimension 1500*410*135mm
Radome material UPVC
Weight 18.1Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 60m/s


2. Antenna - S Parameter Test Data

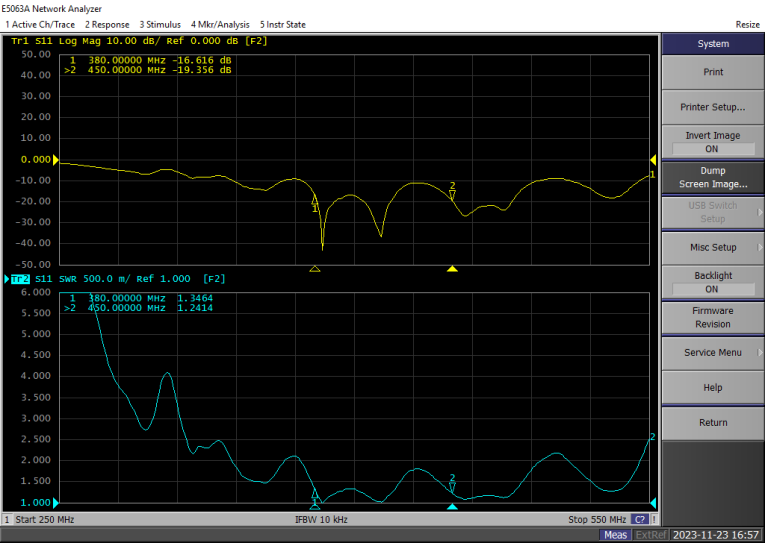

2.1 VSWR
PORT-1 +45

380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna

PORT-2 -45

380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna


2.2 Total Efficiency & Gain:

Port 1

Port 2

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

380

9.5

380

8.9

385

9.6

385

9.0

390

9.6

390

9.0

395

9.6

395

9.0

400

9.6

400

9.2

405

9.8

405

9.6

410

10.2

410

10.0

415

10.4

415

10.2

420

10.7

420

10.4

425

11.0

425

10.6

430

10.9

430

10.6

435

11.2

435

10.8

440

11.3

440

11.1

445

11.4

445

11.1

450

11.6

450

11.4

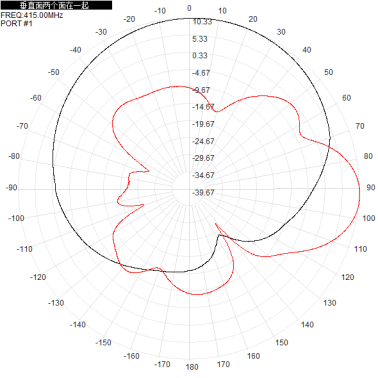

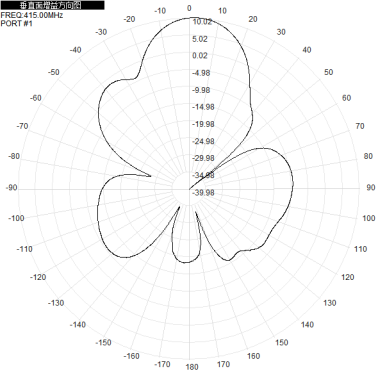

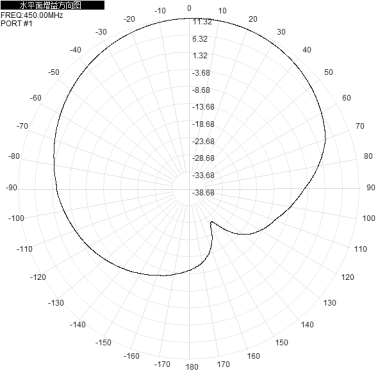

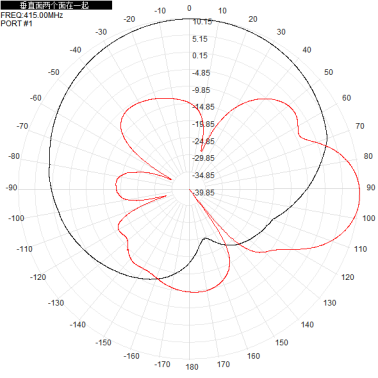

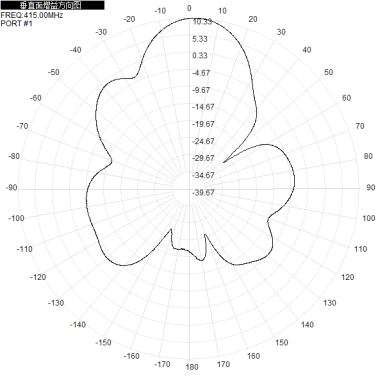

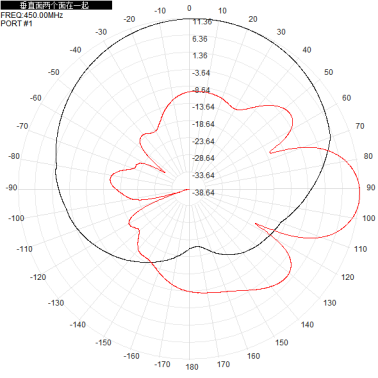

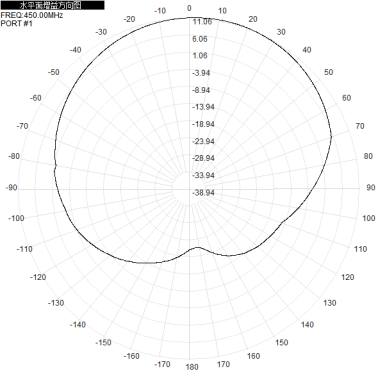

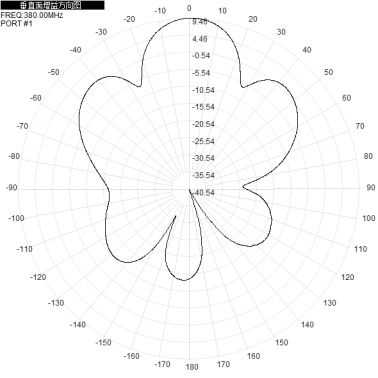

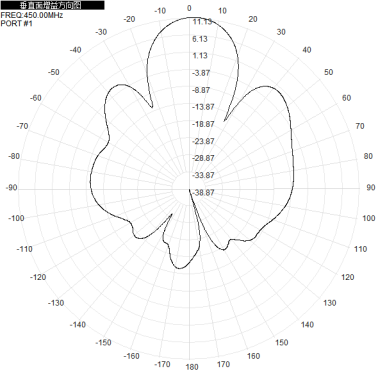

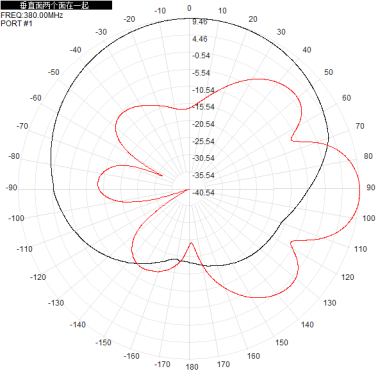

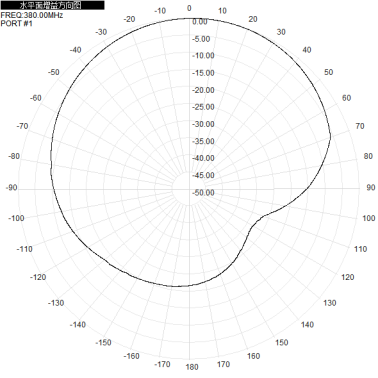

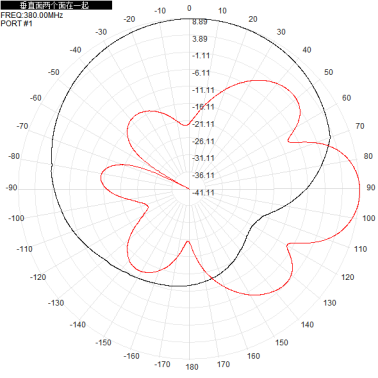

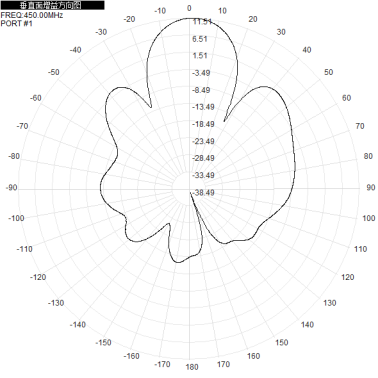

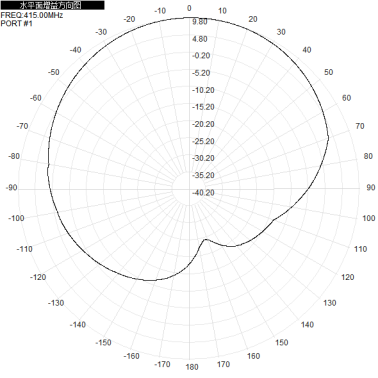

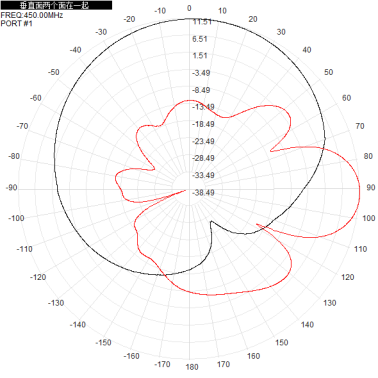

2.3 Radiation Pattern

Port1(+45) 2D-Horizontal 2D-Vertical Horizontal & Vertical
380MHz 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
415MHz 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
450MHz 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna


Port2(-45) 2D-Horizontal 2D-Vertical Horizontal & Vertical
380MHz 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
415MHz 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
450MHz 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna 380 - 450M 11dbi dual-polarized directional antenna ±45° base station sector antenna
