Specifications
Brand Name :
Leenz
Model Number :
LZANT-12040-A
Certification :
RoHs
Place of Origin :
China
MOQ :
2
Payment Terms :
T/T
Supply Ability :
200per day
Delivery Time :
15 days
Frequency :
5150-5850MHz
VSWR :
<2.0
Peak Gain :
20dBi
Impedance :
50
Description

5.8g high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields


1. Specification

A. Electrical Characteristics
Frequency 5150-5850MHz
S.W.R. <= 2.0
Antenna Gain 20dBi
Polarization V
Horizontal Beamwidth 15°
Vertical Beamwidth 15°
F/B >25dB
Impedance 50Ohm
Max. Power 200W
B. Material & Mechanical Characteristics
Connector Type

N Female connector
Dimension 220*220*25mm
Radome material ABS
Weight 0.55Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

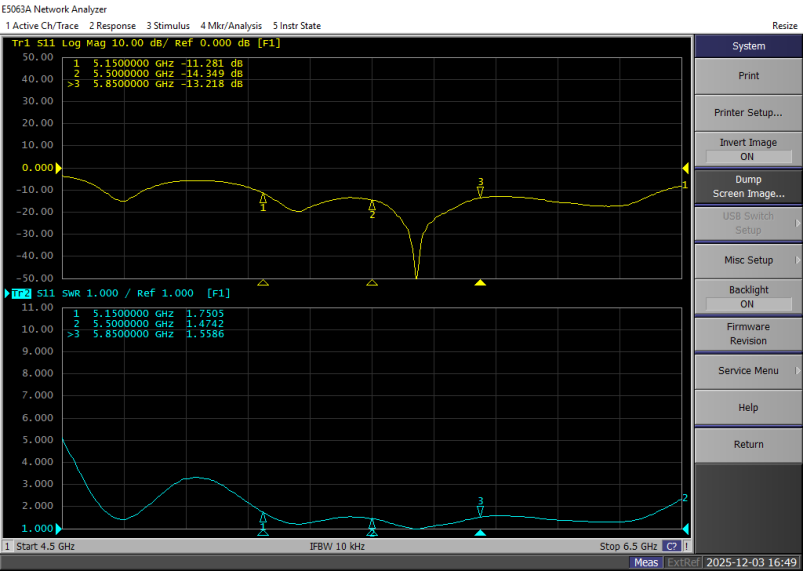

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields

2.2 Total Efficiency & Gain:


Frequency(MHz)

Gain(dBi)

5150

21.6

5200

21.1

5250

21.1

5300

21.2

5350

21.4

5400

21.9

5450

21.9

5500

22.4

5550

22.2

5600

22.4

5650

22.5

5700

22.0

5750

21.4

5800

22.0

5850

22.0

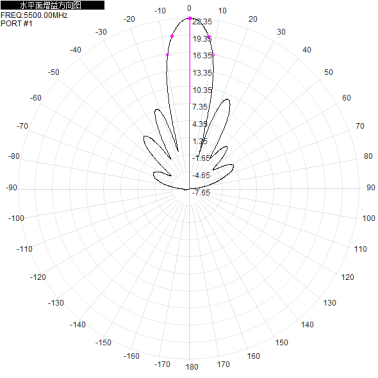

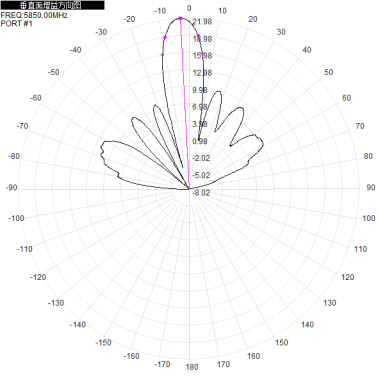

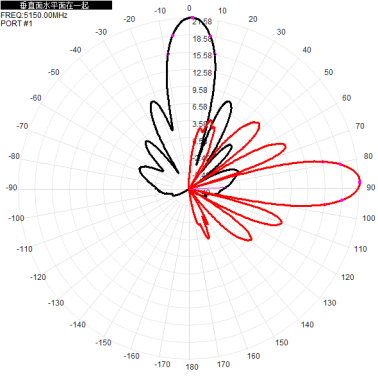

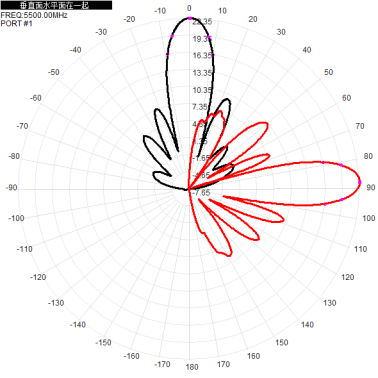

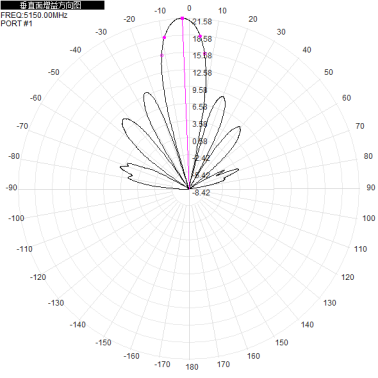

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
5150MHz 5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields 5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields 5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields
5500MHz 5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields 5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields 5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields
5850MHz 5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields 5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields 5.8G high-gain 20dbi single-polarized flat-panel directional antenna, which can be used in wifi, unmanned aerial vehicle (UAV) video transmission, UAV interference and other fields
