400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
Specifications
Brand Name :
Leenz
Model Number :
LZANT-11870-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
400-7000MHz
VSWR :
<2.2
Peak Gain :
7dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 400-6000MHz
S.W.R. <=3.0
Antenna Gain 7dBi
Polarization Vertical
Horizontal Beamwidth 80-220°
Vertical Beamwidth 51-95°
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N connector
Cable Type 50-3 Type Cable
Dimension 205*250*1.5mm
Weight 0.17Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s


2. Antenna - S Parameter Test Data

2.1 VSWR

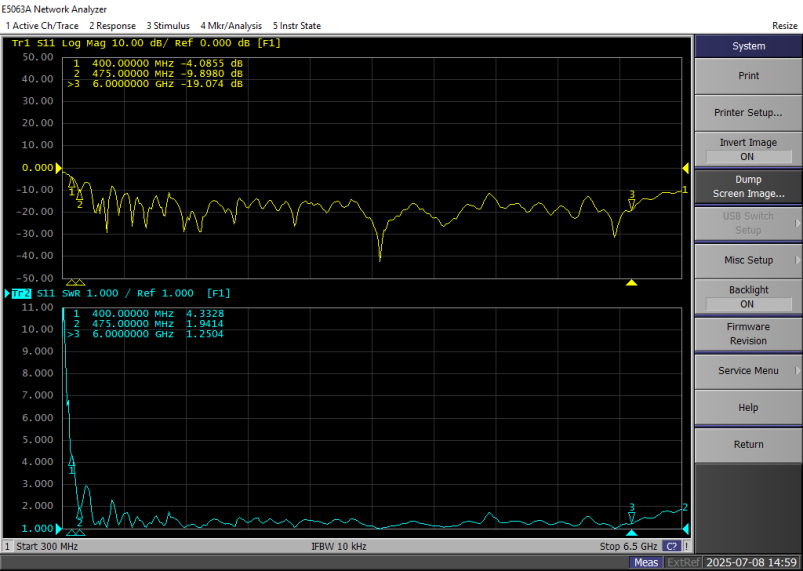

400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control


2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

400

4.6

3300

6.2

500

3.4

3400

6.9

600

4.2

3500

7.4

700

3.2

3600

7.0

800

4.7

3700

6.7

900

5.4

3800

6.5

1000

6.0

3900

6.6

1100

5.8

4000

7.2

1200

5.8

4100

6.4

1300

5.4

4200

7.0

1400

5.3

4300

6.8

1500

6.2

4400

7.1

1600

6.1

4500

7.4

1700

6.6

4600

6.2

1800

6.2

4700

6.6

1900

6.1

4800

6.6

2000

5.6

4900

7.0

2100

5.6

5000

7.1

2200

5.1

5100

7.4

2300

5.1

5200

7.3

2400

6.0

5300

6.7

2500

6.0

5400

6.7

2600

4.8

5500

6.4

2700

5.3

5600

6.1

2800

5.5

5700

7.2

2900

5.5

5800

7.9

3000

6.2

5900

7.3

3100

6.2

6000

6.6

3200

5.6




2.3 Radiation Pattern



 2D-Horizontal 2D-Vertical Horizontal & Vertical
400MHz 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
800MHz 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
900MHz 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control

3D 2D-Horizontal 2D-Vertical
2500MHz 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
3500MHz 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
4500MHz 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
5500MHz 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
7000MHz 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control 400-6000MHz 7dBi Gain Waterproof Microstrip Directional Antenna for UAV Measurement and Control
