Description

2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation. Dimensions: 190*19*40mm, capable of supporting a transmission power of 300w.

1. Specification

A. Electrical Characteristics
Frequency 2400-2500MHz
S.W.R. <= 2.0
Antenna Gain 15dBi
Polarization V
Horizontal Beamwidth 28±3°
Vertical Beamwidth 28±3°
F/B >26dB
Impedance 50Ohm
Max. Power 300W
B. Material & Mechanical Characteristics
Connector Type N-K connector
Dimension 190*190*40mm
Radome material ABS
Weight 0.52Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

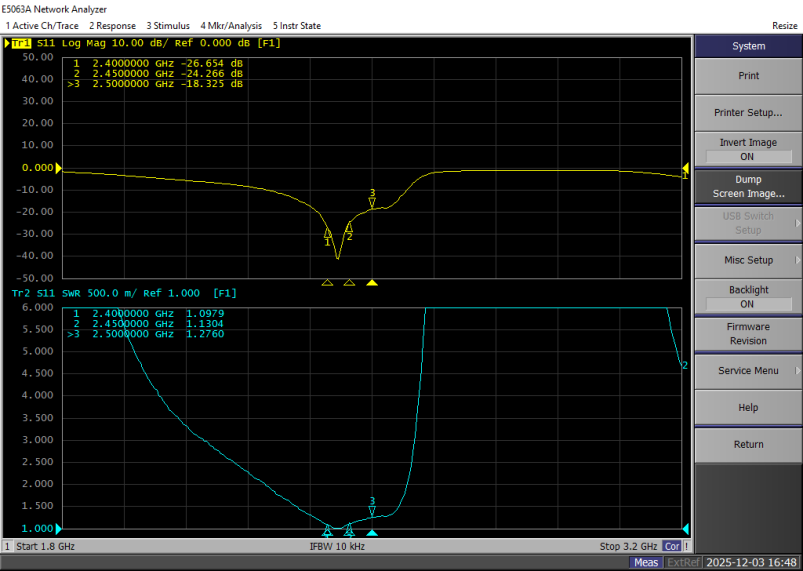

2.1 VSWR
2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

2400

14.7

2410

14.8

2420

14.8

2430

14.8

2440

14.9

2450

14.8

2460

14.9

2470

14.8

2480

14.9

2490

14.7

2500

14.8

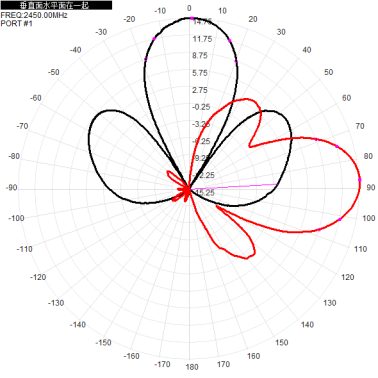

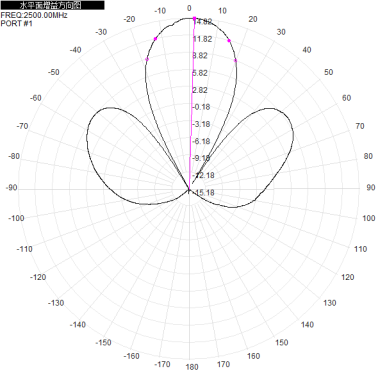

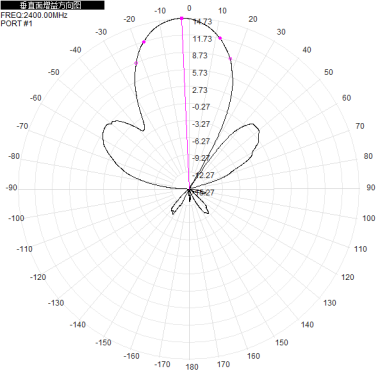

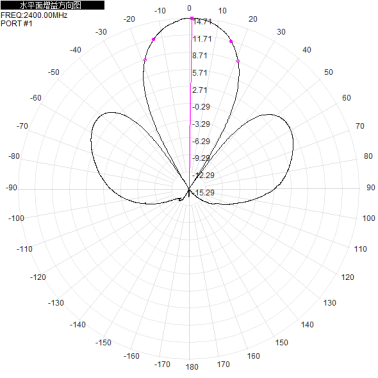

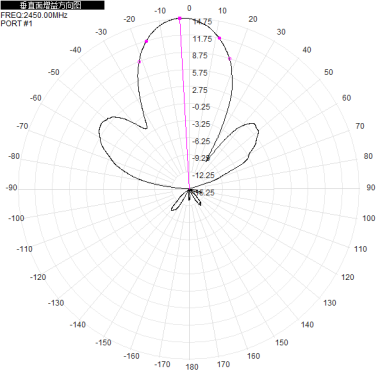

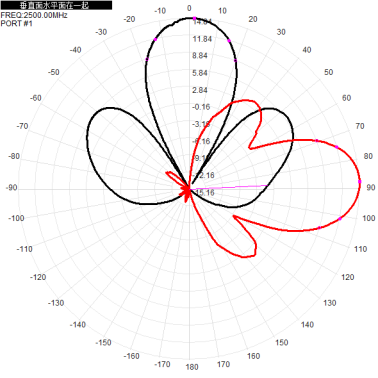

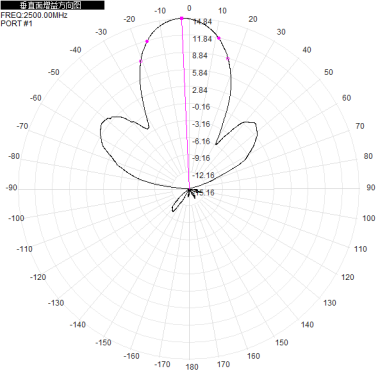

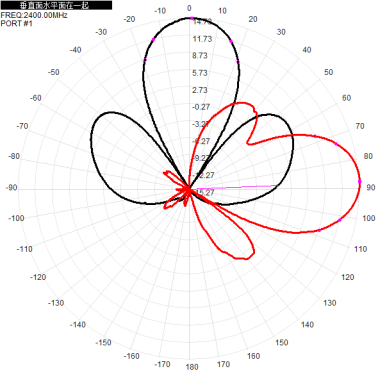

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
2400MHz 2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable 2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable 2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable
2450MHz 2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable 2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable 2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable
2500MHz 2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable 2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable 2.4G single-polarization high-gain 15dbi flat-panel directional antenna, suitable for wireless WIFI, Bluetooth and unmanned aerial vehicle flight control operation.   Dimensions: 190*19*40mm, capable
