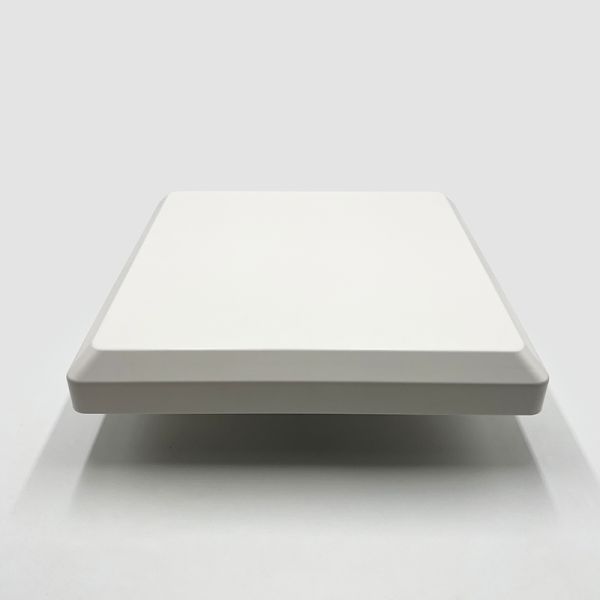

2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-12008-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500per day
Delivery Time :
15 days
Frequency :
2700-2900MHz
VSWR :
<2.0
Peak Gain :
15dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 2700-2900MHz
S.W.R. <= 2.0
Antenna Gain 15dBi
Polarization ±45°
Horizontal Beamwidth 22±2°
Vertical Beamwidth 22±2°
F/B >25dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 2*N-K
Dimension

φ390*390*50mm
Radome material ABS
Weight 2.1Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm

2.2 Total Efficiency & Gain:

Port 1(H)

Port 2(V)

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

2700

15.4

2700

15.7

2725

15.5

2725

15.8

2750

15.1

2750

15.7

2775

15.2

2775

15.7

2800

15.0

2800

15.4

2825

15.0

2825

15.6

2850

15.1

2850

15.7

2875

15.0

2875

15.6

2900

15.0

2900

15.2




2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
2700MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2800MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
2900MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
Port2 2D-Horizontal 2D-Vertical Horizontal & Vertical
3800MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
3850MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
3900MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
Port3 2D-Horizontal 2D-Vertical Horizontal & Vertical
3800MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
3850MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
3900MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
Port4 2D-Horizontal 2D-Vertical Horizontal & Vertical
3800MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
3850MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
3900MHz 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm 2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
