Specifications
Brand Name :
Leenz
Model Number :
LZANT-10564-D
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
1K per day
Delivery Time :
15 days
Frequency :
4900-8500M
VSWR :
<2
Peak Gain :
2dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 4900-8500MHz
Impedance 50 Ohm
S.W.R. <2
Gain 3dBi
Efficiency ≈72%
Polarization Linear
Horizontal Beamwidth 360°
Vertical Beamwidth 16-37°
B. Material & Mechanical Characteristics
Connector Type SMA-J
Dimension Φ13*109mm
Weight 0.01Kg
Radome material PBT+PC
C. Environmental
Operation Temperature - 40 ˚C ~ + 85˚C
Storage Temperature - 40 ˚C ~ + 85˚C


2. Antenna - S Parameter Test Data

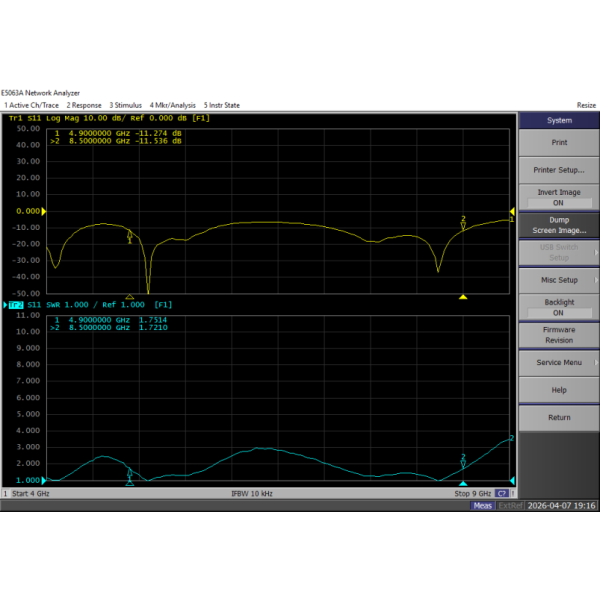

2.1 VSWR
UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm

2.2 Total Efficiency & Gain:


Frequency(MHz)

Gain(dBi)

Efficiency(%)

4900

2.6

62.9

5000

3.2

70.1

5100

3.1

68.5

5200

3.2

65.8

5300

3.5

68.7

5400

3.7

74.1

5500

3.6

73.1

5600

3.1

66.6

5700

2.6

57.3

5800

2.5

59.4

5900

3.1

64.9

6000

3.6

68.5

6100

3.2

58.4

6200

2.0

48.2

6300

2.2

51.8

6400

2.5

54.9

6500

2.8

58.2

6600

2.4

51.8

6700

2.7

56.0

6800

2.7

57.2

6900

2.8

56.4

7000

2.9

56.9

7100

3.2

63.6

7200

2.7

65.0

7300

2.7

64.4

7400

3.1

67.9

7500

2.8

62.6

7600

2.6

60.7

7700

2.8

60.1

7800

2.8

55.6

7900

3.1

55.9

8000

3.6

59.4

8100

3.3

56.9

8200

3.1

59.1

8300

3.0

61.8

8400

1.9

56.9

8500

1.8

52.8


2.3 Radiation Pattern

 3D 2D-Horizontal 2D-Vertical
4900MHz UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm
6500MHz UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm
8500MHz UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm UWB antenna CH5 antenna CH9 antenna Wi-Fi 6E antenna 4.9-6G - 7G - 7.2G - 8.5G 7.5-8.5G antenna 4900-8500M folding rubber rod antenna UWB base station positioning antenna 10x109mm
