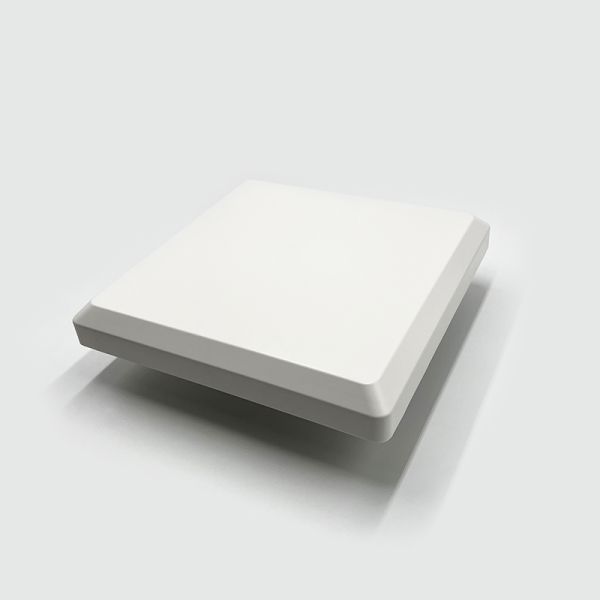

1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-12169-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
1427-1447MHz
VSWR :
<2.0
Peak Gain :
14dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 1427-1447MHz
S.W.R. <= 2.0
Antenna Gain 14dBi
Polarization H+V
Horizontal Beamwidth 35±5°
Vertical Beamwidth 30±5°
F/B >28dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type 2*N Female connector
Dimension 390*390*50mm
Radome material ABS
Weight 1.7Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna

2.2 Total Efficiency & Gain:


Port 1(H)

Port 2(V)

Frequency(MHz)

Gain(dBi)

Frequency(MHz)

Gain(dBi)

1427

13.9

1427

13.8

1430

13.9

1430

13.9

1435

14.0

1435

14.1

1440

13.9

1440

14.2

1445

13.8

1445

14.1

1447

13.8

1447

14.1



2.3 Radiation Pattern

Port1 -H 2D-Horizontal 2D-Vertical Horizontal & Vertical
1427MHz 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1435MHz 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1447MHz 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna



Port2-V 2D-Horizontal 2D-Vertical Horizontal & Vertical
1427MHz 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1435MHz 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
1447MHz 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna 1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
