Specifications
Brand Name :
Leenz
Model Number :
LZANT-10786-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
200per day
Delivery Time :
15 days
Frequency :
1300-1500MHz
VSWR :
<2.0
Peak Gain :
14dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 1300-1500MHz
S.W.R. <= 2.0
Antenna Gain 14dBi
Polarization ±45°
Horizontal Beamwidth 67-70°
Vertical Beamwidth 19-21°
F/B >25dB
Impedance 50Ohm
Max. Power 100W
B. Material & Mechanical Characteristics
Connector Type N-K connector
Dimension

550*230*40mm
Radome material ASA
Weight 3.1Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

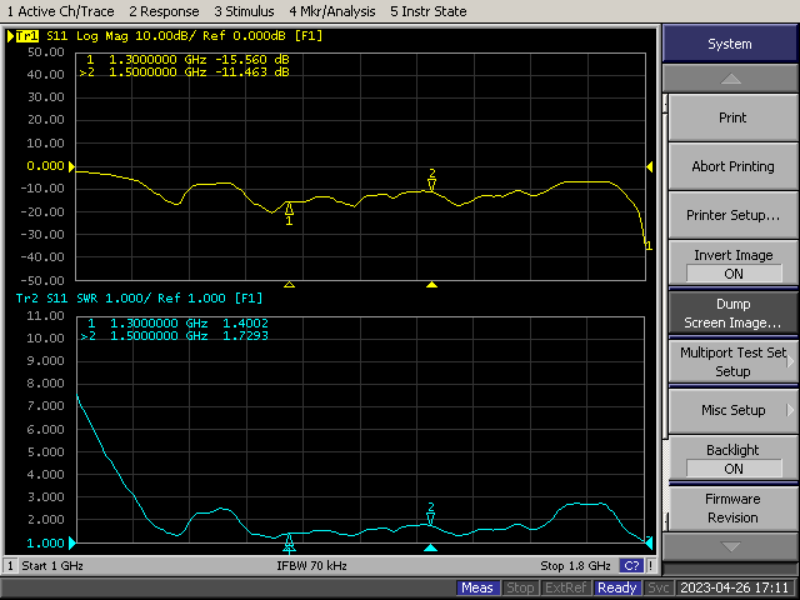

2.1 VSWR
1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

1300

14.0

1325

14.2

1350

13.5

1375

13.7

1400

13.5

1425

13.0

1450

12.9

1475

12.8

1500

13.2

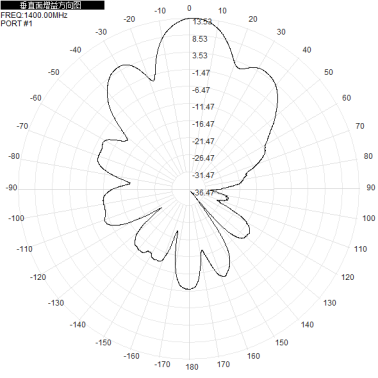

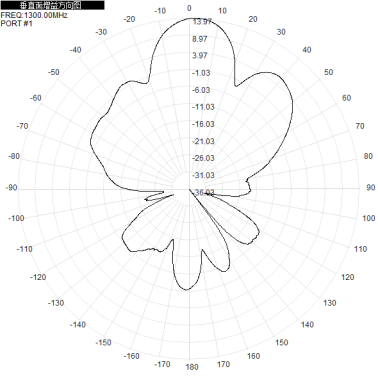

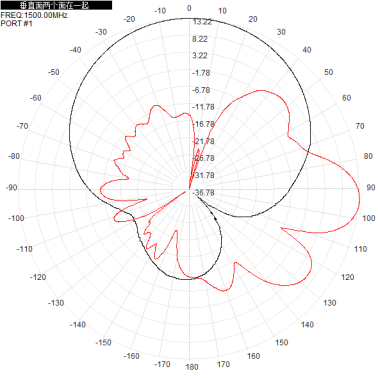

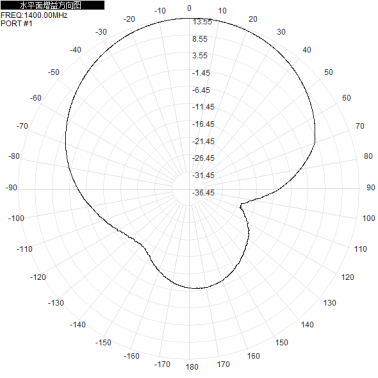

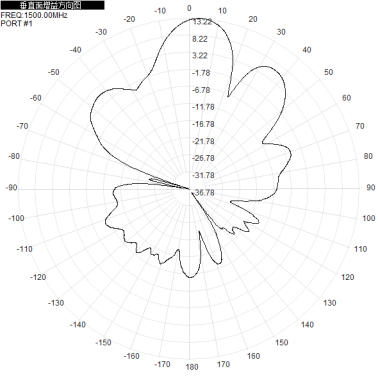

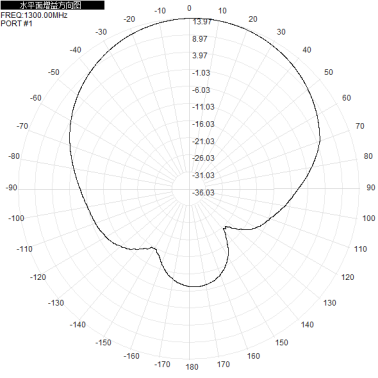

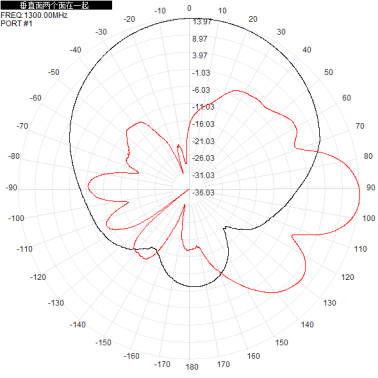

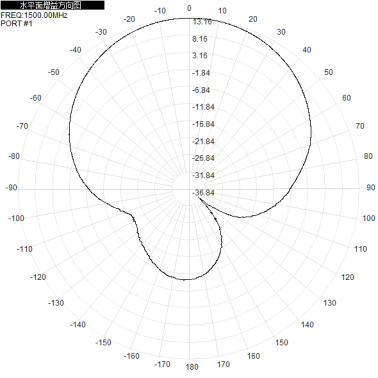

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
1300MHz 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm
1400MHz 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm
1500MHz 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm 1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm
