1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
Specifications
Brand Name :
Leenz
Model Number :
LZANT-12011-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500per day
Delivery Time :
15 days
Frequency :
1200-1300MHz
VSWR :
<2.0
Peak Gain :
8dBi
Impedance :
50
Description

1. Specification

A. Electrical Characteristics
Frequency 1200-1300MHz
S.W.R. <= 2.0
Antenna Gain 8dBi
Polarization v
Horizontal Beamwidth 68-73°
Vertical Beamwidth 65°
F/B >17dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension

210*180*45mm
Radome material ABS
Weight 0.37Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data

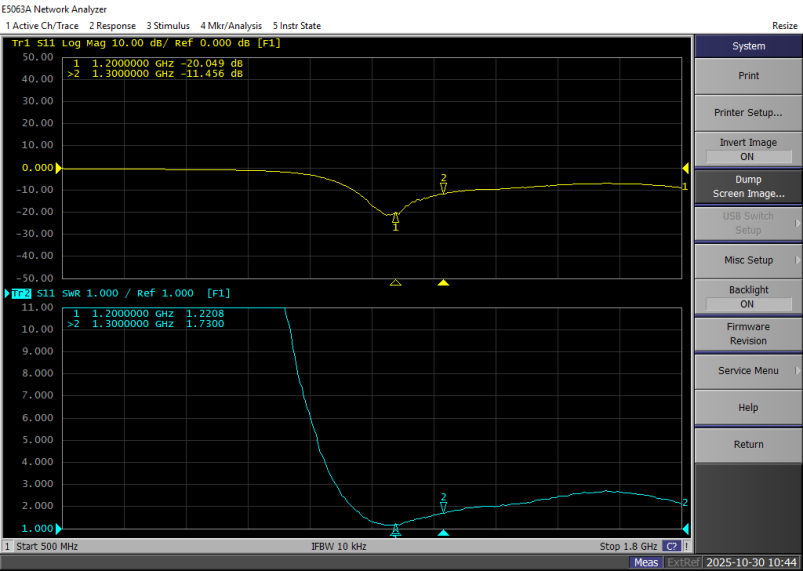

2.1 VSWR
1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm

2.2 Total Efficiency & Gain:

Frequency(MHz)

Gain(dBi)

1200

8.6

1210

8.7

1220

8.8

1230

8.7

1240

8.7

1250

8.6

1260

8.6

1270

8.4

1280

8.4

1290

8.4

1300

8.0

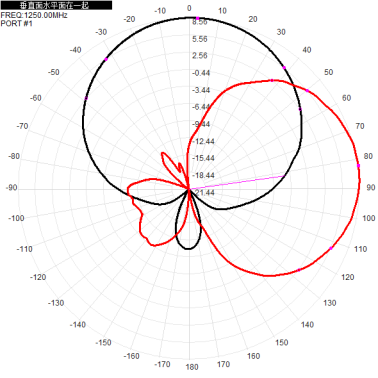

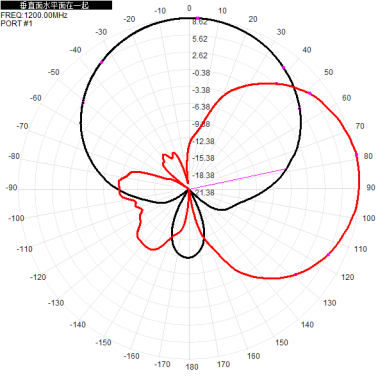

2.3 Radiation Pattern

Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
1200MHz 1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm 1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm 1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm

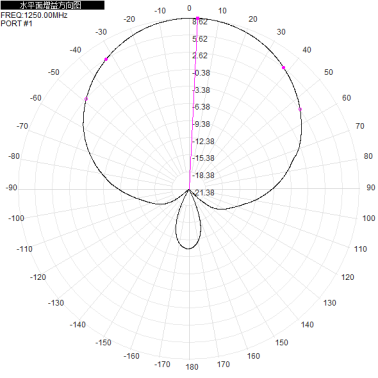

1250MHz 1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm 1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm 1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm

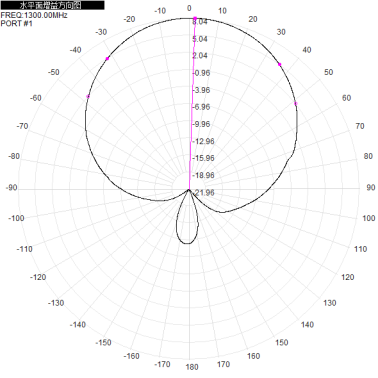

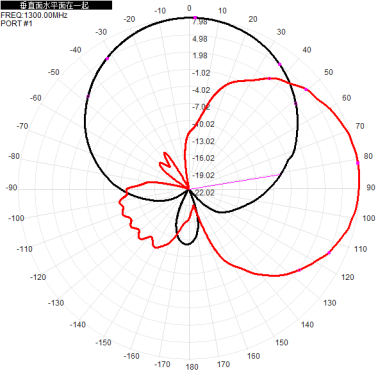

1300MHz 1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm 1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm 1.2G 1200-130M 8dbi Directional Panel Antenna for Unmanned Aerial Vehicle 218*180*45mm
