5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
Specifications
Brand Name :
Leenz
Model Number :
LZANT-10010-A
Certification :
RoHs
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
15 days
Frequency :
3300-3800MHz
VSWR :
<2.0
Peak Gain :
3dBi
Impedance :
50
Description

5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna

1. Specification

A. Electrical Characteristics
Frequency 3700-4200MHz
S.W.R. <2.0
Antenna Gain 3dBi
Polarization Vertical
Horizontal Beamwidth 360°
Vertical Beamwidth 61-69°
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N-K connector
Dimension φ86*40mm
Radome material ABS
Weight 0.1Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity

36.9m/s

2. Antenna - S Parameter Test Data

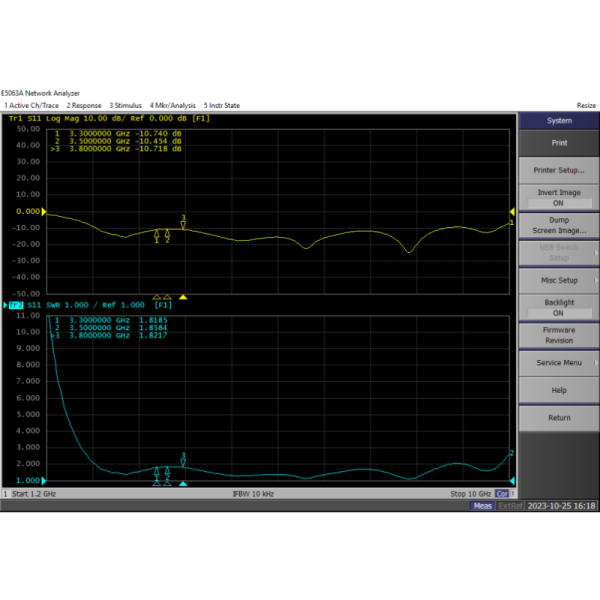

2.1 VSWR

5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna

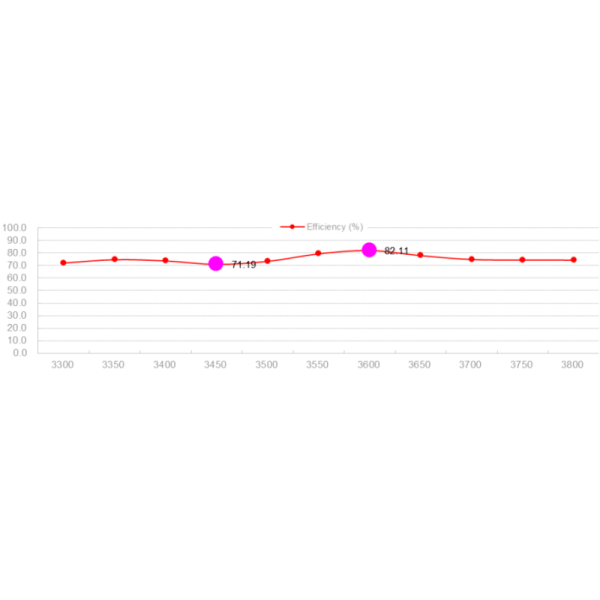

2.2 Total Efficiency & Gain:


Frequency(MHz)

3300

3350

3400

3450

3500

3550

3600

3650

3700

3750

3800

Gain (dBi)

1.9

2.0

2.0

1.8

1.9

2.3

2.7

2.8

2.9

3.0

2.9

Efficiency (%)

72.3

74.9

73.9

71.2

73.6

79.5

82.1

78.0

75.0

74.6

74.5
5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna




2.3 Radiation Pattern

Port1 3D 2D-Horizontal 2D- Vertical
3300MHz 5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna 5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna 5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
3550MHz 5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna 5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna 5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
3800MHz 5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna 5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna 5G N78 3.3-3.8G 3300-3800M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
